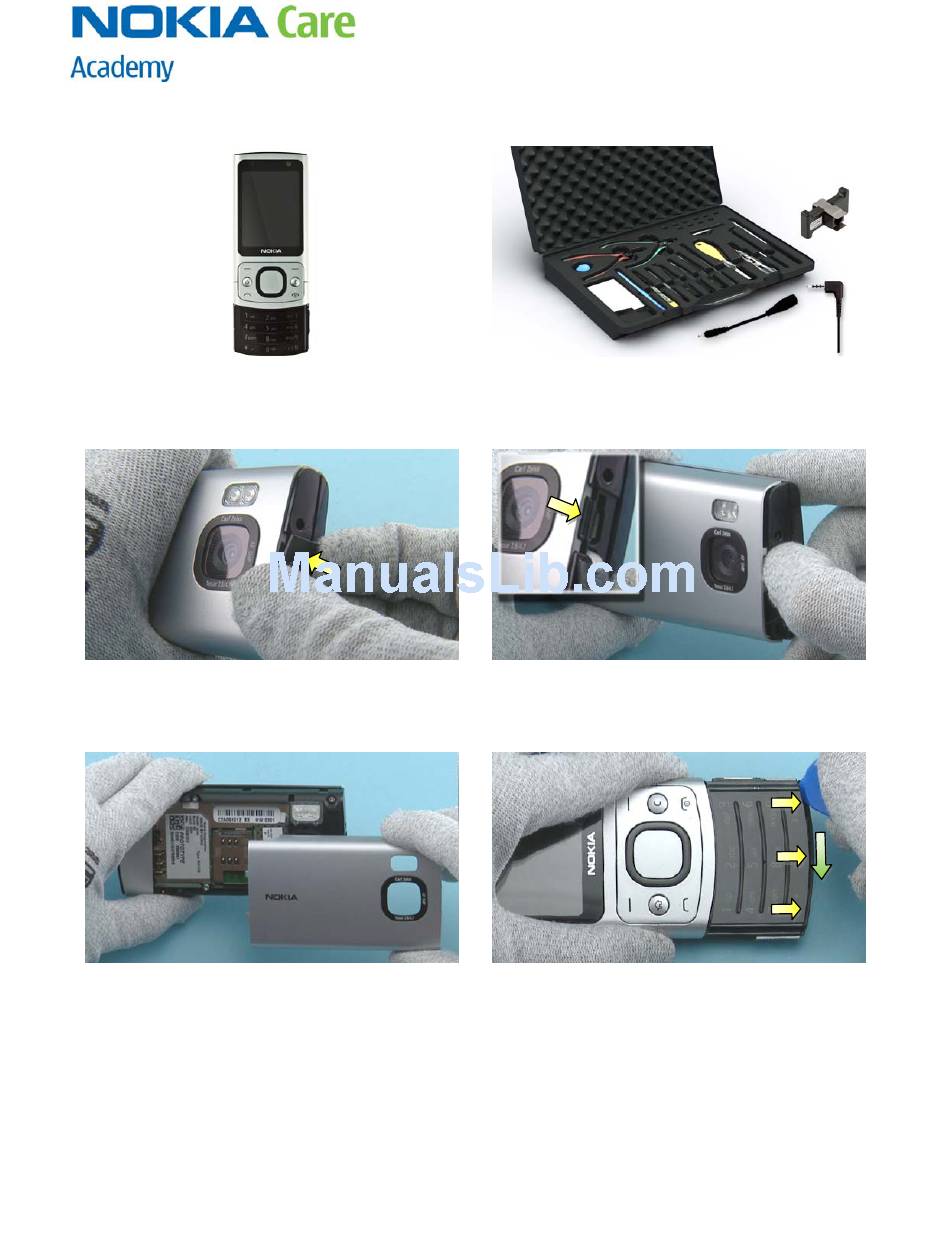

10. DISASSEMBLY INSTRUCTIONS

1) Nokia 6700 Slide disassembly.
3) To release the BATTERY COVER, open the USB
DOOR.
5) Remove the BATTERY COVER. If there is a BATTERY
inserted, remove it also.
12
2) For disassembling, you will need the Nokia
Standard Tool kit version 2. You will also need an AV
plug, a DC plug and a camera removal tool SS-210
version 2.
4) Then press the release button shown.
6) Slide the phone open. Detach the three shown
clips holding the MAIN KEYMAT ASSEMBLY by sliding
the SRT-6 in the direction shown.
