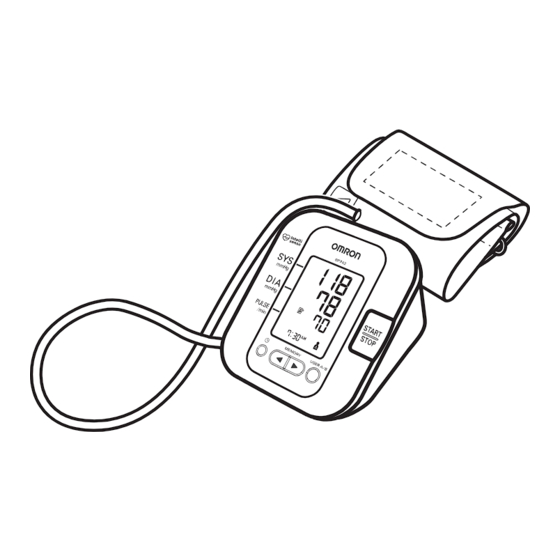

5 series blood pressure monitor

Advertisement

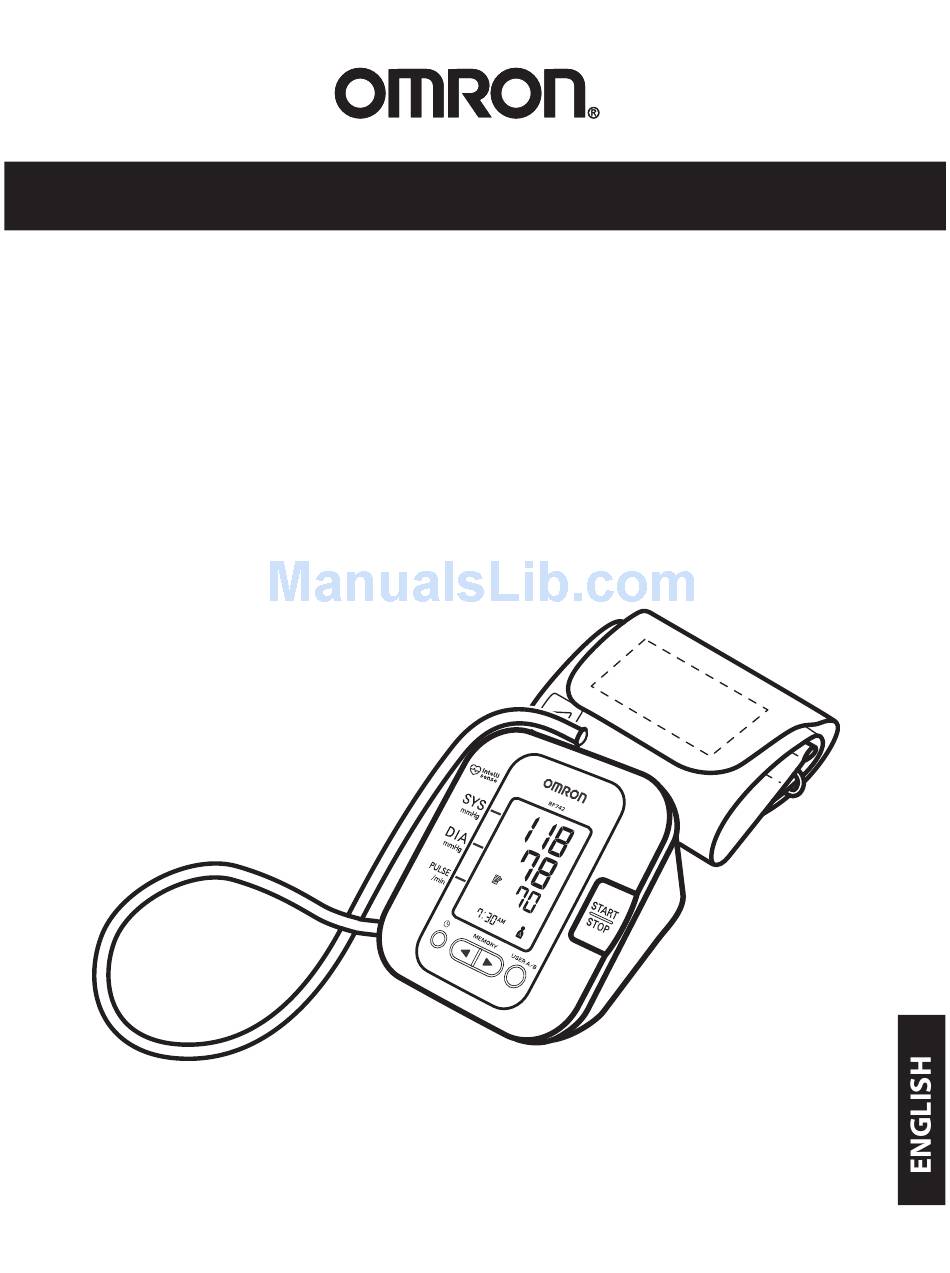

INSTRUCTION MANUAL
5 series
Blood Pressure Monitor
Model BP742CAN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP742CAN and is the answer not in the manual?

Questions and answers

Summary of Contents for Omron BP742CAN

  • Page 1 INSTRUCTION MANUAL 5 series Blood Pressure Monitor Model BP742CAN...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS Before using the Monitor Introduction ........................3 Safety Information ......................4 Intended Use....................4 Operating the Device .................. 4 Care and Maintenance ................5 Operating Instructions Before Taking a Measurement ..................6 Know Your Unit ......................7 Unit Display ........................
  • Page 3: Introduction

    • Monitor • Standard Adult Arm Cuff • 4 “AA” Alkaline Batteries • Instruction Manual printed in English and French • Quick Start Guide The BP742CAN 5 series Automatic Blood Pressure Monitor is intended for home use. Please read this instruction manual thoroughly before using the unit.
  • Page 4: Safety Information

    SAFETY INFORMATION INTENDED USE This product is designed to measure the blood pressure and pulse rate of people within the range of the designated arm cuff, following the instructions in this instruction manual. It is mainly designed for general household use. Please read the “Safety Information” in this instruction manual before using the unit.
  • Page 5: Care And Maintenance

    Unlawful disposal may cause environmental pollution. Do not use a cellular phone near the device. It may result in an operational failure. Use only Omron authorized parts and accessories. Parts and accessories not approved for use with the device may damage the unit.
  • Page 6: Before Taking A Measurement

    BEFORE TAKING A MEASUREMENT To ensure a reliable reading follow these recommendations: 1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for 30 minutes before taking a measurement. Rest for at least 15 minutes before taking the measurement. 2. Stress raises blood pressure. Avoid taking measurements during stressful times. 3.
  • Page 7: Know Your Unit

    KNOW YOUR UNIT Main Unit: Display Battery compartment START/STOP button Air Jack USER ID Selection Switch AC adapter Jack Up/Down ( ) buttons Date/Time setting ( button Components: Air tube Air plug Standard Adult Arm Cuff Instruction Quick Start Manual Guide...
  • Page 8: Unit Display

    UNIT DISPLAY Systolic blood pressure Diastolic blood pressure Heartbeat symbol / Memory symbol Hypertension Indicator (Displayed when viewing values stored in memory) Pulse display Average Value symbol Defl ation symbol Movement error symbol User ID symbol (A/B) Irregular Heartbeat symbol Battery low indicator Date/Time Display...
  • Page 9: Display Symbols

    DISPLAY SYMBOLS IRREGULAR HEARTBEAT SYMBOL ( When the monitor detects an irregular rhythm two or more times during the measurement, the Irregular Heartbeat Symbol ( ) will appear on the display with the measurement values. Normal Heartbeat An irregular heartbeat rhythm is defi ned as a Pulse rhythm that varies by less than 25% from the average rhythm or 25% more than the average...
  • Page 10: Using The Memory Function

    Self-diagnosis and treatment using measured results may be dangerous. Follow the instructions of your physician or licensed healthcare provider. Omron Healthcare recommends you contact your physician if the Heartbeat Symbol ) fl ashes on the display with your measurement values.
  • Page 11: Battery Installation

    BATTERY INSTALLATION CAUTION Use only 1.5V “AA” alkaline batteries with this device. 1. Press the indicator on the battery cover and slide the cover off in the direction of the arrow. 2. Install 4 “AA” size batteries so the + (positive) and - (negative) polarities match the polarities of the battery compartment as indicated.
  • Page 12: Battery Replacement

    BATTERY INSTALLATION BATTERY REPLACEMENT Low Battery Indicator When the Low Battery Indicator appears on the display, turn the monitor off and remove all the batteries. Replace with four new batteries at the same time. Long-life alkaline batteries are recommended. WARNING If battery fl...
  • Page 13: Setting The Date And Time

    SETTING THE DATE AND TIME Set the monitor to the current date and time before taking a measurement for the fi rst time. If the date and time are not set correctly, the measurement values stored in the memory and the average values may not be correct. 1.
  • Page 14 SETTING THE DATE AND TIME 3. SETTING THE MONTH Press the Up button ( ) to advance by one month. Press the Date/Time Setting button ( ) to set the current month. The day fl ashes on the display. 4. SETTING THE DAY Press the Up button ( ) to advance by one day.
  • Page 15: Applying The Arm Cuff

    APPLYING THE ARM CUFF CAUTION Read all of the information in the instruction manual and any other literature in the box before operating the unit. CAUTION This device is intended for use in measuring blood pressure and pulse rate in the adult population.
  • Page 16: Applying The Cuff On The Right Arm

    APPLYING THE ARM CUFF APPLYING THE CUFF ON THE RIGHT ARM When taking a measurement using the right arm, use this instruction for Step 3. Right Arm Apply the cuff to your right upper arm so the arrow and the air tube runs along the inside of your arm.
  • Page 17: Taking A Measurement

    TAKING A MEASUREMENT 1. Press the START/STOP button to turn the monitor on. All symbols appear on the display. 2. Select your USER ID (A or B). 3. Sit on a chair with your feet fl at on the fl oor. Place your arm on a table so the cuff is level with your heart.
  • Page 18: Special Conditions

    TAKING A MEASUREMENT 5. Infl ation stops automatically and the measurement is started. As the cuff defl ates, decreasing numbers appear on the display and the Heartbeat Symbol ( ) fl ashes. 6. When the measurement is complete, the arm cuff completely defl...
  • Page 19: Using The Memory Function

    USING THE MEMORY FUNCTION The monitor is designed to store the blood pressure and the pulse rate in the memory for two people (USER A and USER B) every time a measurement is completed. The monitor automatically stores up to 30 sets of measurement values (blood pressure and pulse rate) for each user (A and B).
  • Page 20: To Delete All Values Stored In The Memory

    USING THE MEMORY FUNCTION NOTES: • The measurement value number is displayed briefl y in the Pulse Display area when you press the Up/Down buttons ( • The date and time are alternately displayed with the measurement values. • If the date and time are not set, “-:--” is displayed with the measurement values.
  • Page 21: Care And Maintenance

    Use the unit in a manner consistent with the instructions provided in this manual. CAUTION Use only Omron authorized parts and accessories. Parts and accessories not approved for use with the device may damage the unit. CAUTION Changes or modifi...
  • Page 22: Error Indicators

    ERROR INDICATORS SYMBOL CAUSE CORRECTION Take another measurement and Monitor could not remain still until the measurement is detect pulse wave. complete. Cuff under-infl ated. Cuff not applied Remove the arm cuff. correctly. Read “Taking a Measurement”. Wait 2-3 minutes. Cuff over-infl...
  • Page 23: Troubleshooting Tips

    TROUBLESHOOTING TIPS PROBLEM CAUSES AND SOLUTIONS Replace all four batteries with new ones. No power. Check the battery installation for proper No display appears on the unit. placement of the battery polarities. Blood pressure varies constantly. Many factors including stress, time of day, how you wrap the Measurement values appear too cuff, may affect your blood pressure.
  • Page 24: Fcc Statement

    FCC STATEMENT Note: POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only) This product has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 25: Limited Warranty

    LIMITED WARRANTY Your BP742CAN 5 series Automatic Blood Pressure Monitor, excluding the arm cuff and batteries, is warranted to be free from defects in materials and workmanship appearing within 2 years from the date of purchase, when used in accordance with the instructions provided with the monitor.
  • Page 26: Specifi Cations

    SPECIFICATIONS BP742CAN (HEM-7200-CA) Model: LCD Digital Display Display: Pressure: 0 to 299 mmHg, Pulse: 40 to 180/min. Measurement Range: Pressure: ±3mmHg or 2% of reading Accuracy/Calibration: Pulse: ±5% of reading Automatic by electric pump Infl ation: Automatic pressure release valve Defl...
  • Page 27 Omron Healthcare, Inc. 1200 Lakeside Drive Bannockburn, IL 60015 www.omronhealthcare.ca Copyright © 2010 Omron Healthcare, Inc. 5330254-2A Made in China...
