Summary of Contents for STK Professional Audio SPM-122AP

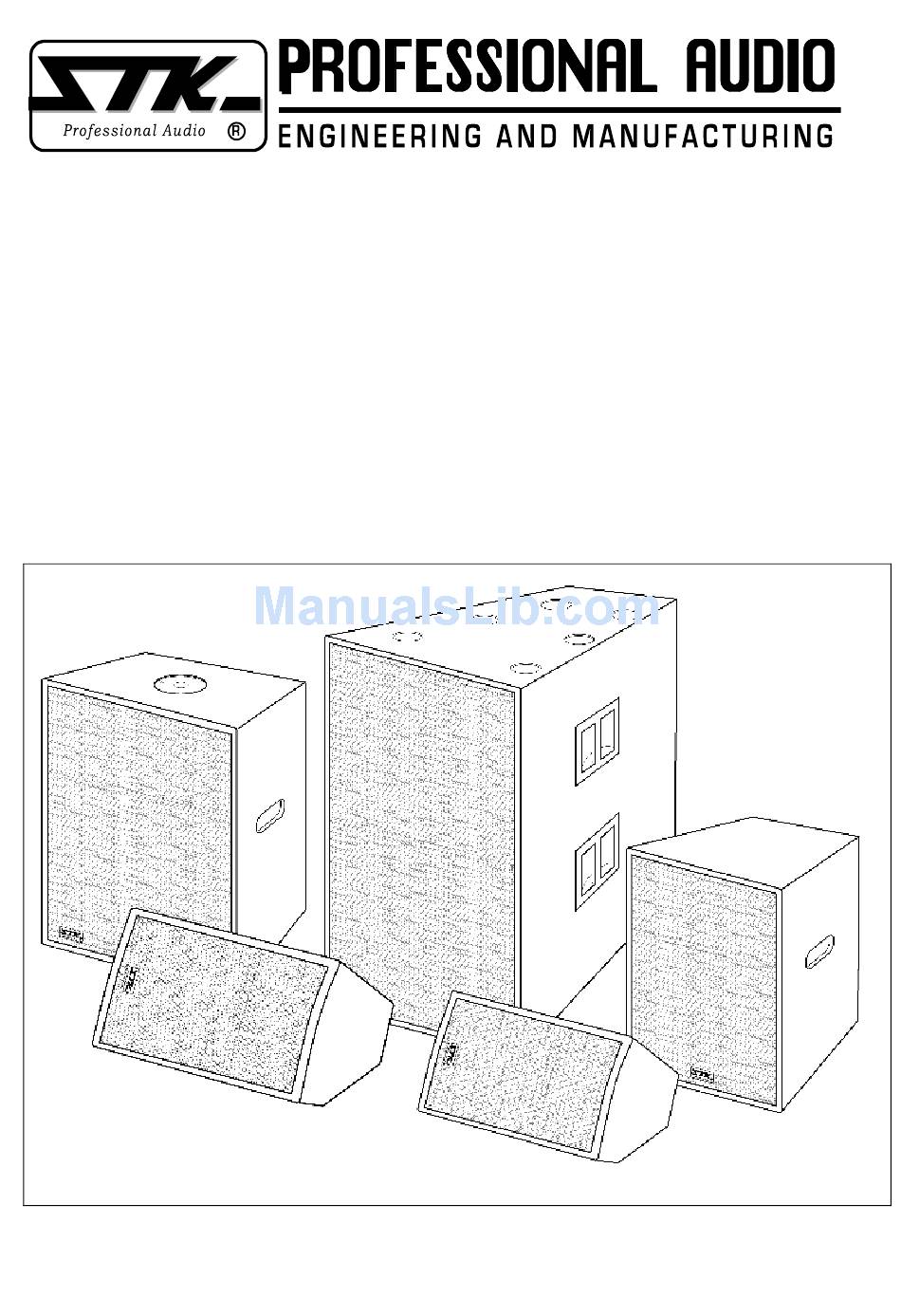

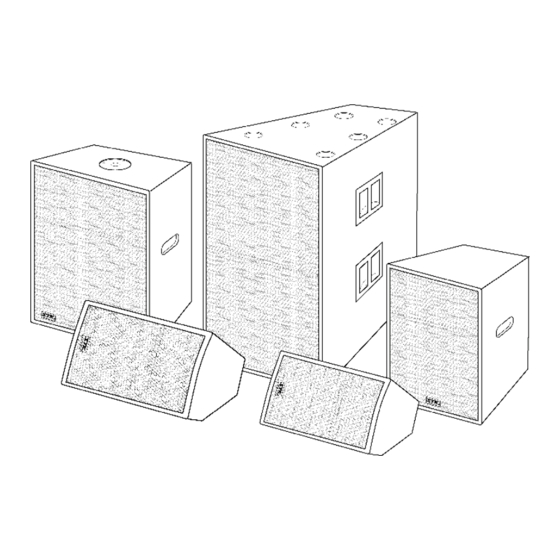

- Page 1 Active. SPEAKER SYSTEMS SPM-122AP/152AP/155AP OWNER'S MANUAL ENGLISH...
-
Page 2: Important Safety Instructions
10. Power Cord Protection- Power supply cords should be routed so please contact: that they are not likely to be walked on or pinched by items placed Customer Service Dept., The STK Professional Audio. upon or against them, paying particular FOR YOUR RECORDS... -
Page 3: Table Of Contents
SPM-122AP/152AP/155AP Table Of Contents 1 Important Safety Instructions..........2 2 Introduction................3 3 Panel Description..............4-5 4 Placement Tips & Hum............6 5 Block Diagram................. 7 6 Specifications................. 8 Introduction Thank you for choosing STK sound reinforcement speaker systems. STK active speakers are constituted two passive system and two active systems. -
Page 4: Panel Description
Panel Description SPM-122AP/152AP Easy Start For Active Speakers 1. Mic Input.(-50dBu) This is female XLR-type connector that accept microphone. Start with the following setting on the back of the active speakers. 2. Line In.(-10dBu) 1/4" unbalanced phone input connector that accept 1.Turn the level control down(counter clock wise) before use. - Page 5 Panel Description SPM-155AP 1. Mic Input.(-50dBu) This is female XLR-type connector that accept microphone. 2. Line In.(-10dBu) 1/4" unbalanced phone input connector that accept line input signal. XLR INPUT is balanced input connector 3. Tape/CD Input This stereo RCA jack is used for playback of tape machines and CD input that contain a preamp(such as an electronic keyboard) 4.
-
Page 6: Placement Tips & Hum
Placement Tips & Hum Placement Tips *Avoid placing loudspeaker into the corners of a room. *Turn the LEVEL control all the way down. If the noise disappears, it's coming from the signal This increases the low-frequency output and can cause the sound to be muddy and indistinct. -
Page 7: Block Diagram
Block Diagram SPM-122AP/152AP/155AP... -
Page 8: Specifications
General Specifications SPM-122AP/152AP/155AP ※ INPUT SECTION INPUT LEVEL CONNECTOR Sensitivity MIC IN(CH1) -50dBu XLR JACK CD/TAPE (CH2) 0dBu STEREO RCA LINE IN (CH2) -10dBu 1/4" TRS PHONE JACK,XLR BALANCED LINE OUT -0dBu(BAL)/-10dBu(Unbal) XLR BALANCED ,1/4" TS PHONE JACK 3 BAND EQUALIZER... - Page 9 Notes - 9 -...
- Page 10 Notes - 10 -...
- Page 11 Notes - 11 -...
- Page 12 Owner's Manual For The STK Active Speaker Systems Printed In Korea STK-Professional Audio 11/07 - 12 -...
