4 Port Cable/DSL Broadband Router
Article: CNP-BR1

Package Contents

CANYON CNP-BR1 Main Unit
1.
Power Adapter
2.
Documentation CD
3.

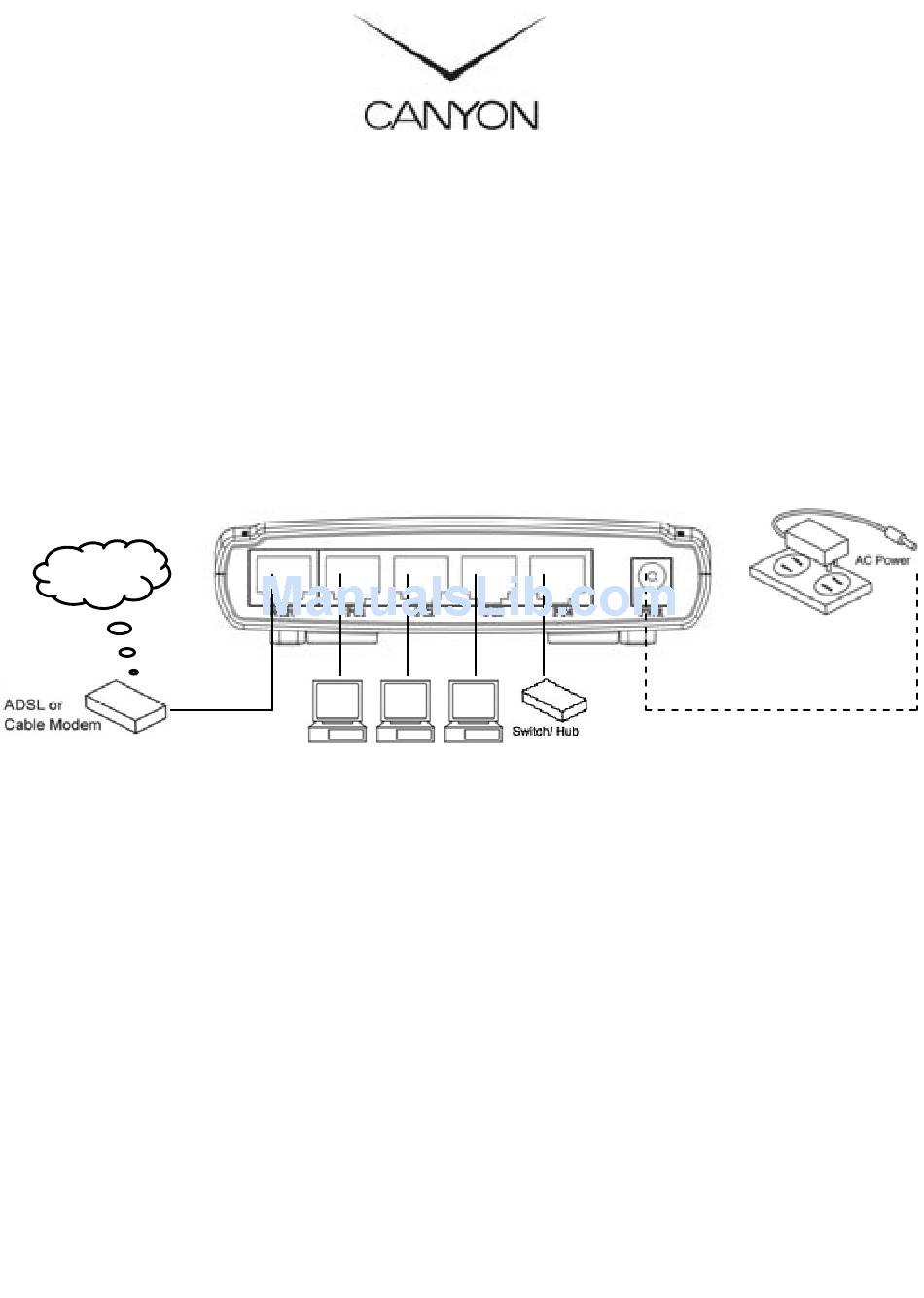

Hardware Overview

Internet

Getting Started

Connecting to Device

1.
Make sure that all network devices are powered off, including the
device itself, PCs, switches, cable or DSL modem, and other
peripherals.
2.
Connect the modem to WAN port of the device by one CAT 5
Ethernet cable.
3.
Connect PC(s) with the LAN ports (PC1/PC2/PC3/PC4) of the device
by CAT 5 Ethernet cables. One PC connects to only one port using
one cable.
4.
Power on the cable or DSL modem.
5.
Plug in the power of the device. The Power status indicator at the
front panel of device will light up as soon as the power adapter is
connected properly.
6.
Power on PC(s).
Quick Guide v1.0
ENG - 1
Quick Guide
4.
Warranty Card
5.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CNP-BR1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Canyon CNP-BR1

Summary of Contents for Canyon CNP-BR1

  • Page 1: Package Contents

    4 Port Cable/DSL Broadband Router Quick Guide v1.0 Article: CNP-BR1 Package Contents CANYON CNP-BR1 Main Unit Quick Guide Power Adapter Warranty Card Documentation CD Hardware Overview Internet Getting Started Connecting to Device Make sure that all network devices are powered off, including the device itself, PCs, switches, cable or DSL modem, and other peripherals.
  • Page 2 Internet Configuration Wizard The default network address of the device is set as 192.168.1.1. Please configure IP address of host PC at 192.168.1.XXX where XXX is a number between 002 and 254. The subnet mask should be 255.255.255.0. Please follow below steps to enter web browser management mode. Open a browser (Internet Explorer browser only) and type in “192.168.1.1”...
  • Page 3 Select Connection Type Select 1 of 4 connection types instructed by ISP or network admin. Click on Next to continue or Prev to go back to previous page. Click on Exit to exit. DHCP Connection Type in Host Name and Domain Name provided from ISP or network administrator.
  • Page 4 PPPoE Connection Type in PPPoE Account and PPPoE Password provided from ISP. Click on Next to continue or Prev to go back to previous page. Click on Exit to exit. Static IP Connection Type in IP Address, Subnet Mask, Gateway, Primary DNS, and Secondary DNS provided from ISP.
  • Page 5 PPTP Connection Type in User Name, Password, and Server IP Address provided from ISP. Select IP assignment method as instructed by ISP. Click on Next to continue or Prev to go back to previous page. Click on Exit to exit. Installation Completed Click on Exit to finish Internet Configuration Wizard.
