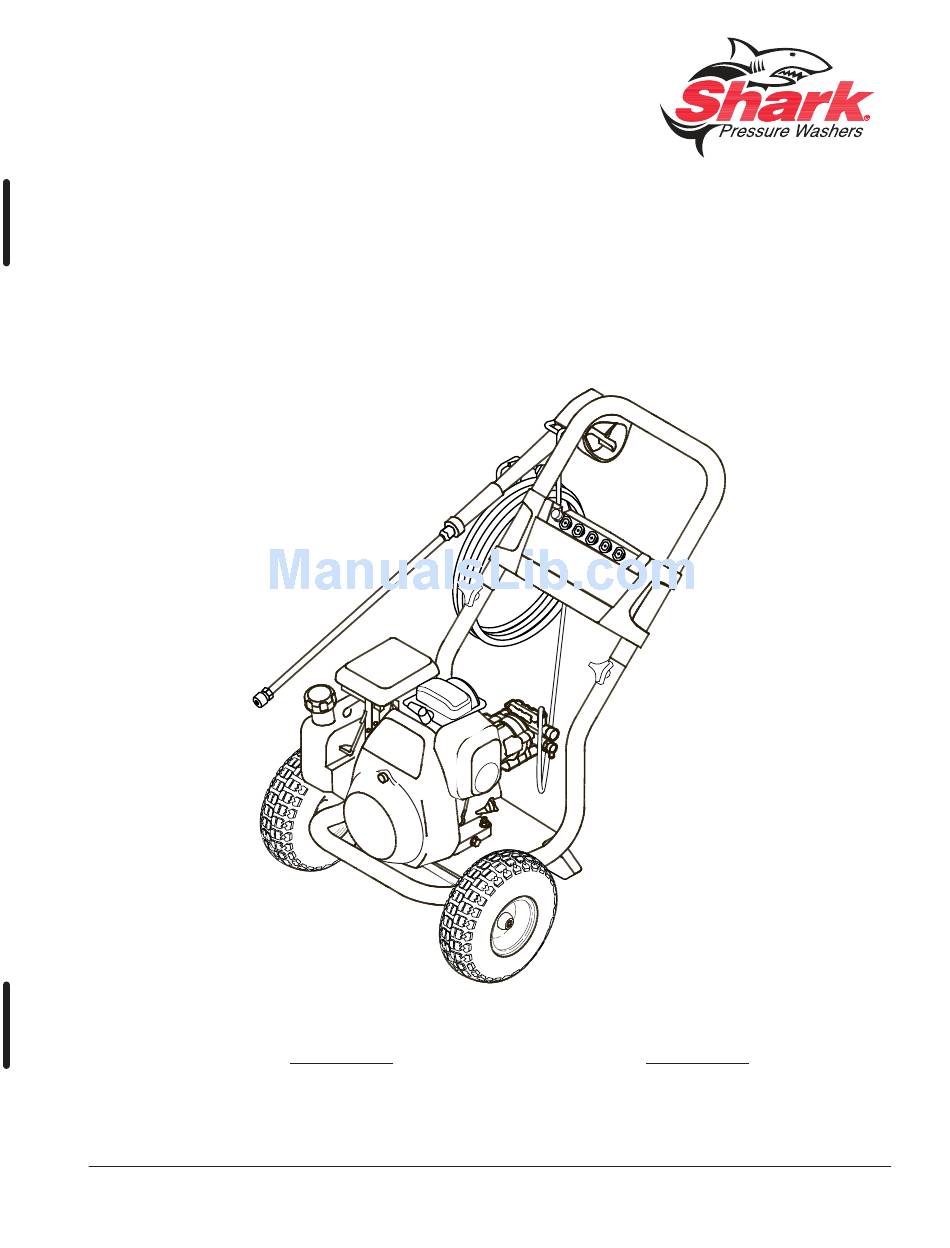

- Page 1 OPERATOR’S MANUAL MODEL # ORDER # RG-253037 1.107-236.0 To locate your local Shark Commercial Pressure Washer Dealer nearest you, visit www.shark-pw.com 9.801-592.0...
-
Page 3: Table Of Contents
CONTENTS Important Safety Information ..............4-6 Component Identification ................. 7 Assembly Instructions ................8 Operating Instructions.................9-10 Detergent and General Operating Techniques ........11 Shut Down and Clean-Up ..............12 Storage ....................12 Troubleshooting ................13-14 Preventive Manteinance ................ 15 Hose and Spray Gun Assembly and Parts list ........16 Oil Change Record ................ -
Page 4: Important Safety Information
INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing this Pressure Washer. WARNING: This machine exceeds WARNING 85 db appropriate ear protection We reserve the right to make changes at any time must be worn. without incurring any obligation. Owner/User Responsibility: The owner and/or user must have an understanding of the manufacturer’s operating instructions and warnings EAR PROTECTION... -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Gasoline engines on mobile or portable equipment WARNING: Grip cleaning wand WARNING shall be refueled: securely with both hands before starting. Failure to do this could a. outdoors; result in injury from a whipping b. with the engine on the equipment stopped; wand. - Page 6 IMPORTANT SAFETY INFORMATION WARNING: Be extremely careful WARNING when using a ladder, scaffolding or any other relatively unstable location. The cleaning area should have adequate slopes and drainage to reduce the pos- sibility of a fall due to slippery RISK OF INJURY FROM FALLS WHEN USING surfaces.
-
Page 7: Component Identification
COMPONENT IDENTIFICATION Garden Hose (not included) Spray Gun High Pressure Inlet Hose Screen Trigger Detergent Bucket (not included) Pump Pressure Detergent Nozzle Injector Pump Protector Starter Grip Dipstick Pump — Develops high pressure. Pump Protector — Cycles fresh cool water through pump when recirculating water reaches 140°F. -
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Gun & Alignment Hose Holes Knob Hanger Handle Bolt Frame Assy. STEP 1: Attach the handle to the STEP 2: Insert the carriage bolt STEP 3: Attach the Gun & hose frame of the pressure washer. Note: through the holes from the back of hanger and insert nuts from inside. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Oil Dipstick CAUTION! Engine Shipped without oil. Before starting engine, fill with oil included. Do not over-fill. STEP 1: Check engine oil level. Oil level should be level with the bottom of the oil filler neck. Be sure the machine is level when checking the oil level. - Page 10 OPERATING INSTRUCTIONS STEP 9: Pull the starter grip. If the engine fails to start after 2 pulls, squeeze the trigger gun to release pres- sure and repeat step. Return starter gently. After the engine warms up enough to run smoothly, move choke to run position and throttle to fast position.
-
Page 11: Cleaning Tips
DETERGENT AND GENERAL CLEANING TECHNIQUES WARNING: Some detergents THERMAL PUMP PROTECTION WARNING may be harmful if inhaled or If you run the engine on your pressure washer for ingested, causing severe nau- 1-2 minutes without pressing the trigger on the spray sea, fainting or poisoning. -
Page 12: Storage
SHUTTING DOWN AND CLEAN-UP On-Off Switch STEP 1: Remove detergent suc- STEP 3: Turn off water STEP 2: Turn off the engine. tion tube from container and insert supply. into one gallon of fresh water. Slide nozzle forward for low pressure or to connect black detergent nozzle. -
Page 13: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Insufficient water supply. Closed Use larger garden hose; clean inlet water PRESSURE faucet. Inlet hose kinked screen. Open faucet. Clogged inlet hose strainer Check plumbing system for leaks. Retape leaks with teflon tape. Faulty or mis-adjusted unloader Adjust unloader for proper pressure. - Page 14 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION ENGINE OPERATES Not enough gas or engine oil Fill tank with gas. Check oil level. FOR 15 MINUTES Vapor lock developed by heat of day Keep gas tank full to avoid vapor locking. THEN STOPS Obstruction in fuel filter Clean or replace fuel filter.
-
Page 15: Preventative Maintenance
PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventa- tive maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. -
Page 16: Hose & Spray Gun Assembly
HOSE & SPRAY GUN ASSEMBLY HOSE & SPRAY GUN ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION 8.753-423.0 HOSE, HP DN6 25 FT, 3600PSI M22 9.112-012.0 AL BIT101 TRIGGER GUN 9.112-533.0 Lance-AL Quick Connect-Male 3000 psi 9.104-024.0 QUICK CONNECT NOZZLE KIT (030) 9.801-592.0 •... -
Page 17: Oil Change Record
OIL CHANGE RECORD Check engine oil level before first use of your new pressure washer. Estimated Operating Estimated Operating Date Oil Changed Hours Since Last Date Oil Changed Hours Since Last Month/Day/Year Oil Change Month/Day/Year Oil Change 9.801-592.0 • RG • Rev. 02/14... - Page 19 Form #9.801-592.0 • RG • Revised 02/14 • Printed in U.S.A. or Mexico...
