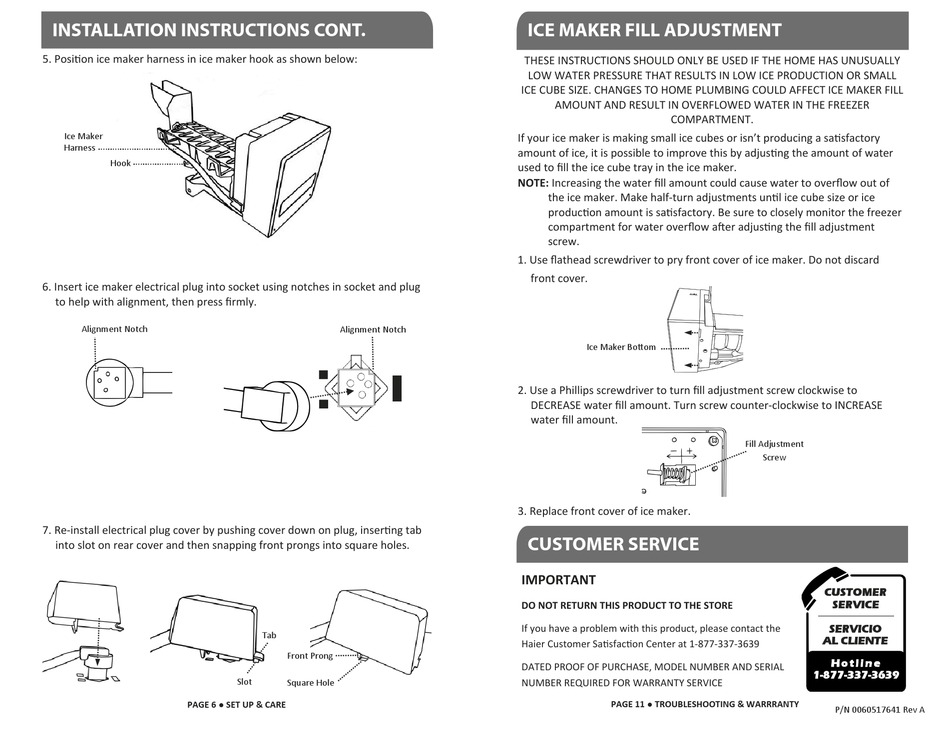

INSTALLATION INSTRUCTIONS CONT.
5. Posi on ice maker harness in ice maker hook as shown below:
Ice Maker
Harness
Hook
6. Insert ice maker electrical plug into socket using notches in socket and plug
to help with alignment, then press firmly.
Alignment Notch
7. Re‐install electrical plug cover by pushing cover down on plug, inser ng tab
into slot on rear cover and then snapping front prongs into square holes.
PAGE 6 ● SET UP & CARE
Alignment Notch
Tab
Front Prong
Slot
Square Hole

ICE MAKER FILL ADJUSTMENT

THESE INSTRUCTIONS SHOULD ONLY BE USED IF THE HOME HAS UNUSUALLY
LOW WATER PRESSURE THAT RESULTS IN LOW ICE PRODUCTION OR SMALL
ICE CUBE SIZE. CHANGES TO HOME PLUMBING COULD AFFECT ICE MAKER FILL
AMOUNT AND RESULT IN OVERFLOWED WATER IN THE FREEZER
COMPARTMENT.
If your ice maker is making small ice cubes or isn't producing a sa sfactory
amount of ice, it is possible to improve this by adjus ng the amount of water
used to fill the ice cube tray in the ice maker.
NOTE: Increasing the water fill amount could cause water to overflow out of
the ice maker. Make half‐turn adjustments un l ice cube size or ice
produc on amount is sa sfactory. Be sure to closely monitor the freezer
compartment for water overflow a er adjus ng the fill adjustment
screw.
1. Use flathead screwdriver to pry front cover of ice maker. Do not discard
front cover.
Ice Maker Bo om
2. Use a Phillips screwdriver to turn fill adjustment screw clockwise to
DECREASE water fill amount. Turn screw counter‐clockwise to INCREASE
water fill amount.
3. Replace front cover of ice maker.
CUSTOMER SERVICE
IMPORTANT
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have a problem with this product, please contact the
Haier Customer Sa sfac on Center at 1‐877‐337‐3639
DATED PROOF OF PURCHASE, MODEL NUMBER AND SERIAL
NUMBER REQUIRED FOR WARRANTY SERVICE
PAGE 11 ● TROUBLESHOOTING & WARRRANTY
Fill Adjustment
Screw
