Summary of Contents for Agri Alert WM3000

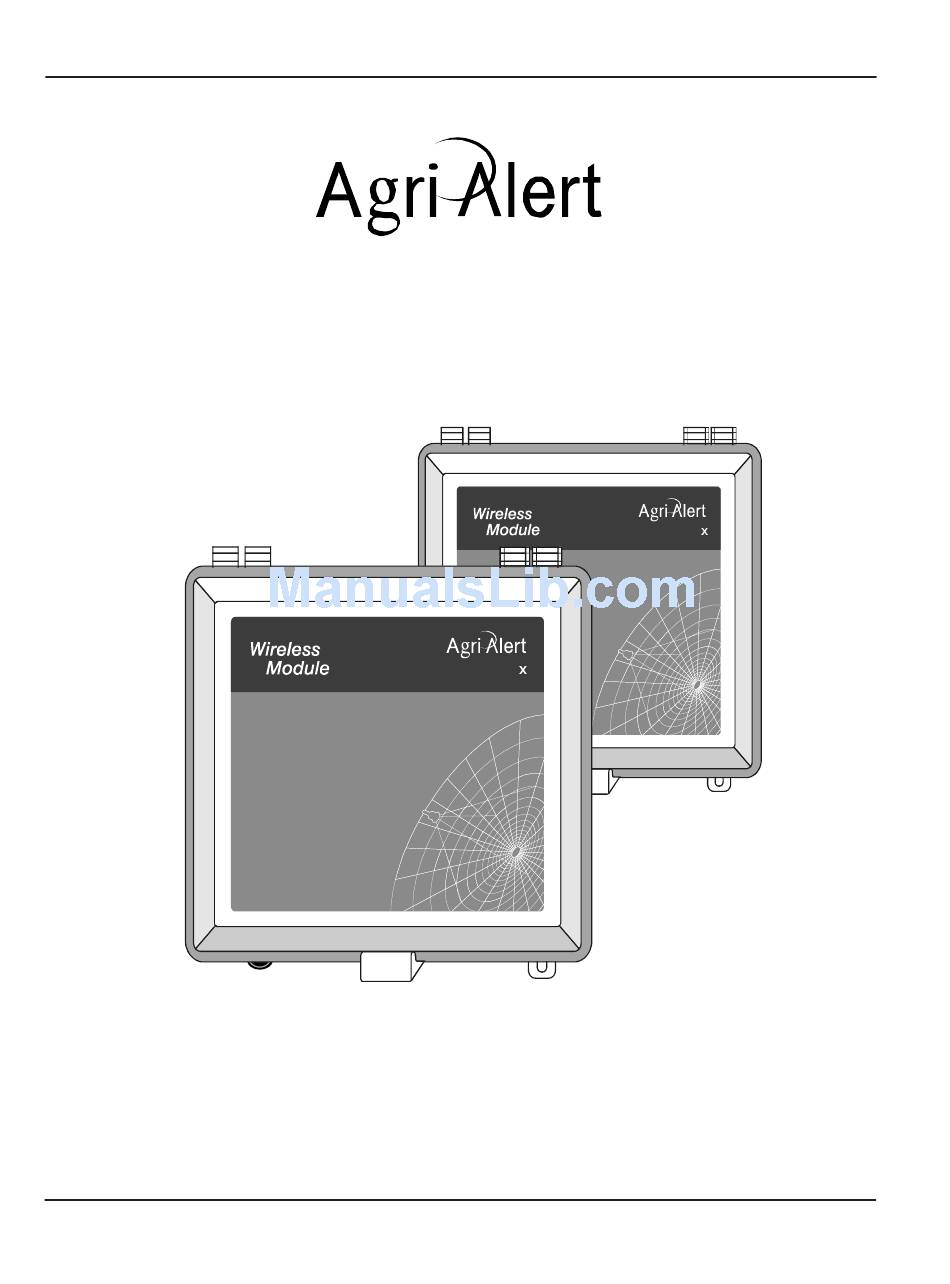

- Page 1 WM3000 WIRELESS MODULES 66XH"ÃS 66XH"ÃU INSTALLATION INSTRUCTIONS...
- Page 2 This device complies with Part 15 of the FCC rules, operation of this device is subject to the following conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation. AA-WM3000 rev.02...
- Page 3 2. Check that the on/off switch (Fig.1, #2) of the receiver is in the “off” position. 3. Connect the 12vdc power cord supplied with the receiver, to the fused Aux. 12 volt dc supply in the Agri Alert. Be careful to observe the correct polarity when making the connections.
- Page 4 The recognition time is the time an alarm input must be active before it constitutes a valid alarm condition. To set this delay, place the Recognition Time jumper at the right position on the circuit board of the transmitter: 0 or 30 seconds. 0 second 30 seconds AA-WM3000 rev.02...
- Page 5 AA-WM3000 Testing 1. Be sure that the Agri Alert is powered up and that the appropriate zones are activated. 2. Turn on the receiver by pushing the on/off switch (Fig.1, #2) to the “on” position. The red LED light should now be on. (Fig.1, #11) 3.
-
Page 6: Important Notes
Use discretion when choosing wireless alarm transmission over hardwired sys- tems. Due to the inherent risks of using wireless battery operated equipment, the customer must be aware of, and willing to accept the limitations involved with this equipment. AA-WM3000 rev.02... -
Page 7: Technical Specifications
AA-WM3000 Alarm Signals The WM300Tx sends an alarm signal to the WM3000Rx (and the Agri Alert) when one of the two following situations occurs: Relay Activation When the device connected to the input terminals of the transmitter is activated (the normally open contact closes), the WM3000Tx waits for the Recognition Time and then sends an alarm signal to the WM3000Rx (and the Agri Alert). -
Page 8: Wiring Diagram
Wiring Diagram Dip switches [Receiver] On-Off switch [Receiver] ANTENNA Power cord connector [Receiver] Channel relay outputs [Receiver] Dip switches 1-8 [Transmitter] Dip switches 9-10 [Transmitter] Recognition time jumper [Transmitter] CH 1 CH 2 CH 3 CH 4 Input terminals [Transmitter] Battery holder [Transmitter] CHANNEL 1...
