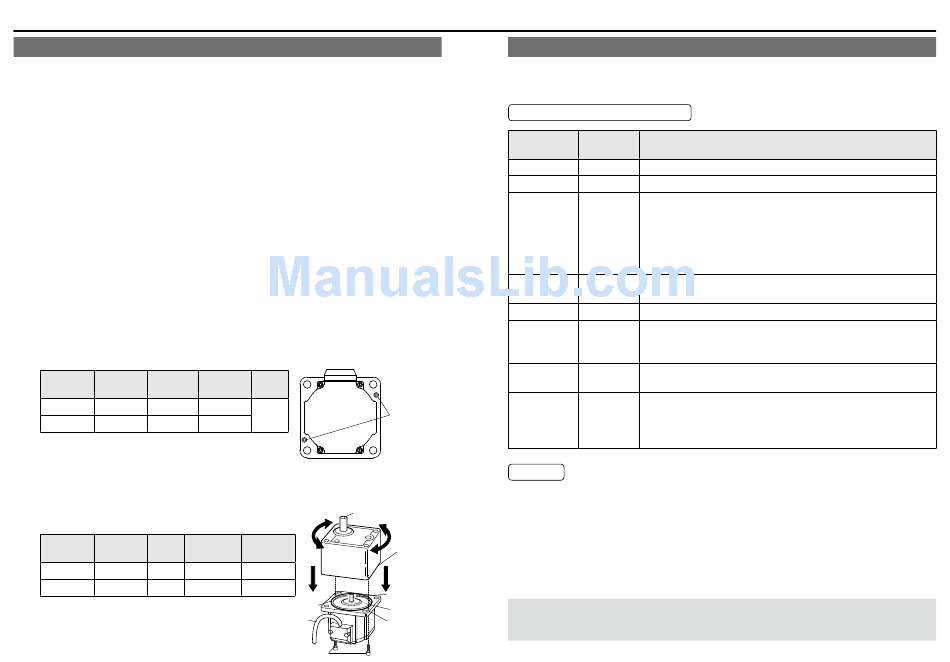

Assembling of gear head

Assembling of gear head
• Preparation for assembling
[1] Gear head applicable to the motor described in this instruction manual is MB8G □ BV
(for 50W) and MB9G □ BV (for 90 W and 130 W). Never use a combination of gear
heads other than applicable ones. Failure to observe this instruction will result in
malfunction.
[2] Make sure that O-ring is attached to the bottom of spigot joint.
When the gear head is assembled with O-ring floating, it may result in grease leakage.
[3] When grease adheres to the end surface of gear head, wipe off clean.
If the gear head is assembled with grease adhered, it may cause grease to exude.
• Assembling
[1] Direct the motor pinion upward, and make sure that the relation between direction of
motor lead wire and output shaft matches with the equipment.
[2] Turn the motor pinion finely clockwise and counterclockwise for assembling, ensuring
that the tip of motor pinion does not hit the tooth of gear head.
<Information>
MB type gear head is provided with temporary assembling screw (two hexagon sock-
et head bolt). Before installing the equipment, assemble the motor and gear head
temporarily, which will ensure stable installation of the equipment. In installing to the
equipment, be sure to use four "mounting screws" attached to the gear head for se-
cure installation.
[Recommended tightening torque for temporary assembling]
Gear head Screw
Size
type size
80 mm sq. MB8G M2.6
90 mm sq.
MB9G M3
[3] When installing the motor and gear head to the mating equipment, use "mounting
screws" attached to the gear head, tighten them sufficiently to eliminate clearance
between the motor flange surface and gear head spigot joint while paying attention to
bite of O-ring.
Recommended tightening torque is shown below:
Gear head Screw Tightening
Size
type size
80 mm sq. MB8G M6
90 mm sq.
MB9G M8
• Assemble with motor pinion faced up.
• Outward direction of motor leadwire can be
aligned with any one of 4 sides of gear head
with an output shaft at a different position.
Tightening Screw
torque length
0.5 N ・ m
12 mm
0.8 N ・ m
Output shaft
Attachment
torque pitch
2.9 N ・ m 94 mm
7.8 N ・ m 104 mm
O-ring
Leadwires
Temporary
assembling screw
－ 30 －

Maintenance/ Inspections

Maintenance/ Inspections
Routine maintenance and inspection are essential for proper and satisfactory operation of
the motor.
Maintenance/ Inspection item
Maintenance/
Check item
Input voltage
Input current
Insulation
resistance
Noise
Vibration
Grease
leakage
Installation
bolt
Use
Temporary
assembling
environment
screw
Caution
• Power-on/off operations should be done by the operators themselves for ensuring safety
in checking.
• Do not touch the motor while it is running or immediately after it stops because it gets hot
and stays hot for a while after power has been turned off.
• When testing the insulation resistance of the brushless amplifier with the megger, discon-
Faucet
portion
nect the amplifier from all associated devices. Performing megger testing without first
end face
disconnecting these devices will cause failure.
Motor pinion
Faucet face
Flange face
be sure to contact our service department or the sales agent of purchase.
Inspection
procedure
Voltmeter Must be within ±10% of rating.
Ammeter Must be within rated input current described on nameplate.
The resistance of motor should be 1 MΩ or higher when tested
with a 500 V megger.
Insulation
Measuring position:
resistance
Between power input line (L1, L2,L3) and grounding wire
tester
Brushless motor:
Across phase (U, V, W) and ground terminals
Noise level must not be different from the usual level. In addition,
Hearing
abnormal noise such as rumbling noise must not be heard.
By hand Free from abnormal vibration.
Check that circumference of the motor and gear head are free
Visual check from oil and grease.
If grease leakage will cause problem, use grease sealing cover.
Torque Check for loosening of bolt, and tighten additionally as
wrench necessary.
Check the ambient temperature and humidity, and make sure
that dirt, dust, or foreign substance is not found.
By sight
Check the waste thread etc don't attached to the windhole of
brushless amplifier.
When disassembly, troubleshooting, etc., is needed,
－ 31 －
