CONDENSATE DRAINAGE

The indoor unit is fitted with a condensate drain pipe, to
which a drainage hose (ø inside 16 mm) should be connec-
ted leading to a suitable drainage outlet.
- Fasten the condensate drain pipe to the refrigerant pipes
with adhesive tape whenever the lines cross through a
wall; this is to prevent the condensate drain pipes from
being flattened. Fig.(17) - Fig.(18).
- In the summer mode of operation, check that the conden-
sate is flowing out regularly.
The drainage pipe should have a 2° slope down
towards the drain; it should never slope upwards.
Check all the joints for leaks.
Apply thermal insulating material to the joints. Fig.(19).
- The condensate drain pipe should be inserted onto the
coupling located on the bottom left part of the indoor unit.
English

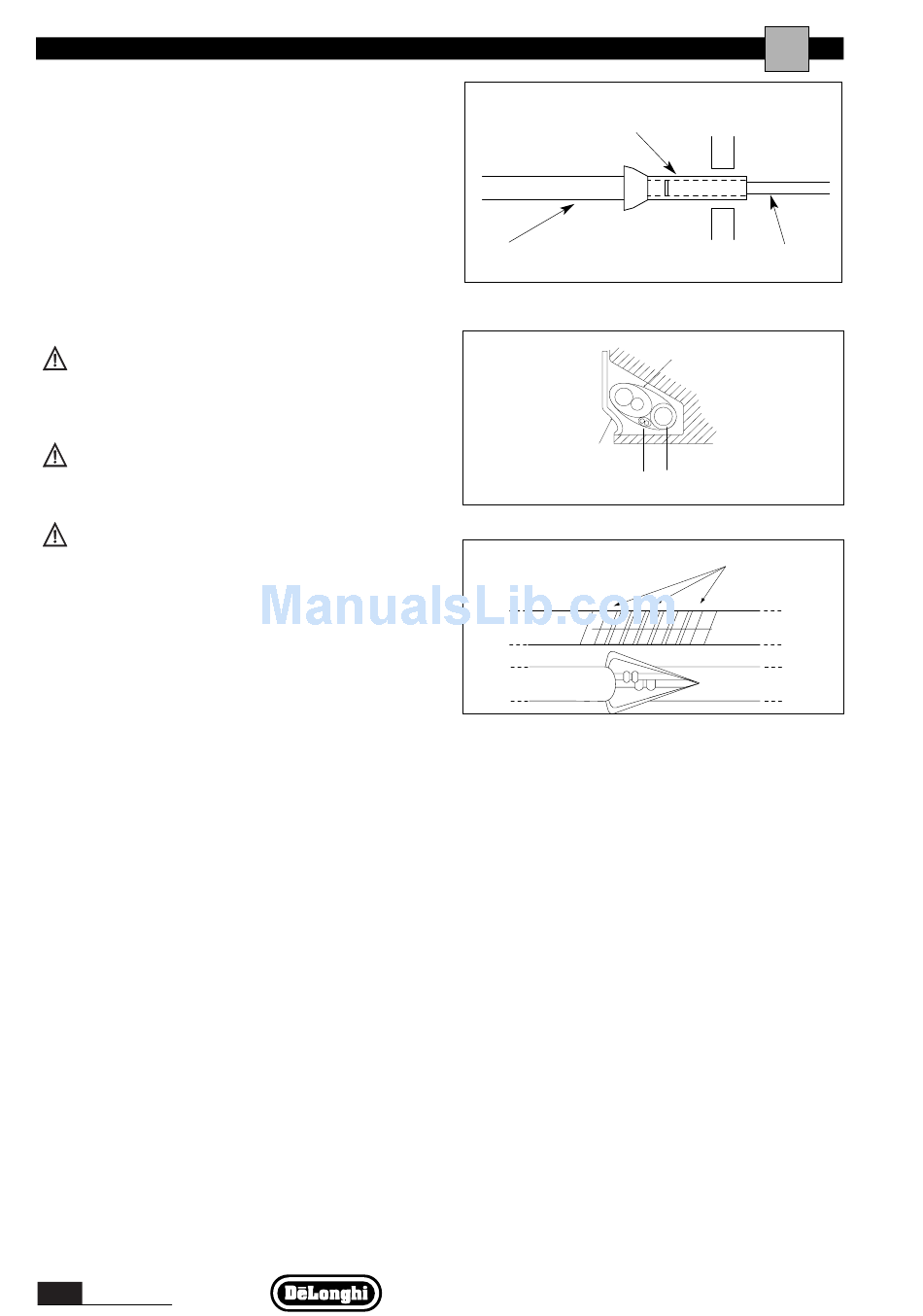

Fig. 17
Protection
Drain pipe
Fig. 18
Installation place
Power supply cable
Fig. 19
I
Drain pipe extension
Pipework
Drain pipe
Insulating tape
