I
The place of installation should be established by the instal-
lation designer or by a technically competent person and
should take into account technical requirements as well as
relevant current laws and regulations, which envisage the
obtaining of specific permits (e.g. town-planning, architectu-
ral, fire, environmental pollution regulations, etc.); it is the-
refore advisable to apply for and obtain the necessary per-
mits prior to installing the air-conditioner.
I

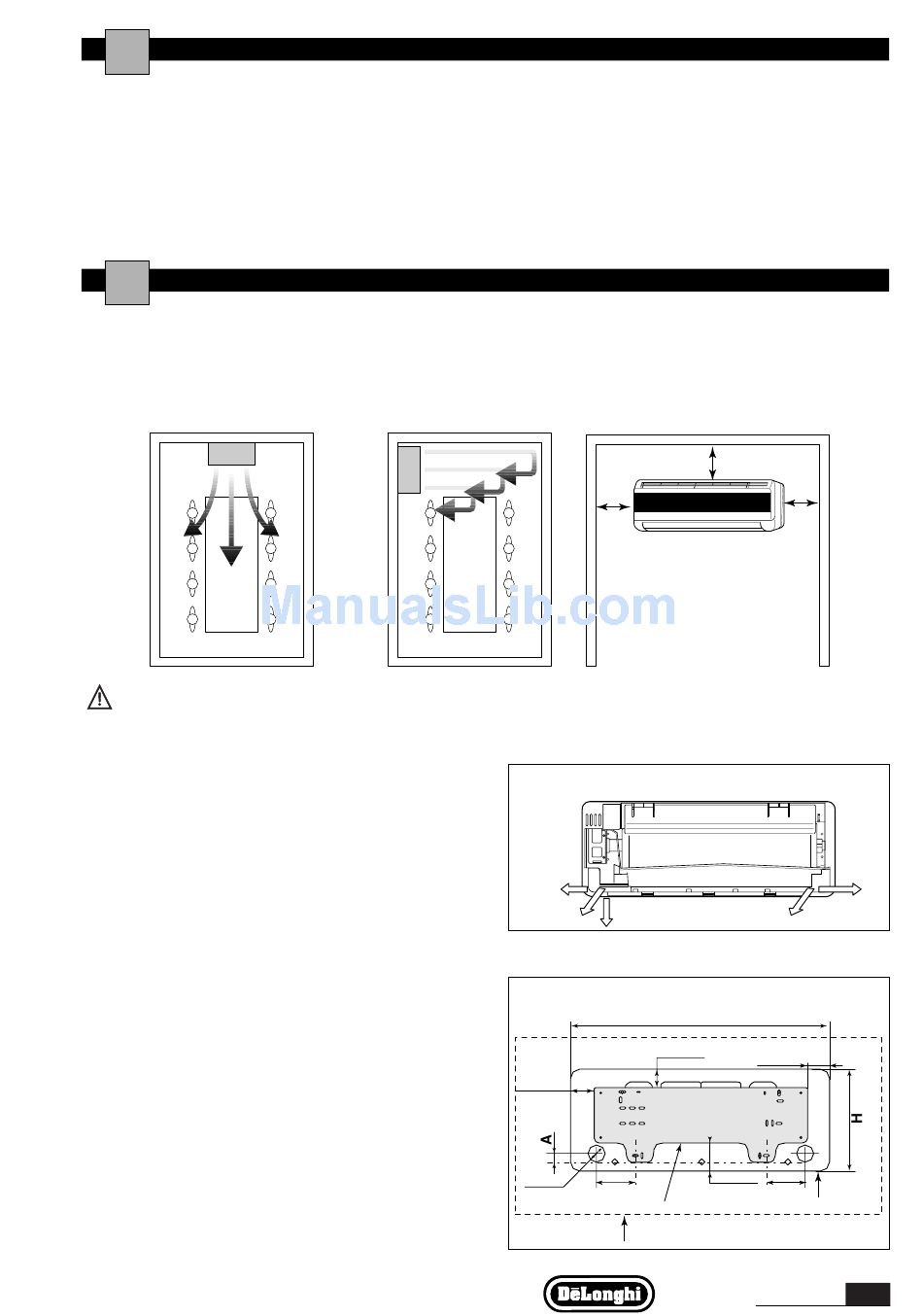

The indoor unit should be wall-mounted.
It should be positioned so that the treated air may circulate
freely throughout the whole room, while observing the mini-
YES
Recommended installation height is between 1.80 and 2.40 m from the ground.
Water connections
Prior to installing the air-conditioner, decide the direction of
the outlet pipes; they may be arranged in any of the five
directions indicated in Fig.(8):
1. to rear right
2. to right
3. downwards
4. to left
5. to rear left
Positioning the fixing plate
- Remove the steel fixing plate on the unit back
- Rest the cardboard reference template, supplied in the kit,
against the wall
- Position the steel fixing plate in the area outlined by the
cardboard reference template
- Make sure the steel fixing plate is level, using a spirit level
or a plumb line
- Secure the steel fixing plate using the 5 screw anchors
and relative screws provided in the kit
- Should the refrigerant, electrical and condensate drainage
lines exit from the rear in direction "1" or "5", make the
hole in the wall using a ø 68 mm bit, complying with the
distances indicated in the figure to the side Fig. (9).
The air-conditioner should be installed by a qualified com-
pany in accordance with relevant laws and regulations in
force in the country of installation.
Before commencing installation, establish the position of the
indoor and the outdoor unit, taking into consideration the
minimum technical spaces, maximum length of the refrige-
rant lines and the difference in level between the applian-
ces.

INSTALLATION OF THE INDOOR UNIT

mum spaces necessary for technical and maintenance ope-
rations.
NO
50 mm
Fig. 8
2
1
Fig. 9
102 mm
B
86 mm

INSTALLATION

50 mm
50 mm
3
5
L
21 mm
102 mm
80 mm
B
Steel plate
Overall dimensions
Cardboard template
English
