C

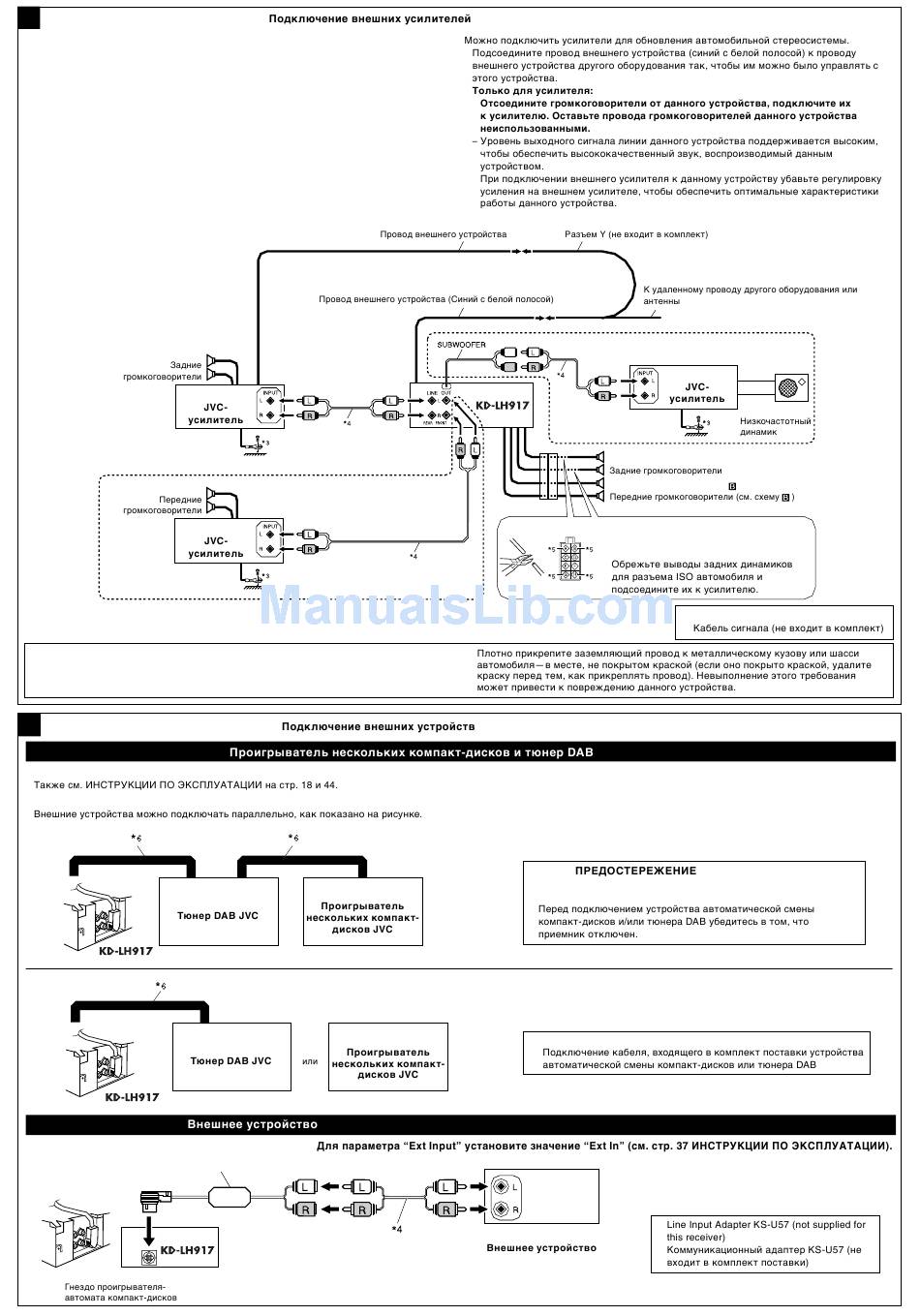

Connecting the external amplifiers /
You can connect amplifiers to upgrade your car stereo system.
• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment
so that it can be controlled through this receiver.
• For amplifier only:
– Disconnect the speakers from this receiver, connect them to the amplifier. Leave
the speaker leads of this receiver unused.
– The line output level of this receiver is kept high to maintain the hi-fi sounds reproduced
from this receiver.
When connecting an external amplifier to this receiver, turn down the gain control on the
external amplifier to obtain the best performance from this receiver.
Rear speakers
JVC Amplifier
Front speakers
JVC Amplifier
3
*
Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place
not coated with paint (if coated with paint, remove the paint before attaching the wire).
Failure to do so may cause damage to the receiver.
D
Connecting the external components /
CD changer and DAB tuner /
• Refer also to pages 18 and 44 of the INSTRUCTIONS.
•
• You can connect both components in series as illustrated below.
•
JVC DAB tuner
JVC DAB tuner
External Component /
• Set "Ext Input" to "Ext In" (see page 37 of the INSTRUCTIONS). /
KS-U57*
CD changer jack
Remote lead
Remote lead (Blue with white stripe)
JVC CD changer
JVC CD changer
or
7
•
•
–
Y-connector (not supplied for this receiver)
Rear speakers
Front speakers (see diagram
5
*
Cut the rear speaker leads of the car's
ISO connector and connect them to the
amplifier.
*
5
*
3
CAUTION /
• Before connecting the CD changer and/or DAB tuner, make sure that
the receiver is turned off.
•
*
6
Connecting cord supplied for your CD changer or DAB tuner
*
6
External component
4
To the remote lead of other equipment or power aerial
if any
JVC Amplifier
Subwoofer
)
4
*
Signal cord (not supplied for this receiver)
4
*
:
*
7
*
7
