If your car is equipped with the ISO connector /

• Connect the ISO connectors as illustrated.
•
A B
C
D
E F
G H
ISO connector of the supplied power cord
I J
K L
M
N
O P
View from the lead side
B

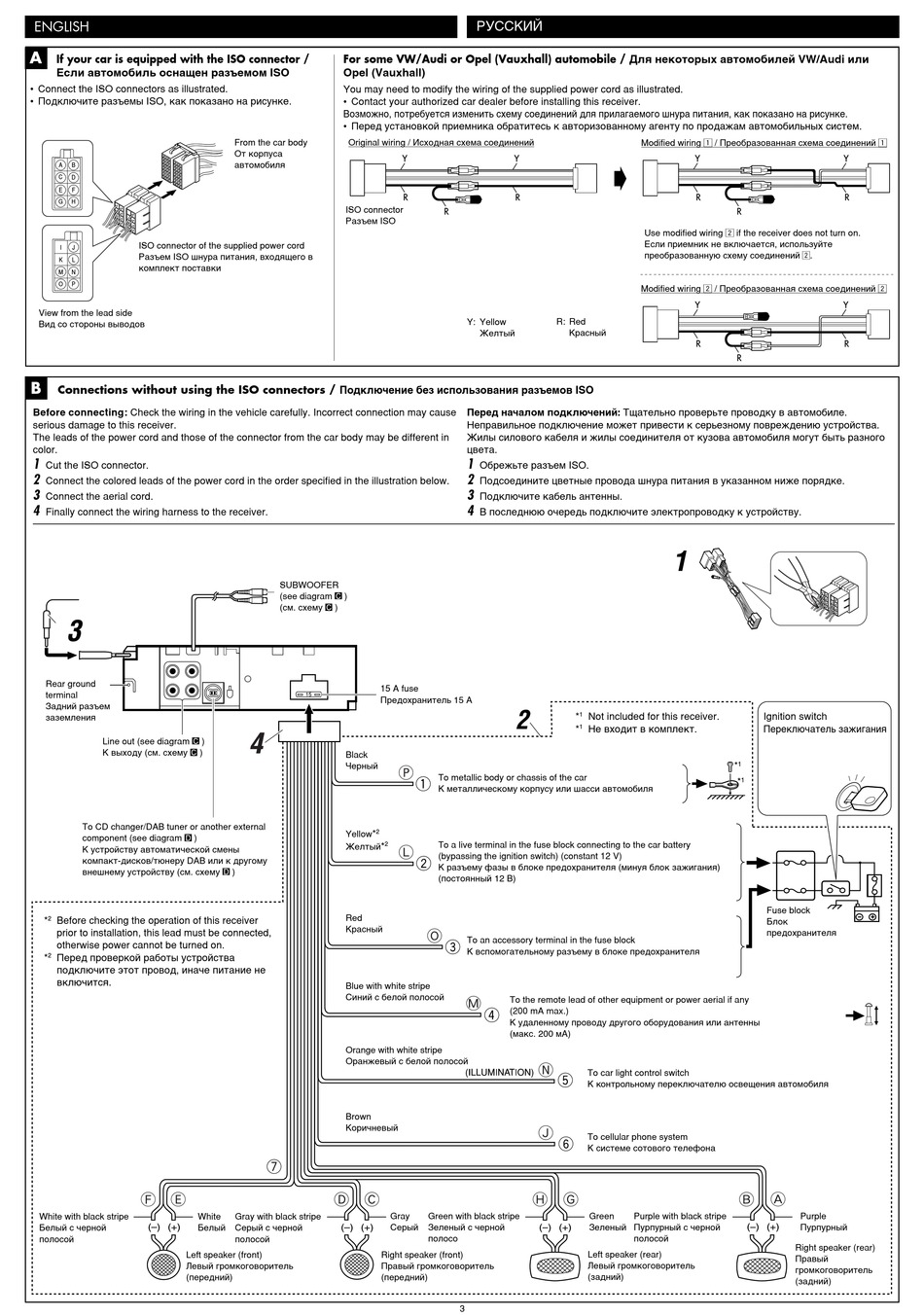

Connections without using the ISO connectors /

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause
serious damage to this receiver.
The leads of the power cord and those of the connector from the car body may be different in
color.
1
Cut the ISO connector.
2
Connect the colored leads of the power cord in the order specified in the illustration below.
3
Connect the aerial cord.
4
Finally connect the wiring harness to the receiver.
Rear ground
terminal
Line out (see diagram )
To CD changer/DAB tuner or another external
component (see diagram )
* 2 Before checking the operation of this receiver
prior to installation, this lead must be connected,
otherwise power cannot be turned on.
* 2
White with black stripe White
Left speaker (front)
For some VW/Audi or Opel (Vauxhall) automobile /
You may need to modify the wiring of the supplied power cord as illustrated.
• Contact your authorized car dealer before installing this receiver.
•
From the car body Original wiring /
ISO connector
SUBWOOFER
(see diagram )
15 A fuse
Black
* 2
Yellow
* 2
Red
Blue with white stripe
Orange with white stripe
Brown
Gray with black stripe Gray
Right speaker (front)
Y: Yellow R: Red
1
2
3
4
* 1 Not included for this receiver.
* 1
To metallic body or chassis of the car
To a live terminal in the fuse block connecting to the car battery
(bypassing the ignition switch) (constant 12 V)
To an accessory terminal in the fuse block
To the remote lead of other equipment or power aerial if any
(200 mA max.)
To car light control switch
To cellular phone system
Green with black stripe Green
Left speaker (rear)
3
Modified wiring 1 /
Use modified wiring 2 if the receiver does not turn on.
2
Modified wiring 2 /
Ignition switch
Fuse block
Purple with black stripe Purple
Right speaker (rear)
1
2
