RANGE HOOD - User instructions
USA
HOTTE DE CUISINE - Notice d'utilisation
F
CAMPANA EXTRACTORA - Manual de utilización
E

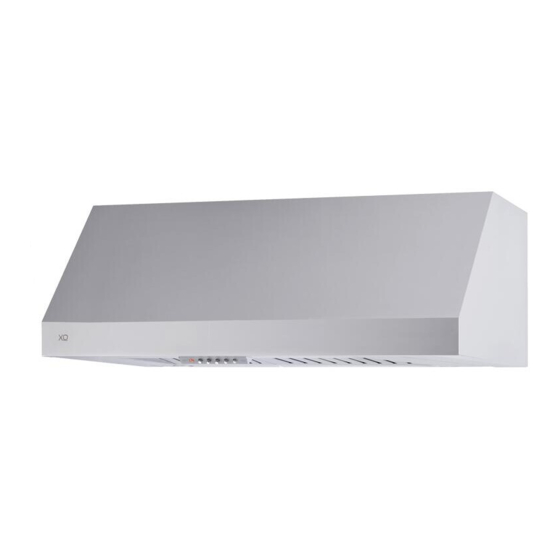

XOT48KS
XOT1836KS
XOT1848KS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XOT48KS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xo XOT48KS

Summary of Contents for Xo XOT48KS

  • Page 1 XOT48KS XOT1836KS XOT1848KS NEED HELP? Call our ventilation experts toll free al 800-966-8300 AVEZ-VOUS BESOIN D’AIDE ? Contactez nos experts au numéro gratuit 800-966-8300 ¿NECESITA AYUDA? Póngase en contacto con nuestros expertos a través del número gratis 800-966-8300 RANGE HOOD - User instructions HOTTE DE CUISINE - Notice d’utilisation...
  • Page 2 The warranty is extended to the original purchaser for products purchased for ordinary home use in North America. Should you require service for your XO product call a product service specialist at 800.966.8300 What is not covered Improper Installation.
  • Page 3 ENGLISH IMPORTANT SAFETY INSTRUCTIONS. FOR RESIDENTIAL USE ONLY. READ AND SAVE THESE INSTRUCTIONS. PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING. IMPORTANT: Save these Instructions for the Local Electrical Inspectors use. INSTALLER: Please leave these Instructions with this unit for the owner. OWNER: Please retain these instructions for future reference.

  • Page 4: Installation Instructions

    Suzette, Cherries Jubilee, Peppercorn Beef Flambè). C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. D. Use proper pan size. Always use cookware appropriate for the size of the surface element. E. Keep fan, filters and grease laden surface clean. F.
  • Page 5 WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY BE DANGEROUS. A. Do not check filters with hood working. B. Do not touch the lamps after a prolonged use of the appliance. C.

  • Page 6: Duct Fittings

    DUCT FITTINGS: Equivalent Total Duct Quantity Dimensions: Number Equivalent This Hood Must Use an Piece: Used: Length*: Length: 8" Round Duct. It Can Transition to 3-1/4" x 10" 1 ft. (per foot Round, straight or 3-1/4" x 12" Duct. lenhgth) 3-1/4"...

  • Page 7: Install The Ductwork

    WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.
  • Page 8 PRODUCT DIMENSIONS AND CLEARANCE XOT48KS - XOT1836KS - XOT1848KS: › Front of hood › Side of hood 12" 5-5/8" 8" 8" › Top of hood › Mounting height and clearance: 36" - 48" Min 27" - Max 32" 36" - 8 -...
  • Page 9 INSTALLATION INSTRUCTIONS INSTALLATION - VENTED TO THE OUTSIDE 1. ATTENTION! - Before carrying out assembly operations, open the packaging, take the hood and place it on a comfortable surface. - Remove the anti-grease filter/s (Fig.1). - If the appliance id to be mounted in DUCTING version, prepare the air evacuation hole. - It is recommended to use an air evacuation pipe with the same diameter as the air outlet flange.

  • Page 10: Power Supply

    POWER SUPPLY: IMPORTANT - (Please read carefully) WARNING: FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED. Remove house fuse or open circuit breaker before beginning installation. Do not use an extension cord or adapter plug with this appliance. Follow National electrical codes or prevailing local codes and ordinances.

  • Page 11: Connect Electrical

    2. CONNECT ELECTRICAL: For connection to the power supply refer to the following Fig.2: 1. Break and remove the small circular metal sheet positioned in the rear part of the hood, with the aid of a flat screw driver Fig.2.1. 2.
  • Page 12 OPTIONAL: the electric power supply box can be removed and fixed in the position indicated in Fig.3A. WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Before connecting the appliance to the power supply network, the electric plant box must be positioned in the seat.
  • Page 13 The appliance must be installed at a minimum height of 27" from an electric cooker stove, or 32" from gas or combined cooker stoves. If a connection ductwork composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the range hood exhaust duct air to the same duct air used to exhaust hot air or fumes from other appliances other than electrical.
  • Page 14 This product can be installed in 2 different ways: - Mounting the hood in the lower part of the shelf: 1 type installation Fig.4. - Mounting the hood on the wall: 2 type installation Fig.4. Fig.4 - 14 -...
  • Page 15 - Check that the screws used that are not supplied with the product are suitable for the type of object. - Position the fixing template on the lower part of the shelf , (considering the minimum distance from the cooker top). - Make 6 holes in the shelf respecting the measurements indicated - Fix the 4 screws A without tightening them completely.
  • Page 16 36" 48" 12" 5-5/8" 8" 22" 48" 11" 47-15/16" 2" 2" 9/16" 9/16" 3" 3" 36" - 48" 18" 35-15/16" - 47-15/16" 2" 2" 9/16" 9/16" 3" 3" - 16 -...
  • Page 17 Position the fixing template on the wall (Fig.6B), (considering the minimum distance from the cooker top). - Make 4 holes respecting the measurement indicated in the figures (Fig.6C). - Fix the 2 upper screws A without tightening them completely along with the plugs. - Hang the hood on the wall, aligning it in a horizontal position and tighten/fasten the 2 screws A.
  • Page 18 36" 48" 12" 5-5/8" 8" 22" 48" 11" 47-15/16" 2" 2" 9/16" 9/16" 3" 3" 36" - 48" 18" 35-15/16" - 47-15/16" 2" 2" 9/16" 9/16" 3" 3" Fig.6 - 18 -...

  • Page 19: Connection Diagram

    CONNECTION DIAGRAM: 36" 48" Ceiling Cutout for Vertical Ducting Viewed from Above BACK OF THE CABINET 8-1/16" 3-9/16" 5-5/8" Electrical 11-5/8" (36" - 48") Wall Cutout for Horizontal Ducting Viewed from Front BOTTOM OF THE CABINET 3-1/4" Electrical 11-5/8" (36" - 48") - 19 -...
  • Page 20 DUCTLESS RECIRCULATING OPTION: 48" CARBON FILTER KIT XORFK09 (48"): We have an air diverter A, 7 screws B, 4 rectangular filters C and the bracket D. Fig.1: Take the circular shape X and fasten it to the hood using the 7 screws. To convert this model from the sunction to the filtering version, it is not necessary to use the circular shape X.
  • Page 21 Fig.2: Remove the buffle filters by pulling Fig.3: Take the bracket A and fasten it to the the lever 1 out and pushing downwards hood using the 7 screws B (provided). 48" Fig.4: Take the bracket D and fasten it to the hood using the 14 screws. Take the 4 rectangular filters C and apply them on to the bracket D as shown in the figure.
  • Page 22 Put the buffle filters back in place (Fig.2). - 22 -...
  • Page 23 If the apparatus is equipped with the following controls: A = LIGHT B = OFF C = SPEED I D = SPEED II E = SPEED III G = MOTOR WORKING indicator. - 23 -...

  • Page 24: Maintenance

    MAINTENANCE We recommend that the cooker hood is switched on before any food is cooked. We also recommend that the appliance is left running for 15 minutes after the food is cooked, in order to thoroughly eliminate all contaminated air. The effective performance of the cooker hood depends on constant maintenance;...
  • Page 25 - DO NOT allow deposit to remain for long periods of time. - DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface causing rust. - DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel for extended periods.
  • Page 26 In order to replace the dichroic lamps, carefully remove the lamp from the lamp holder with the help of a small flat screwdriver or a similar tool. PLEASE NOTE! In doing this operation, please take care not to scratch the hood. Replace the bulbs with new ones of the same type.
  • Page 27 XOT48KS - XOT1836KS - XOT1848KS: - 27 -...

  • Page 28: Options And Accessories

    OPTIONS AND ACCESSORIES: Model XORFK09 (48") Ductless Recirculating Filter Kit. Model XOTDC36S (36") - XOTDC48S (48") Chimney Kit. - 28 -...

  • Page 29: Installation Preparation

    INSTALLATION PREPARATION: Check installation hardware: Locate the hardware package packed with the hood and check contents. Baffle filters - 29 -...
  • Page 30 - D i m e n s i o n s XOT 1 8 4 8 K S - XOT 1 8 3 6 K S : 3" 36" or 48" x 22" D x 18" Tall. - Dimensions XOT48KS: 48" x 22" D x 11" Tall. - Baffle Filters - Trap airborne smoke and grease particles. They can be easily be removed for dishwasher-safe cleaning.
