Electrolux EDW 1001 Service Manual page 31

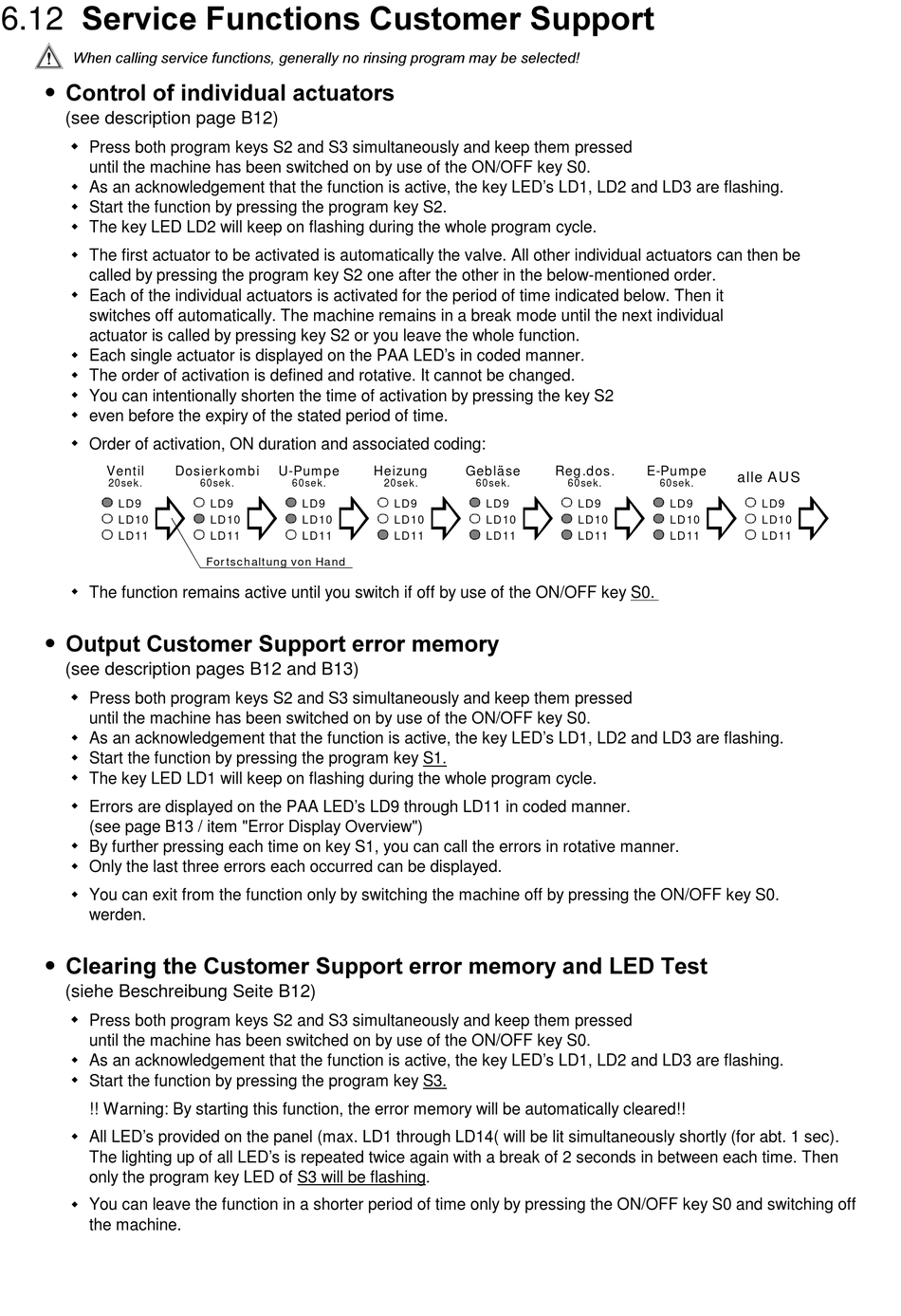

6.12 6HUYLFH )XQFWLRQV &XVWRPHU 6XSSRUW
:KHQ FDOOLQJ VHUYLFH IXQFWLRQV JHQHUDOO\ QR ULQVLQJ SURJUDP PD\ EH VHOHFWHG
&RQWURO RI LQGLYLGXDO DFWXDWRUV
l
(see description page B12)
w Press both program keys S2 and S3 simultaneously and keep them pressed
until the machine has been switched on by use of the ON/OFF key S0.
w
As an acknowledgement that the function is active, the key LED's LD1, LD2 and LD3 are flashing.
w
Start the function by pressing the program key S2.
w
The key LED LD2 will keep on flashing during the whole program cycle.
w
The first actuator to be activated is automatically the valve. All other individual actuators can then be
called by pressing the program key S2 one after the other in the below-mentioned order.
w
Each of the individual actuators is activated for the period of time indicated below. Then it
switches off automatically. The machine remains in a break mode until the next individual
actuator is called by pressing key S2 or you leave the whole function.
w
Each single actuator is displayed on the PAA LED's in coded manner.
w
The order of activation is defined and rotative. It cannot be changed.
w
You can intentionally shorten the time of activation by pressing the key S2
w
even before the expiry of the stated period of time.
w
Order of activation, ON duration and associated coding:
Ventil
20 s ek .
L D9
L D10
L D11
w
The function remains active until you switch if off by use of the ON/OFF key S0.
2XWSXW &XVWRPHU 6XSSRUW HUURU PHPRU\
l
(see description pages B12 and B13)
w Press both program keys S2 and S3 simultaneously and keep them pressed
until the machine has been switched on by use of the ON/OFF key S0.
w
As an acknowledgement that the function is active, the key LED's LD1, LD2 and LD3 are flashing.
w
Start the function by pressing the program key S1.
w
The key LED LD1 will keep on flashing during the whole program cycle.
w
Errors are displayed on the PAA LED's LD9 through LD11 in coded manner.
(see page B13 / item "Error Display Overview")
w
By further pressing each time on key S1, you can call the errors in rotative manner.
w
Only the last three errors each occurred can be displayed.
w
You can exit from the function only by switching the machine off by pressing the ON/OFF key S0.
werden.
&OHDULQJ WKH &XVWRPHU 6XSSRUW HUURU PHPRU\ DQG /(' 7HVW
l
(siehe Beschreibung Seite B12)
w Press both program keys S2 and S3 simultaneously and keep them pressed
until the machine has been switched on by use of the ON/OFF key S0.
w
As an acknowledgement that the function is active, the key LED's LD1, LD2 and LD3 are flashing.
w
Start the function by pressing the program key S3.
!! Warning: By starting this function, the error memory will be automatically cleared!!
w
All LED's provided on the panel (max. LD1 through LD14( will be lit simultaneously shortly (for abt. 1 sec).
The lighting up of all LED's is repeated twice again with a break of 2 seconds in between each time. Then
only the program key LED of S3 will be flashing.
w
You can leave the function in a shorter period of time only by pressing the ON/OFF key S0 and switching off
the machine.
Dos ier k ombi U -P umpe
60 s ek . 60 s ek .
L D9 L D9
L D10 L D10
L D11 L D11
F or ts chaltung von Hand
H eiz ung Gebläs e
20 s ek . 60 s ek .
L D9 L D9
L D10 L D10
L D11 L D11
R eg.dos . E -P umpe
60 s ek. 60 s ek.
L D9 L D9
L D10 L D10
L D11 L D11
alle AU S
L D9
L D10
L D11
