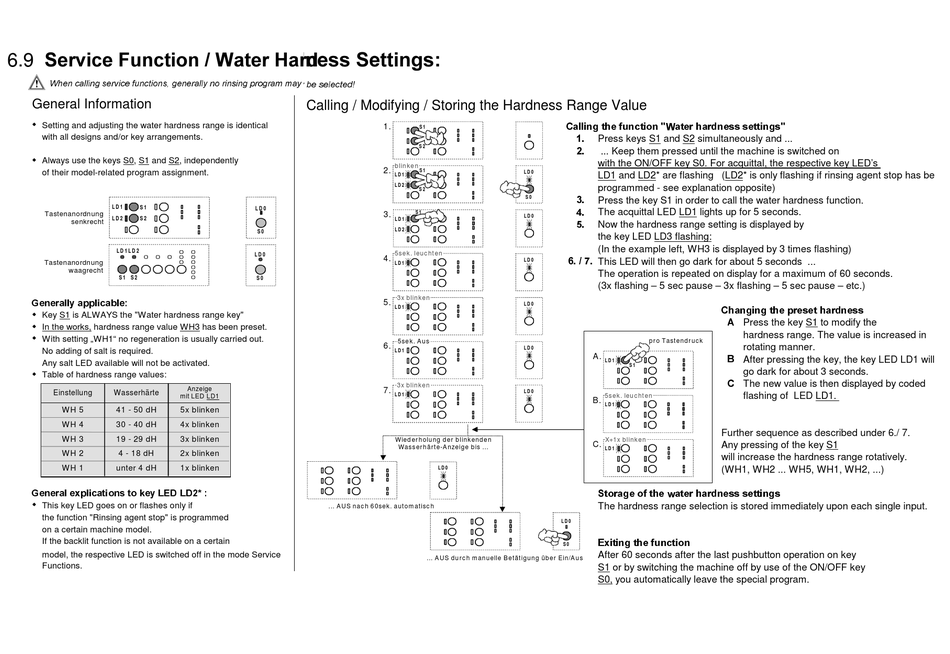

6.9 6HUYLFH )XQFWLRQ  :DWHU +DUG
ÃÃÃXurÃphyyvtÆr…‰vprÃsˆp‡v‚†Ãtrr…hyy’Á‚Ã…v†vtÃ…‚t…h€Ã€h’Ã

General Information

w
Setting and adjusting the water hardness range is identical
with all designs and/or key arrangements.
w
Always use the keys S0, S1 and S2, independently
of their model-related program assignment.
L D 1 S 1
Tastenanordnung
L D 2 S 2
senkrecht
L D 1L D 2
Tastenanordnung
waagrecht
S 1 S 2
Brr…hyy’Ãhƒƒyvphiyr)
w
Key S1 is ALWAYS the "Water hardness range key"
w
In the works, hardness range value WH3 has been preset.
w
With setting „WH1" no regeneration is usually carried out.
No adding of salt is required.
Any salt LED available will not be activated.
w
Table of hardness range values:
Einstellung Wasserhärte
mit LED LD1
W H 5 41 - 50 dH 5x blinken
W H 4 30 - 40 dH 4x blinken
W H 3 19 - 29 dH 3x blinken
W H 2 4 - 18 dH 2x blinken
W H 1 unter 4 dH 1x blinken
Brr…hyÃr‘ƒyvph‡v‚†Ã‡‚Ãxr’ÃG@9ÃG9!Ã)
w
This key LED goes on or flashes only if
the function "Rinsing agent stop" is programmed
on a certain machine model.
If the backlit function is not available on a certain
model, the respective LED is switched off in the mode Service
Functions.
GQHVV 6HWWLQJV
’ÃirÆryrp‡rqÄÃÃ
Calling / Modifying / Storing the Hardness Range Value
L D 0
S 0
L D 0
S 0
Anzeige
... AU S nach 6 0s ek . automatis ch
1.
S 1
S 2
blinken
2.
S 1
L D0
L D1
L D2
S 2
S 0
S 1
3.
L D0
L D1
L D2
5s ek . leuchten
4.
L D0
L D1
3x blink en
5.
L D0
L D1
5s ek . Aus
6.
L D0
L D1
3x blink en
7.
L D0
L D1
Wieder holung der bl ink enden
Was s er här te-Anz eige bis ...
L D0
... AU S dur ch manuelle B etäti gung über E in/Aus
8hyyvtÇurÃsˆp‡v‚ÃÅXh‡r…Ãuh…qr††Ã†r‡‡vt†ÅÃÃÃ
Press keys S1 and S2 simultaneously and ...

... Keep them pressed until the machine is switched on
!
with the ON/OFF key S0. For acquittal, the respective key LED's
LD1 and LD2* are flashing (LD2* is only flashing if rinsing agent stop has be
programmed - see explanation opposite)
Press the key S1 in order to call the water hardness function.
"
The acquittal LED LD1 lights up for 5 seconds.
#
Now the hardness range setting is displayed by
$
the key LED LD3 flashing:
(In the example left, WH3 is displayed by 3 times flashing)
This LED will then go dark for about 5 seconds ...
%ÃÃ&
The operation is repeated on display for a maximum of 60 seconds.
(3x flashing – 5 sec pause – 3x flashing – 5 sec pause – etc.)
8uhtvtÇurÃ…r†r‡Ãuh…qr††
6
pr o T as tendr uck
A.
7
L D1
S 1
8
5s ek . leuchten
B .
L D1
Further sequence as described under 6./ 7.
X+1x bl ink en
Any pressing of the key S1
C.
L D1
will increase the hardness range rotatively.
(WH1, WH2 ... WH5, WH1, WH2, ...)
T‡‚…htrÂsÇurÐh‡r…Ãuh…qr††Ã†r‡‡vt†Ã
The hardness range selection is stored immediately upon each single input.
L D0
@‘v‡vtÇurÃsˆp‡v‚
S 0
After 60 seconds after the last pushbutton operation on key
S1 or by switching the machine off by use of the ON/OFF key
S0, you automatically leave the special program.
Press the key S1 to modify the
hardness range. The value is increased in
rotating manner.
After pressing the key, the key LED LD1 will
go dark for about 3 seconds.
The new value is then displayed by coded
flashing of LED LD1.
