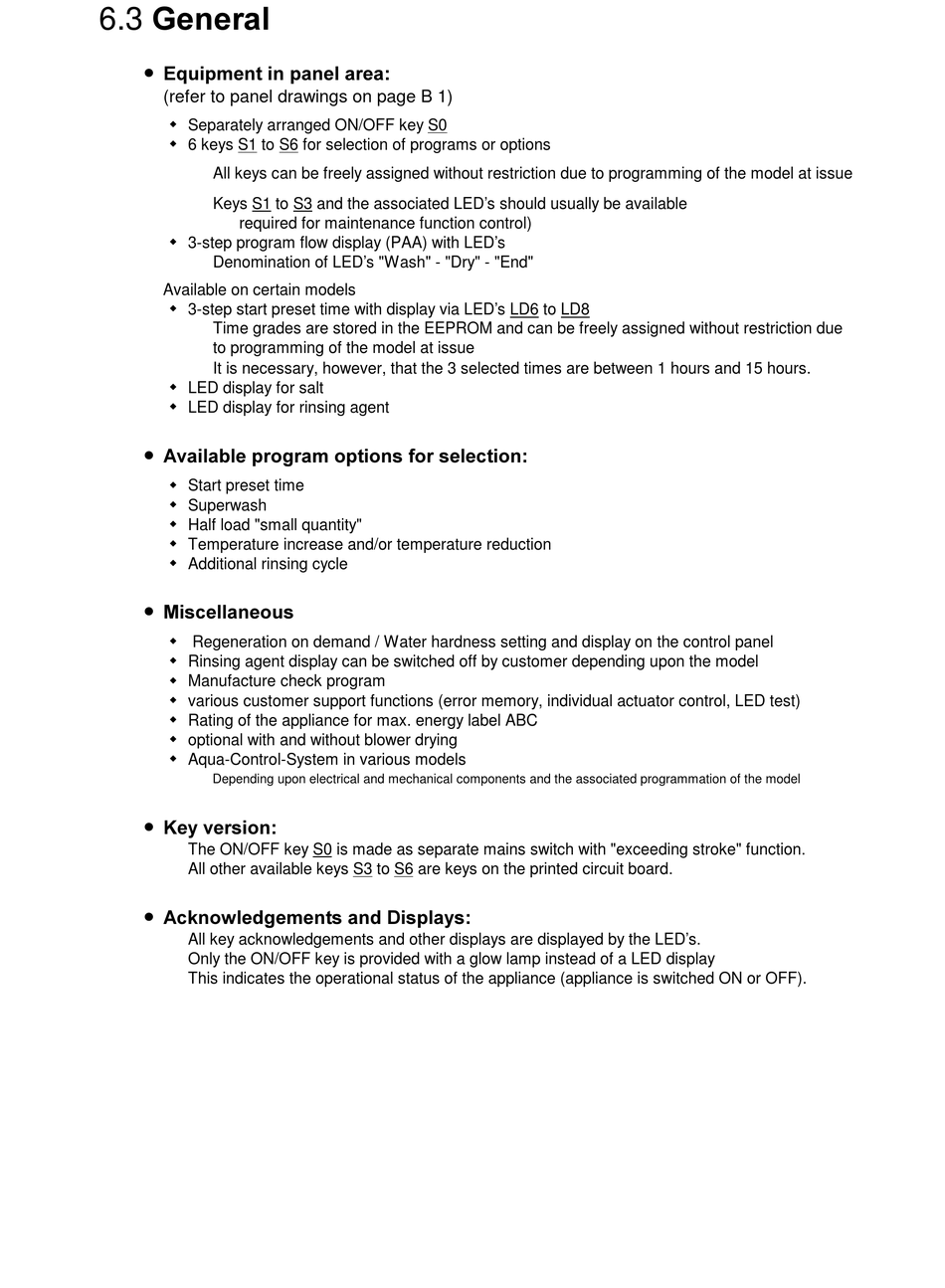

6.3 *HQHUDO
(TXLSPHQW LQ SDQHO DUHD
l
(refer to panel drawings on page B 1)
w Separately arranged ON/OFF key S0
w 6 keys S1 to S6 for selection of programs or options
All keys can be freely assigned without restriction due to programming of the model at issue
Keys S1 to S3 and the associated LED's should usually be available
required for maintenance function control)
w 3-step program flow display (PAA) with LED's
Denomination of LED's "Wash" - "Dry" - "End"
Available on certain models
w 3-step start preset time with display via LED's LD6 to LD8
Time grades are stored in the EEPROM and can be freely assigned without restriction due
to programming of the model at issue
It is necessary, however, that the 3 selected times are between 1 hours and 15 hours.
w LED display for salt
w LED display for rinsing agent
$YDLODEOH SURJUDP RSWLRQV IRU VHOHFWLRQ
l
w Start preset time
w Superwash
w Half load "small quantity"
w Temperature increase and/or temperature reduction
w Additional rinsing cycle
0LVFHOODQHRXV
l
w Regeneration on demand / Water hardness setting and display on the control panel
w Rinsing agent display can be switched off by customer depending upon the model
w Manufacture check program
w various customer support functions (error memory, individual actuator control, LED test)
w Rating of the appliance for max. energy label ABC
w optional with and without blower drying
w Aqua-Control-System in various models
Depending upon electrical and mechanical components and the associated programmation of the model
.H\ YHUVLRQ
l
The ON/OFF key S0 is made as separate mains switch with "exceeding stroke" function.
All other available keys S3 to S6 are keys on the printed circuit board.
$FNQRZOHGJHPHQWV DQG 'LVSOD\V
l
All key acknowledgements and other displays are displayed by the LED's.
Only the ON/OFF key is provided with a glow lamp instead of a LED display
This indicates the operational status of the appliance (appliance is switched ON or OFF).
