Summary of Contents for Star Max 5124CD

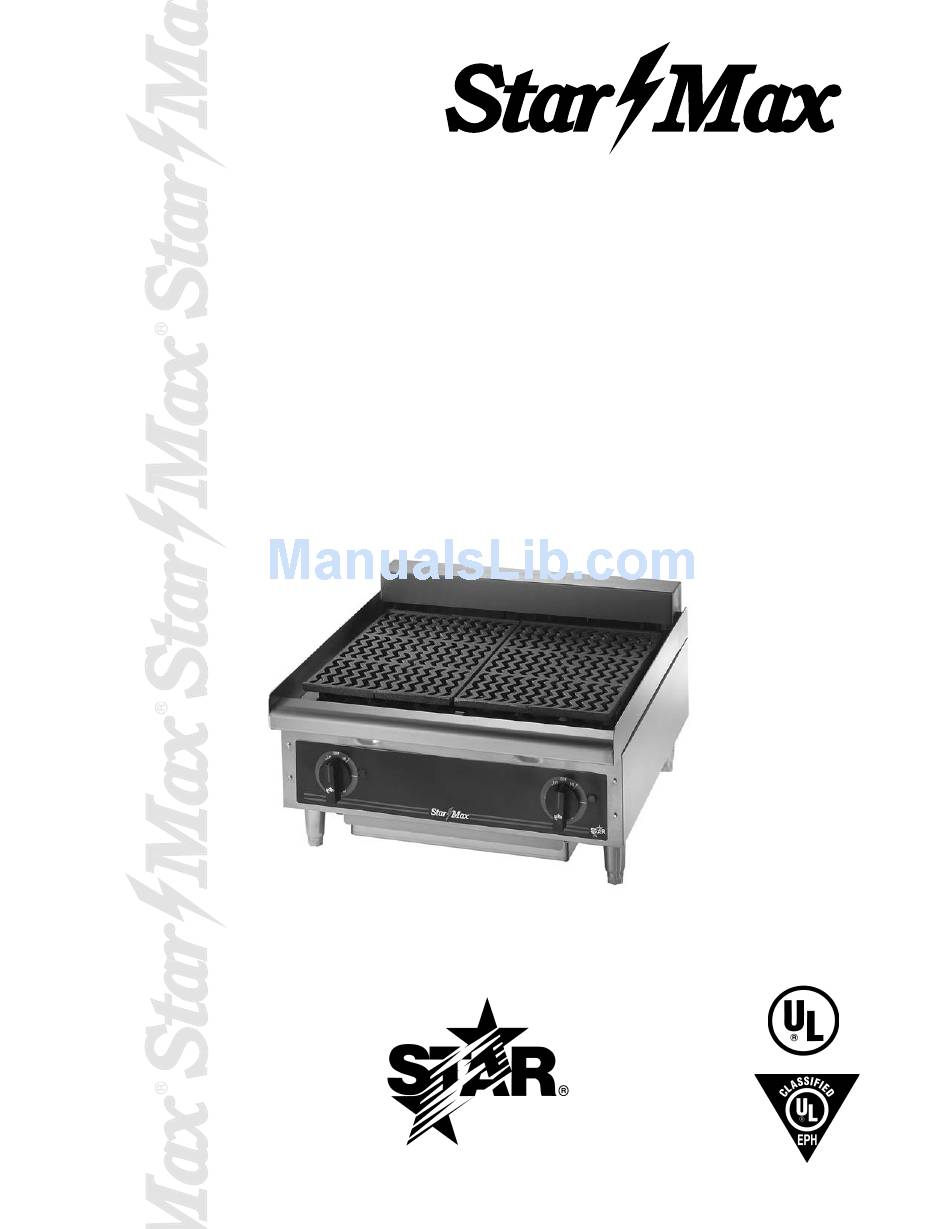

- Page 1 ® ELECTRIC COUNTER CHAR-BROILER MODEL 5124CD & 5136CD Installation and Operation Instructions 2M-Z6127 Rev. C 12/27/05 5124CD...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Specifications
SPECIFICATIONS 5124CD Type: Infi nite Control, 2 Controls, 6.6 KW, 396 sq. in. (2555 sq. cm) Grid Area Weight: Installed - 98 lb. (45 kg); Shipping - 145 lb. (66 kg) Dimensions: 24" W x 25 5/8" D x 14 1/4" H... -
Page 4: General Installation Instructions
GENERAL INSTALLATION INSTRUCTIONS CAUTION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions &... - Page 5 CAUTION CARE MUST BE TAKEN WHEN OPENING PAN TO PREVENT SPILLING. 5. The charbroiler is equipped with modular grates that are readily removable for cleaning. Each heated section is controlled by a separate heat control switch. 6. Seasoning - Set the heat control switch to the low position and preheat for about 15 to 20 minutes.
- Page 6 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same.
- Page 9 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - 5124CD SK1983 REV. A 5/8/03...
-
Page 10: Parts List
PARTS LIST December 27, 2005, Rev. C MODELS 5124CD and 5136CD Electric Counter Char-Broilers Number Part Number Description and Model Designation Number Unit H1-Z6117 ELEMENT HOUSING COVER 5124CD H1-Z6118 ELEMENT HOUSING COVER 5136CD H1-Y3115 ELEMENT STRAP 5124CD H1-Y3266 ELEMENT STRAP... - Page 11 PARTS LIST December 27, 2005, Rev C 5124CD and 5136CD Electric Counter Char-Broilers MODELS Number Part Number Number Description and Model Designation Unit 2R-Z3436 KNOB 5124CD / 5136CD 2J-Y6690 PILOT LIGHT 5124CD / 5136CD H1-Z6082 LINER COVER 5124CD H1-Z6083 LINER COVER...
- Page 12 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
