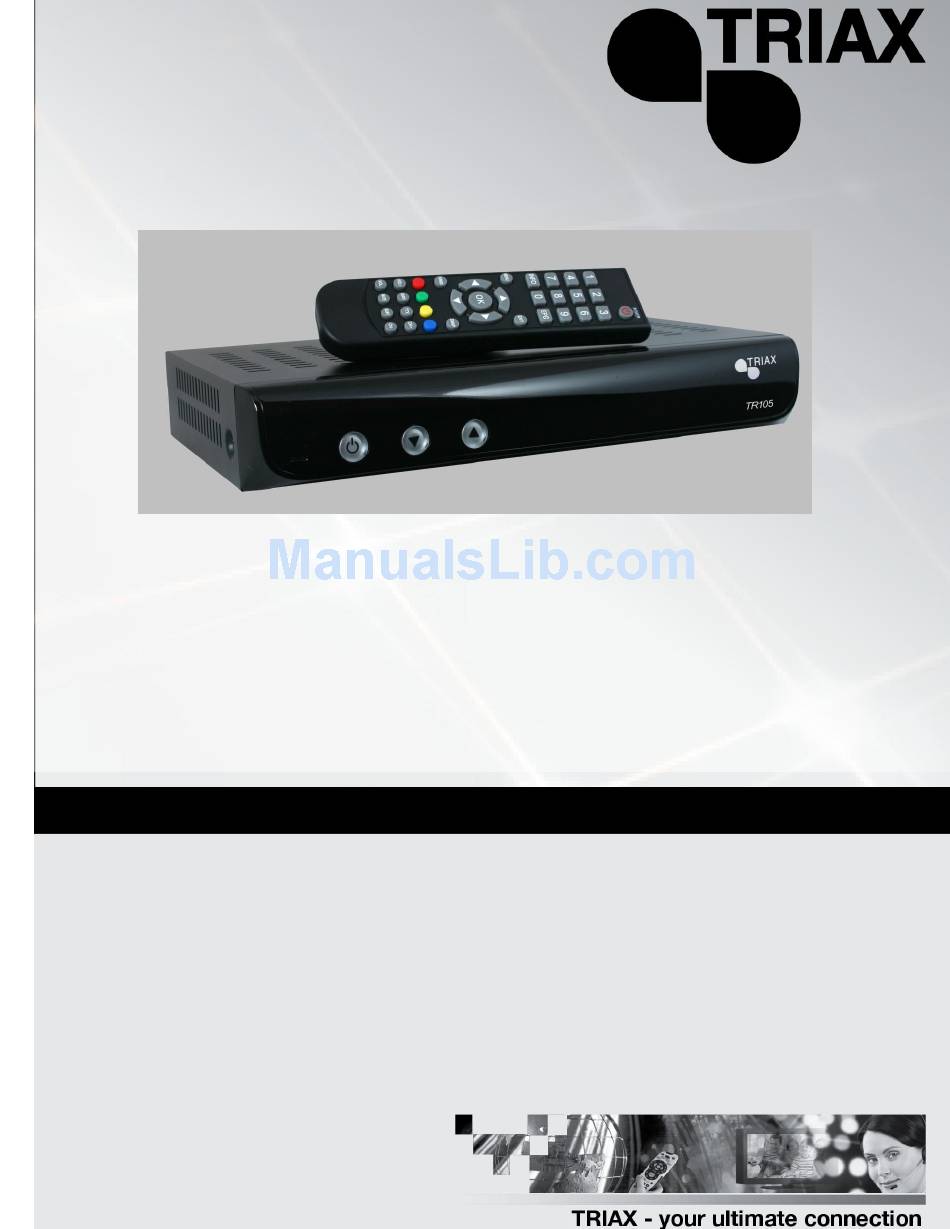

- Page 1 TRIAX TR 105 Digital Terrestrial set-top box Part No. 305105...
-
Page 3: Table Of Contents
7. Declaration of Conformity………………………………….……….…………………………..……..7 8. General Information……………………………………………………………………………………..8 8.1 For your safety…………………………………………………………………………….…….…..8 8.2 Specification………………………………………………………………………………………….8 8.3 Packaging……………………………………………………………………………….…………..10 8.4 General operation of the Triax TR 105…………………………………………………….….…10 8.5 Remote Control Unit, (RCU)………………………………………………………………………11 8.6 Front Panel………………………………………………………………………..………………...12 8.7 Rear Panel………………………………………………………………….……………………….12 8.8 Main Features……………………………………………………………….………………………13 9. First Time Installation…………………………………………………………….……………………….13 9.1 Switching On……………………………………………………………...…………………………13... -
Page 5: Forward
1.Forward This User Guide is intended to help you operate your Digital Terrestrial receiver, (called ‘receiver’ for short), as intended, safely and to the best advantage. We assume that the user of the receiver has a general knowledge of how to handle consumer electronic equipment. -
Page 6: Safety Precautions
5. Safety Precautions Warning! Important Safety Instruction CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK).NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Safety precautions: The receiver has been manufactured in accordance with international safety standards .For your own safety you should read the notes on safety precautions carefully, and take note of them ,before operating your new receiver .For your own safety please be sure to follow these safety precautions ;... -
Page 7: Declaration Of Conformity
Abergorki Industrial Estate, Treorchy, Rhondda-Cynon-Taff CF42 6DL, UK Object of the Declaration: Triax TR 105 Digital Terrestrial Receiver, 305105. The object of the declaration described above is in conformity with the requirements of the following documents: Low voltage directive 2006/95/EC... -
Page 8: General Information
8. General Information The TRIAX TR 105 is a Digital Terrestrial Receiver which allows you to receive Freeview channels. This user’s guide covers the installation of the TRIAX TR 105 and the necessary steps to operate various features. 8.1 For Your Safety... - Page 9 Video Decoder CPU Core STi5162GBB Video Standards MPEG-1 ISO/IEC 11172-2 MPEG-2 MP@ML and MP@LL, ISO/IEC 13818-2 Field / Frame rate 50/25 Hz, 60/30 Hz SD decoding capability 576i and,480i interlaced/progressive mode Aspect ratio 4:3, 16:9, Letter Box, auto Video Output TV Scart (CVBS/RGB), Output modes 480i,576i...
-
Page 10: Packaging
8.4 General Operation of the TRIAX TR 105. The operation of your TRIAX TR 105 is based on a series of user friendly on screen displays and menus. These menus will help you get the most from your TRIAX TR 105, guiding you through installation, channel organising, viewing and many other functions. -
Page 11: Remote Control Unit, (Rcu)
8.5 Remote Control Unit, (RCU): Figure 1: Remote Control Unit... -
Page 12: Front Panel
8.6 Front Panel Standby Ch+ / Ch- Figure 2: Front Panel 8.7 Rear Panel: Serial Data Port Mains Lead Aerial In RF Out Audio Out Scart Output to TV Figure 3: Rear Panel... -
Page 13: Main Features
The front panel LED illuminates. 9.2 Language List When the TR 105 is switched on for the first time, or there is no channel information stored in the receiver, the Triax logo will be displayed plus a list of languages. -
Page 14: Channel Search
9.3 Channel Search. When the language is selected, the Receiver will automatically search for services being transmitted in the corresponding country’s frequency range. The auto scan is carried out in two stages. Initially the Digital Multiplex details will be listed, after which TV and Radio channels within each Multiplex will be listed. -
Page 15: Navigating The Menu Screens
10. Navigating the Menu Screens: 10.1 Main Menu The Main Menu screen consists of 4 main categories: Channel Manager System Installation System Configuration Accessories Use the Up/Down or Left/ Right buttons to toggle between options. There follows a summary of the functions within each category:... -
Page 16: Channel Manager
10.2 Channel Manager: a) Channel Organiser: Press the following buttons on the RCU to carry out the following functions: 1 – To ‘Lock’ a channel in the channel list. 2 – To ‘Skip’ a channel in the channel list. 3 – To ‘Delete’ a channel from the channel list. 4 –... -
Page 17: System Installation
10.3 System Installation: a) Auto Scan: This allows the user to rescan the receiver for new or changed channels. The user is prompted as to whether existing stored channel information is deleted or not. b) Manual Scan: This allows the user to scan a specific UHF channel. The user is prompted to enter the UHF channel to be scanned. - Page 18 Start-up Channel: This allows the user to set up the TR 105 so that it will power up to a pre-set channel. Use the ‘<’ or ‘>’ buttons to activate or deactivate and the ▲▼ buttons to select the required Startup channel.
-
Page 19: Accessories
Factory Default: This allows the user to reset the TR 105 back to the condition that it left the factory. All user settings and previously stored channels will be lost. The user is prompted to confirm if a factory reset is to be carried out to prevent accidentally erasing information. -
Page 20: Favourite List
12. Favourite List: To access the favourite lists: Press ‘OK’ to display the channel list Press the RED button on the RCU – the Favourite menu is displayed. iii) Use the ‘<’ and ‘>’ buttons to toggle between Favourite group and Channels. iv) Select the required Favourite group. -
Page 21: Electronic Program Guide (Epg)
Press the ‘EPG’ button on the RCU to enter the Electronic Program Guide. The EPG lists the channels vertically and the programs and time information horizontally. The TR 105 supports a 7 day EPG.. Navigate around the EPG screen using the ▲▼ RCU buttons to select the channel and the ‘<’... -
Page 22: Using The Interactive Service
16. Volume and Mute Controls: i) Adjusting the Volume: The User can adjust the volume of the TR 105 using the VOL+ and VOL- buttons on the RCU. The volume level can be increased or decreased in 32 increments. ii) Mute Control: The User can temporarily switch off the TR 105 audio output by pressing the ‘MUTE’... -
Page 23: Channel Up / Channel Down
TV or Radio Channel Lists. 22. Exit: If the User wishes to exit a menu screen, press the ‘EXIT’ button on the RCU. Triax reserves the right to change the specification at any time without prior notice. Issue 3: December 2009...
