111 North River Road
North Aurora, IL 60542
Phone: (800) 323-5664
Fax: (630) 897-0573
sales@belson.com

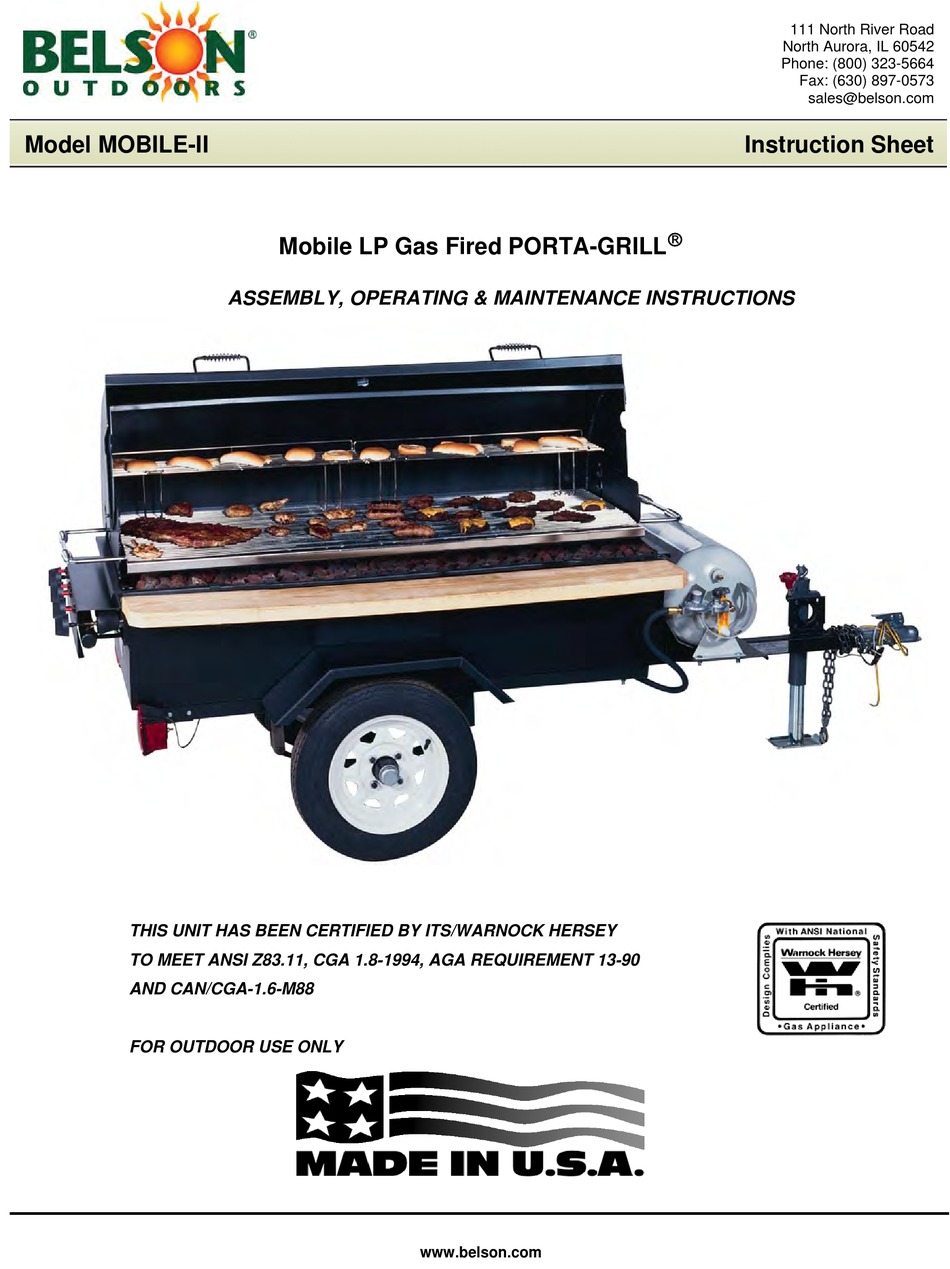

Model MOBILE-II
Instruction Sheet
Mobile LP Gas Fired PORTA-GRILL
ASSEMBLY, OPERATING & MAINTENANCE INSTRUCTIONS
THIS UNIT HAS BEEN CERTIFIED BY ITS/WARNOCK HERSEY
TO MEET ANSI Z83.11, CGA 1.8-1994, AGA REQUIREMENT 13-90
AND CAN/CGA-1.6-M88
FOR OUTDOOR USE ONLY
www.belson.com
Advertisement
Table of Contents
Related Manuals for Belson MOBILE-II
Summary of Contents for Belson MOBILE-II
- Page 1 111 North River Road North Aurora, IL 60542 Phone: (800) 323-5664 Fax: (630) 897-0573 sales@belson.com Model MOBILE-II Instruction Sheet Mobile LP Gas Fired PORTA-GRILL ASSEMBLY, OPERATING & MAINTENANCE INSTRUCTIONS THIS UNIT HAS BEEN CERTIFIED BY ITS/WARNOCK HERSEY TO MEET ANSI Z83.11, CGA 1.8-1994, AGA REQUIREMENT 13-90 AND CAN/CGA-1.6-M88...
-
Page 2: Table Of Contents
ASSEMBLY INSTRUCTIONS (SECTION C) GRILL INSTALLATION ASSEMBLY (SECTION C) ASSEMBLY INSTRUCTIONS (SECTION A) TRAILER ASSEMBLY XIII ASSEMBLY DIAGRAM (SECTION A) TRAILER LIGHT KIT ASSEMBLY INSTRUCTIONS (PG-200 BREAD BOX HOOD) PART LIST 18, 19 XVII TROUBLE SHOOTING XVIII WARRANTY ROLL & LOAD CABINET ASSEMBLEY 22,23 www.belson.com... -
Page 3: Isafety
Please call customer service 1-800-323-5664 If you have any questions concerning assembly, installation or operation of your grill. PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE. www.belson.com... -
Page 4: Getting Started
When the unit is not in use, the supply L.P. gas cylinder valve must be turned off and all control valves on the instrument panel must be turned to the 'OFF' position. The regulator and hose assembly equipped with the unit must be used at all times. Replace- ment of such assembly must be supplied by BELSON OUTDOORS, INC. www.belson.com... -
Page 5: Safety Practices To Avoid Personal Injury
Propane gas is highly flammable! DO lock both casters when operating the grill unit. DO handle, use, store and transport LP gas cylinders in accordance with NFPA 58. www.belson.com... -
Page 6: Propane Tank Storage, Handling And Filling
CAUTION: Propane is highly flammable! Handle, use, store and transport LP gas cylinders in accordance with NFPA 58. Obtain instructions from your local gas supplier. Use only 40# horizontal Propane cylinder (12" diameter and 29" length), which is supplied with the unit. www.belson.com... -
Page 7: Vconnecting And Disconnecting Your Tank
CONNECTING AND DISCONNECTING YOUR TANK CONNECTING TANK Mount the L.P. tank to the support bracket with (4) 3/8”-16 x 3/4” hex head bolts. The Belson fuel tank will only draw vapor fumes while lying in the horizontal position as shown on the drawing. -
Page 8: Leak Check
Check for leaks at least each time you refill the tank and each time you relocate your grill to a new location. WARNING: Do not smoke while leak testing. Never leak test with an open flame. Do not use the PORTA-GRILL until all connections have been checked and do not leak. www.belson.com... -
Page 9: Lighting Instructions
'OFF' position. Make sure no open flames are present, allow unit to cool. Disconnect the regulator and insert the safety plug back to the tank. Follow all warnings pertaining to storage of propane tanks. (See Section IV "PROPANE TANK STORAGE, HANDLING AND FILLING" Pg. 4). www.belson.com... -
Page 10: Ignitor And Burner Adjustments
The proper mixture of gas and air produces a clean blue flame with slight yellow tips at the burner. The valve flange should be flat against the air mixer as pictured below. Failure to insure this connection may cause fire and result in serious damage to your grill. www.belson.com... - Page 11 TIP 2. Move the meat to another part of the grill that may be at a lower heat setting or OFF. TIP 3. Cook with the lid open to reduce heat inside of grill. TIP 4. EXCESSIVE FLARE-UP: Immediately turn the setting to 'LO' or 'OFF' position, or spray the flame with water. www.belson.com...
-
Page 12: Care And Maintenance
Do not use more than a single layer to avoid blocking off the air for the grill burners to vent. TIP: Excessive water to control flare-ups will cause lava rock to fracture. To help prevent flare-ups, trim off as much fat as possible. www.belson.com... - Page 13 Use a bottle brush, pipe cleaner or long flexible wire to clean out the air mixer. Be extremely careful not to enlarge the hole. TIP: Shine a flashlight through the openings to ensure there is no blockage. CLEAN UNIT THOROUGHLY AFTER EACH USE! www.belson.com...
-
Page 14: Xassembly Instructions (Section C) Grill Installation
If no leaks are present, proceed to Step Open one valve fully 1/4 turn counter-clockwise to 'HI' setting. Depress ignitor button to ignite burner. Light remaining 3 burners as needed. Check all bolted connections periodically for tightness. Check all connections periodically for leaks and tightness. www.belson.com... - Page 15 ASSEMBLY DIAGRAM PG-2460-II TRAILER ADAPTER (SECTION C) GRILL INSTALLATION www.belson.com...
-
Page 16: Assembly Instructions (Section A) Trailer Assembly
Attach adapter box to trailer frame using (4) each 3/8"-16x3" bolts, lock washers and nuts provided. Note: Fender mounting holes are closest to tail lights. Attach fenders to adapter box using (4) each 3/8"-16x3/4" bolts, lock washers and nuts provided. www.belson.com... -
Page 17: Assembly Diagram (Section A)
XIII ASSEMBLY DIAGRAM PG-2460-AI, ALL TRAILER ADAPTER (SECTION A) TRAILER ASSEBMLY www.belson.com... -
Page 18: Trailer Light Kit
The bright stop lights should come on only when the brake pedal is depressed, or when turn signal is activated. (Key must be in 'ON' position). If lights do not light, check all ground connections, If turn signals do not operate properly, check connectors between vehicle wiring and trunk connector. www.belson.com... -
Page 19: Assembly Instructions (Pg-200 Bread Box Hood)
1/2” pivot pins one side at a time. With front of the hood in half open position, install the thermometer, using the retaining clip provided to hold the thermometer in placed. Retaining hair pins should be attached to hood pivot pins. www.belson.com... -
Page 20: Part List
PART LIST MOBILE-II PART LIST ITEM PART NUMBER QTY/FIX DESCRIPTION NUMBER PG-II-FB FIREBOX PG-INST2 INSTRUMENT PANEL PI-BNRBRKT2 BURNER SUPPORT BRACKETS PI-PGIIBNR BURNER TUBES – STAINLESS STEEL PI-GRLSPT GRILL GRATE SUPPORTS PG-IILRG LAVA ROCK GRATES PG-2460G NICKEL PLATED COOKING GRATE PG-200... - Page 21 PART LIST DIAGRAM www.belson.com...
-
Page 22: Trouble Shooting
Filled weight of tank and gas should not exceed 70 lbs. SOLUTION: If cylinder appears to be properly oriented and freezing persists disconnect gas line from cylinder and bring the tank to a authorized L.P. tank distributor to bleed off excess gas. www.belson.com... -
Page 23: Warranty
XVIII WARRANTY Belson Policies We at Belson take extreme care to ensure that your shipment arrives in acceptable condition. When your shipment arrives, the carrier will provide you with a delivery receipt. It is vital that you count the number of pieces being delivered and inspect for damages prior to signing the this document. -
Page 24: Roll & Load Cabinet Assembley
1) Attach baskets to the drum by inserting baskets into the outer drum first. 2) Load and unload baskets symmetrically in order to maintain a balanced load. If a basket is partially loaded; place the load at both ends. Do Not load in the center only. www.belson.com... - Page 25 www.belson.com...
