Electrical; Installation - Main MULTIPOINT FF User Operating, Installation And Servicing Instructions

6 720 607 160
See Fig. 8.
11.1
11.2 It must be possible to completely isolate the
appliance.
11.3 The following connection alternatives must be used:
A 3 amp fused three-pin plug and unswitched shuttered
socket outlet (both complying with the requirements of BS
1363) or a double pole isolator with a contact separation of
3mm in all poles and supplying the appliance and controls
only.
11.4 The appliance must be earthed.
11.5 Mains Cable. 0.75mm
Table 16.
11.6 The wiring between the appliance and the electrical
Fig. 9
supply must comply with current IEE Wiring Regulations
and any local regulations which apply.
11.7
After installation or in the event of an electrical fault the
electrical system shall be checked for short circuits, fuse
failure, incorrect polarity of connections, earth continuity
and resistance to earth.
The installation must be carried out by a competent person.
12. 1 INITIAL PREPARATION
12. 1 . 1 Unpack the appliance and take care to remove the
Fig. 10
12. 1 .2 Lay the appliance on its back, unfasten the two
Fig. 11

11. Electrical

MAINS SUPPLY.
230 V ~, 50 Hz, 65 watts.
SAFETY CHECK.

12. Installation

fascia and the installation kit which are located on the
top and on the bottom of the polystyrene packing. Remove
the White painted Flue Elbow inclusive of sealing rings.

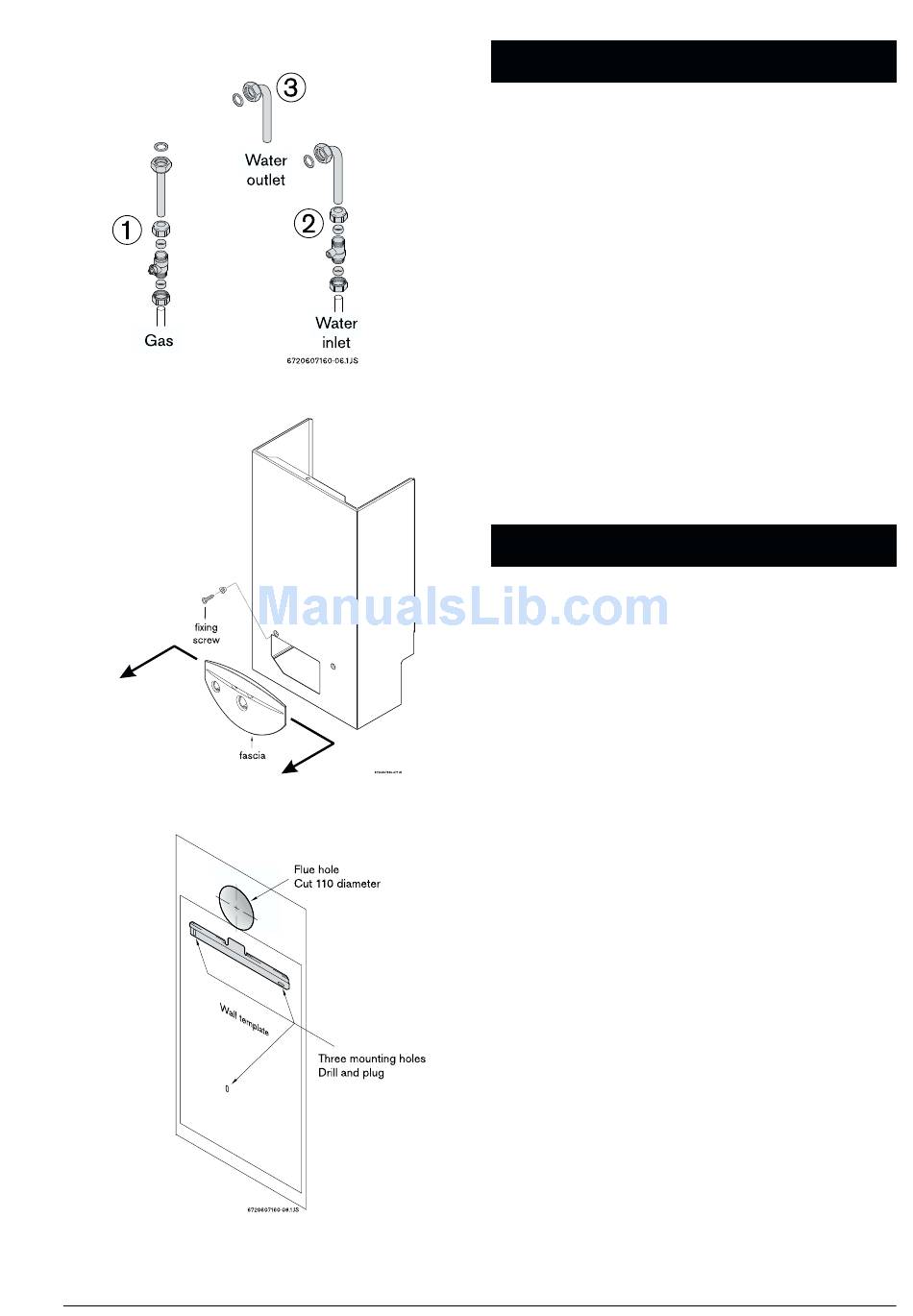

The installation kit (Fig. 9) consists of the following:
Gas inlet:
1x Flanged Copper Pipe, Compression Nut, fibre washer
1x Isolation valve, 2 x Compression nuts and Olives
Water Inlet:
1x Copper inlet elbow, Compression Nut, fibre washer
1x Isolation valve, 2 x Compression nuts and Olives
Water Outlet:
1x Copper inlet elbow Compression nut, Fibre washer
retaining screws and lift the case clear (Fig. 10).
Place the paper mounting template in the required
location on the wall and mark the positions of the flue
and the three mounting holes (Fig. 11).
Cut the flue hole and drill and plug the mounting holes.
Fix the wall mounting bracket, hang the appliance and
secure to the wall through the hole located in the valve
mounting bracket. To increase access to this area of the
appliance the control box may be temporarily re
positioned, depress the two curved finger tab latches on
top of the control box and withdraw forward. Use the
integral moulded hooks to hang the control from the
combustion box.
2 (24 x 0.20mm) to BS 6500
13
