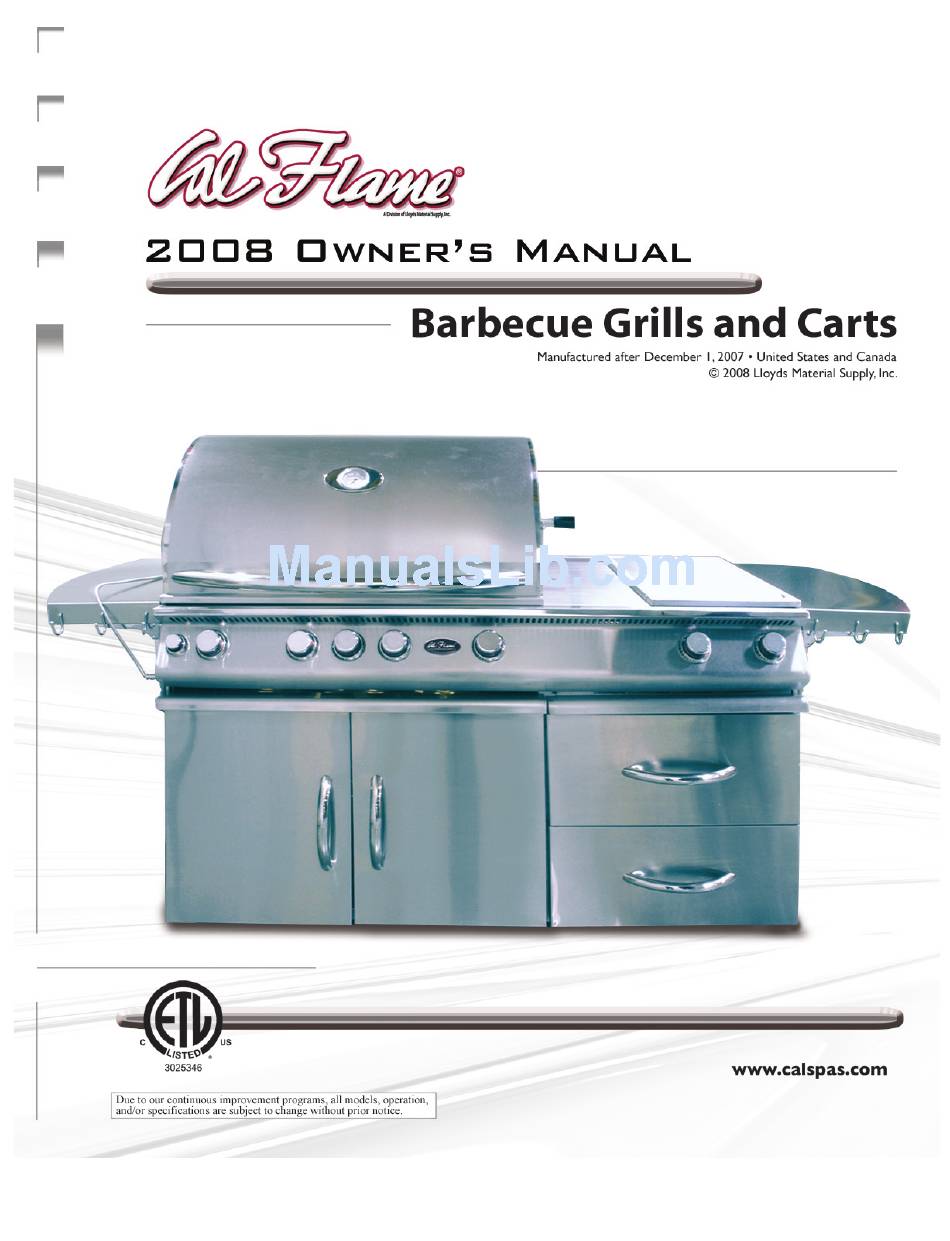

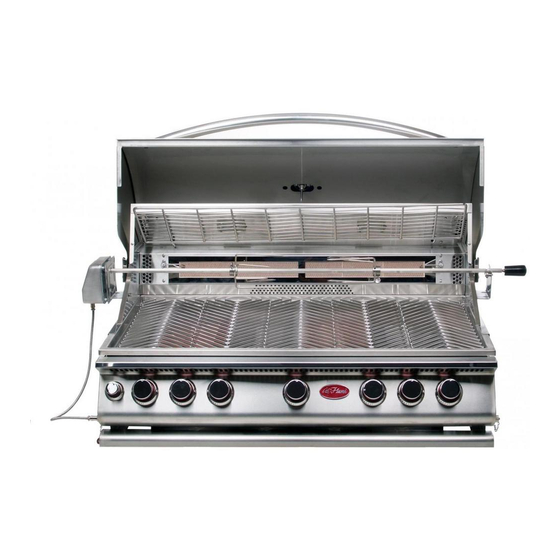

  • Page 1 LTR20081038, Rev. B 7/1/08...

  • Page 2: Table Of Contents

    2008 Warranty . . . . . . . . . . . . . . . . . . . .

  • Page 3: Safety Instructions

    • Never use the grill or side burner in windy conditions. gas supplier or your fire department. If used in a consistently windy area a windbreak 2008 Barbecue Grill and Cart Owner’s Manual Page 1 LTR20081038, Rev. B...

  • Page 4: Maintenance And Repair

    When using the grill, do not touch the grill rack, • Do not exceed 50 pounds of weight on the foldout burner grate, or immediate surroundings as these work surfaces. Page 2 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...

  • Page 5: Installation / Assembly

    BBQ07842P-18 18” Cocktail Center 17 ½” 24 3/8” 10” BBQ07902 30” Drop-in Bar Center 28 ¾” 22 ¾” 12” BBQ08877P Pizza Oven 17 1/2” 23 ¼” 9 1/2” 2008 Barbecue Grill and Cart Owner’s Manual Page 3 LTR20081038, Rev. B...
  • Page 6 30” Warming Drawer 28 ¾” 20 ½” 10” BBQ07891P Cutting Board and Drawer 13 ½” 19 ½” 3” BBQ08967P 110V Electric Pizza Oven 28 ½” 21 ½” 10” Page 4 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...
  • Page 7 Grill Steam Cleaner 10 ¾” 19 ¾” 17 ½” BBQ08865 1 Pull Out Drawer 21 ½” 23” 22” Refrigerator BBQ07850P Outdoor Beverage Cooler 21 ¼” 23 ½” 34 ¼” 2008 Barbecue Grill and Cart Owner’s Manual Page 5 LTR20081038, Rev. B...

  • Page 8: Gas Requirements And Connection

    LP gas dealer. LP systems, turn the cylinder valve knob counter clockwise one turn to open. Do not use the appliance until the leak is corrected. Page 6 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...

  • Page 9: Lp Gas

    LP-gas supply area. cylinder in place. This shall be accomplished in one of the following manners: One side of the enclosure shall be completely open. 2008 Barbecue Grill and Cart Owner’s Manual Page 7 LTR20081038, Rev. B...

  • Page 10: Natural Gas

    The grill and its individual shutoff valve must be seal the leak, it may be necessary to replace the flex disconnected from the gas supply piping system during hose. Page 8 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...

  • Page 11: Installing The Transformer

    Attach the metal plate to the outside grill. Screw on the stainless steel retainer. surface of the grill as shown in the figure below. 2008 Barbecue Grill and Cart Owner’s Manual Page 9 LTR20081038, Rev. B...

  • Page 12: Installing Grills In Barbecue Islands

    If the grill is not level or is unstable, use non-combustible shims under the outside lip to stabilize it. Perform the leak test procedure as described earlier in this manual. Page 10 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...

  • Page 13: Installing Side Burners

    NOTE: You will need to use a gas rated sealer on gas connectors that are not flared. sealer on gas connectors that are not flared. GAS LINE GAS LINE 2008 Barbecue Grill and Cart Owner’s Manual Page 11 LTR20081038, Rev. B...

  • Page 14: Using Your Grill

    CAUTION: NEVER spray water on a hot gas unit. This may damage porcelain or cast iron components. Page 12 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...

  • Page 15: Lighting The Grill

    If the burner does not light after several attempts see Slide out the drip tray from the grill. Troubleshooting Guide in the back of this manual. Keep your face as far away from the burners as possible. 2008 Barbecue Grill and Cart Owner’s Manual Page 13 LTR20081038, Rev. B...

  • Page 16: Basic Grill Operation

    The orange/red (never use nylon or plastic string). Place a basting glow will even out in about five minutes. pan under the food to collect the drippings. Page 14 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...

  • Page 17: Cooking With A Convection Grill

    The fan switch is located at the far left of the front panel of the grill. INTAKE VENTS INTAKE VENTS EXHAUST VENTS HEAT THAT IS DRAWN IN FROM THE BACK. IT IS THEN REDISTRIBUTED FRONT VIEW OF GRILL Intake/Recirculation Fan 2008 Barbecue Grill and Cart Owner’s Manual Page 15 LTR20081038, Rev. B...

  • Page 18: Charcoal Grill

    DO NOT cut or remove the ground prong as this may result in fire, electrical shock or other personal injury. This electrical source provides power to the lights. Page 16 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...

  • Page 19: Griddle

    230ºF. 2008 Barbecue Grill and Cart Owner’s Manual Page 17 LTR20081038, Rev. B...
  • Page 20 Page 18 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...

  • Page 21: Cleaning And Maintenance

    Make sure to rinse thoroughly to avoid staining. • Dry with a soft, dry, clean towel if preferred. 2008 Barbecue Grill and Cart Owner’s Manual Page 19 LTR20081038, Rev. B...

  • Page 22: Griddle

    Be sure to rinse thoroughly and to wipe dry to avoid water. The external surfaces may be cleaned in the watermarks. same fashion. Wipe all area dry before storing. Page 20 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...

  • Page 23: Light Bulb Replacement

    Tighten the two screws on the side white ceramic light fixture. Carefully replace the light cover by snapping it in place. 2008 Barbecue Grill and Cart Owner’s Manual Page 21 LTR20081038, Rev. B...

  • Page 24: Appendix

    If the flame is golden or yellow in color, the reason could be seasoning salts, oil film, or other foreign matter on the burner. Page 22 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...
  • Page 25 ‘OFF’ position. Wait until the grill has cooled off and then clean the burner tubes and burners as described on page of this manual. 2008 Barbecue Grill and Cart Owner’s Manual Page 23 LTR20081038, Rev. B...

  • Page 26: Replacement Covers

    COVER, GRILL, LARGE, 5 BURNER BBQ013 COVER, SIDE BURNER, SINGLE & DOUBLE Cal Flame Carts BBQ835CR4 BARBECUE CART COVER, 4 BURNER, BLACK BBQ835CR5 BARBECUE CART COVER, 3 & 5 BURNER, BLACK Page 24 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...

  • Page 27: Converting From Lp To Ng

    Remove the cap fitting from the end of the NG gas regulator. • Pipe compound Place the cap fitting over the LP gas inlet. Insert the 3/4” flared in the NG gas regulator. 2008 Barbecue Grill and Cart Owner’s Manual Page 25 LTR20081038, Rev. B...
  • Page 28 Main burners 15,000 BTU 1.9mm Infrared burner CF 3 – 5 9,000 BTU #54 DMS Infrared burner CF 4 12,000 BTU #52 DMS Side burner 13,000 BTU #50 DMS Page 26 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...

  • Page 29: Installing And Replacing Infrared Burners

    Reconnect or turn on the gas line. If you want to change back to regular burners, just follow the procedure above in reverse order. 2008 Barbecue Grill and Cart Owner’s Manual Page 27 LTR20081038, Rev. B...
  • Page 30 Page 28 2008 Barbecue Grill and Cart Owner’s Manual LTR20081038, Rev. B...

  • Page 31: 2008 Warranty

    Extent of Warranty This 2008 Cal Flame Warranty is only valid on Cal Flame models delivered in the United States or Canada and extends through the selling dealer to the original purchaser at the original site of installation. This warranty becomes valid at time of purchase and ends either by specified time-frame listed above or upon owner transfer or relocation.

  • Page 32: Location Of Serial Number Plate

    See your Cal Flame barbecue dealer for a copy of the • Damage caused by continued operation of the applicable warranty, details and any questions you barbecue with either known or unknown problems. may have regarding the warranty coverage on your •...
