Manually launch the scanning software, and scan in the document.
1
Save the scanned image as a Windows bitmap (*.bmp) file.
2
Run the Dr. STIKA PLUS [Import] command and acquire the bitmap file. For information on importing a file in bitmap (BMP)
3
format, see " Importing a Windows Bitmap File."
Conditions for data that yields attractive cutting results
Boundaries between two colors should be sharp and well defined, with no continuous gradations. Using only the two
values of white and black is recommended.
(In general, a higher resolution yields outlining of greater accuracy. The optimal resolution varies according to a shape's complexity
and size when cut. However, it takes longer to import high-resolution data into Dr. STIKA PLUS than low-resolution data.)
The scan resolution should be high.
(In general, a higher resolution yields outlining of greater accuracy. The optimal resolution varies according to a shape's complexity
and size when cut. However, it takes longer to import high-resolution data into Dr. STIKA PLUS than low-resolution data.)
The size of the original art being scanned should be the same as the size when cutting.
(Results of cutting that are more attractive than the original art are not obtained when an image smaller than the cut image is im-
ported and then enlarged with Dr. STIKA PLUS. To help ensure attractive results of cutting, start with a larger object and reduce it to
the desired size.)
For details, please refer to the help screens for Dr. STIKA PLUS.

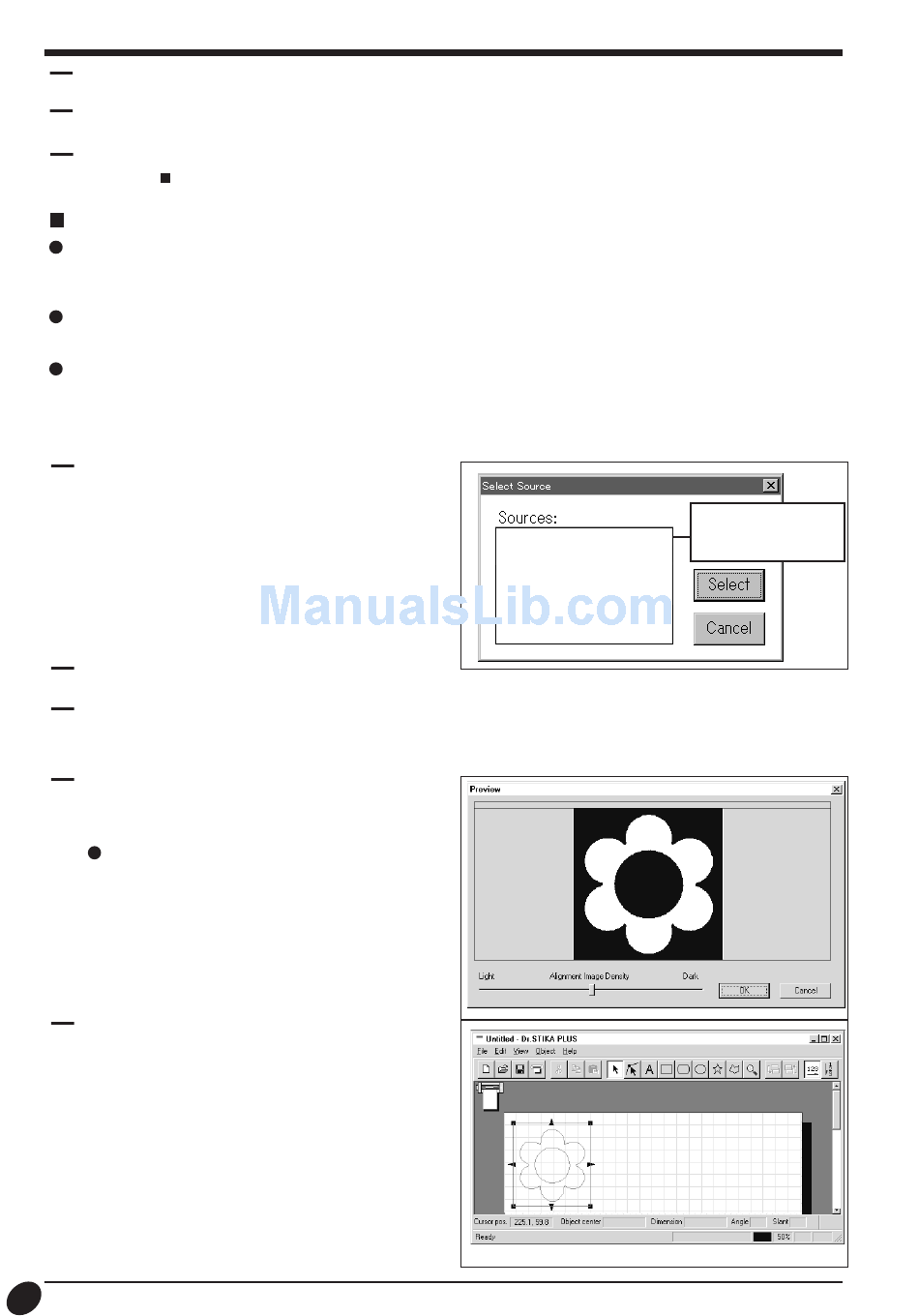

At the [File] menu, click [Select Source...] to display the
1
screen shown at right.
Select the driver for the scanner.
If a TWAIN driver and a TWAIN_32 driver are both
installed, select the TWAIN_32 driver.
Load the original document on the scanner.
2
From the [File] menu, click [Acquire...]. Launch the
3
scanning software. For information on how to do this,
please refer to the documentation for the scanner.
When the scanning is finished, the scanned data is imported
4
into Dr. STIKA PLUS. The [Preview] dialog box appears.
Make sure the information in the dialog box is correct and
click [OK].
If the extracted outline of the displayed item is not
attractive, use a scanner to import the data again,
referring to the "Conditions for data that yields attractive
cutting results" as you do this.
The outlined object appears on screen.
5
Adjust the size and positioning.
28
The name of the installed
driver for the scanner is
displayed.
