Pioneer Recorder Start Here Manual page 5

...continued from page 4
Serial Control
Connect Serial Control cable
Plug the Serial Control cable into
the 9-pin Serial (Data) connector:
on the back of your satellite receiver or cable box
(see in the setup diagram on page 4). Plug the
other end into the Channel Change/Serial
connector (the lower mini-jack) on your Recorder.
µ
Now skip to step .
IR Control
Connect IR Control cable
If you didn't use Serial Control, plug the purple end
of the IR Control cable into the Channel Change/IR
connector (the upper mini-jack) on the Recorder.
This cable allows the Recorder to change channels
by sending infrared (IR) signals to the cable box or
satellite receiver.
Locate IR sensor on cable box or satellite
receiver
You must locate the IR sensor on the front of the
cable box or satellite receiver. It's a tiny round
bulb; if you shine a flashlight into the plastic
"window," you can see it.

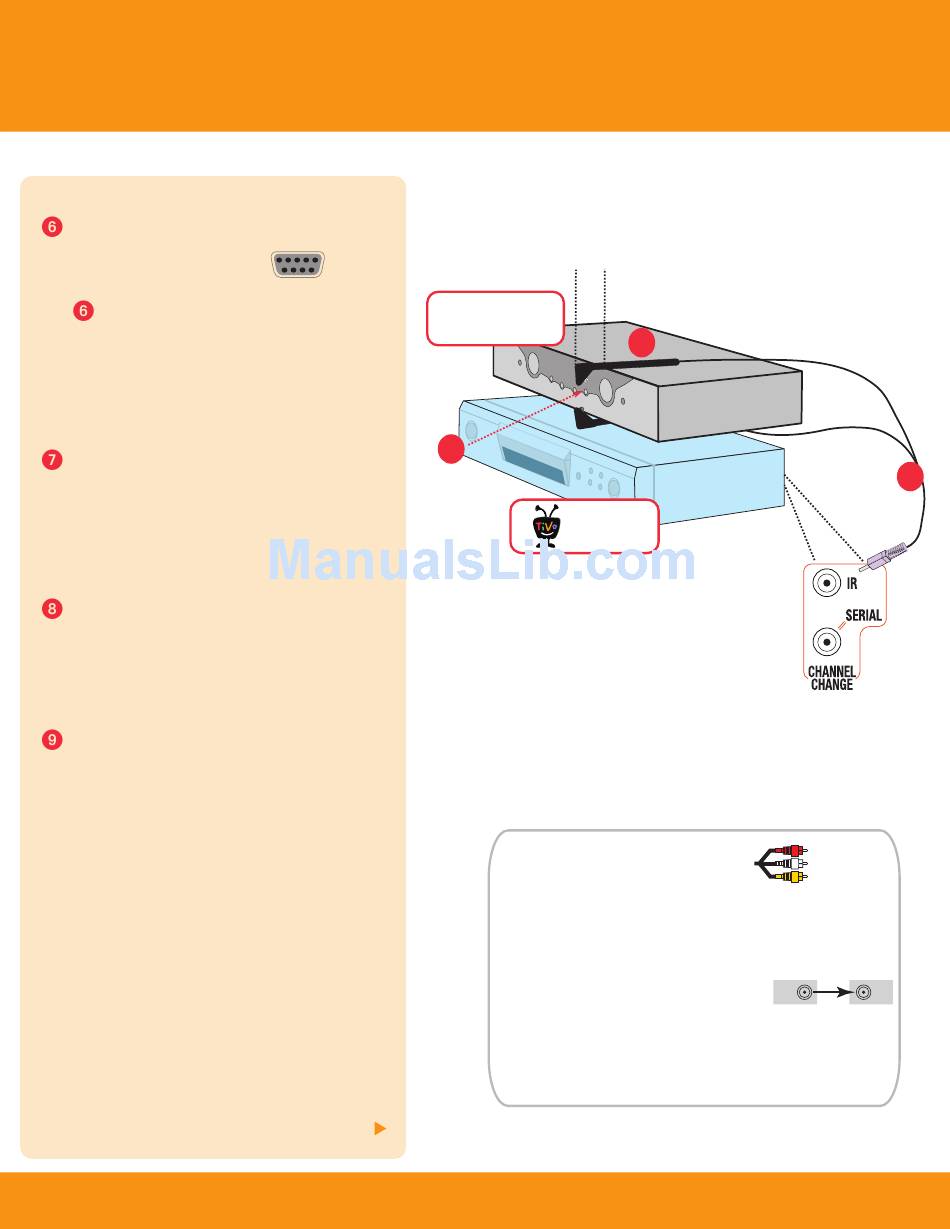

Mount IR emitters onto cable box or satellite
receiver
Mount the emitters in front of the IR sensor (one on
top of the box and one on bottom). Be sure both
emitters stick out about 1 ½ inches directly in
front of the IR sensor. Then use the adhesive strips
provided to keep them in place.
µ
Now continue with step .
µ
Plug in all power cords
¸
Tune TV (if necessary) to see the
Welcome screen
Turn on your TV. If you do not see the Welcome
screen displayed, use the Input, Source, or
TV/Video button on your TV to select the correct
audio/video source. Press the button until the
Welcome screen is displayed.
Now go to page 6
extends 1½ "
Cable Box or
Satellite Receiver
b
Recorder
®
Tips and Alternatives
• This setup shows Composite A/V cables
or a/v receiver has other audio and video connections, you
might prefer to use S-video, Component Video, or Digital Audio
cables (not supplied). See the Installation Guide for details.
• Want to watch one channel while recording another? See the
Installation Guide for details.
•
Remember to connect the OUT connector
of one device to the IN connector of the next.
•
After you complete Guided Setup, you'll be able to connect
your Recorder to a home network and use a shared broadband
Internet connection instead of a phone line to make connections
to the TiVo service. See Chapter 8, "Connecting to a Home
Network," in the User's Guide.
c
. If your TV
OUT
a
IN
5
