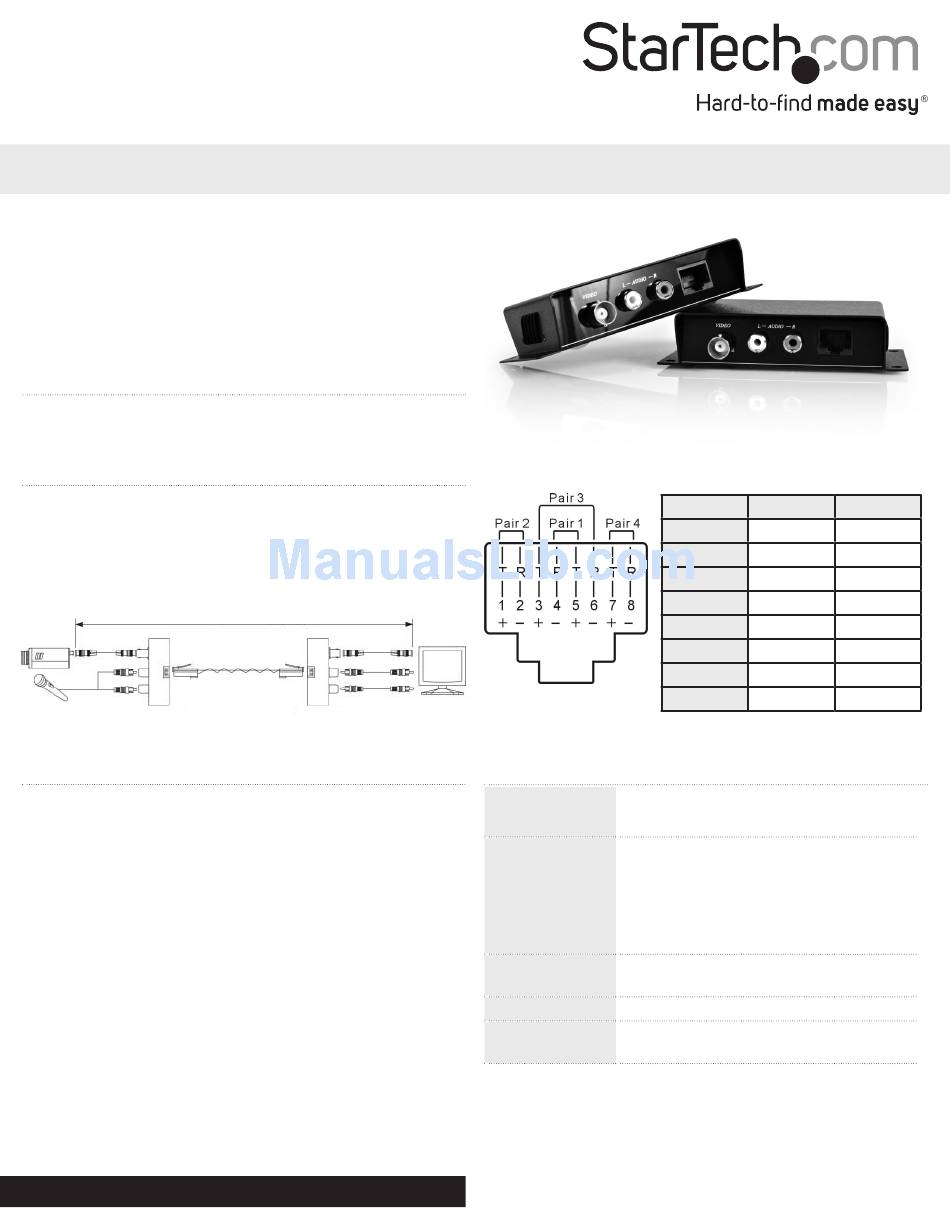

Instruction Manual
Composite Video Extender over Cat 5 with Audio
COMPUTPEXTA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• Composite Video Extenders (local and remote ends) (2)
• Installation/Mounting Kit (1)
• User Manual (1)
System Requirements
• A Composite Video Source
• An RCA (component) audio source
• Input and output Component Video cables and RCA audio cables
• A display with an available Composite Video input
• RCA (composite) audio playback availability
COMPUTPEXTA
(Local)
Basic Setup
1. Connect the Composite Video cable to the output on the back of
the video source.
2. Connect the opposite end of the Component Video cable used in
Step 1 to COMPUTPEXTA local unit.
3. Connect the RCA(composite) audio cable to the RCA audio ports
on the audio source.
4. Connect the opposite end(s) of the RCA audio ports on the
COMPUTPEXTA local unit (marked L-Audio-R)
5. Connect the Cat5 cable to the RJ45 port on the COMPUTPEXTA
local unit.
6. Connect the remaining end of the Cat5 cable to the RJ45 port
located on the COMPUTPEXTA remote unit.
7. Connect the second Composite Video cable to the COMPUTPEXTA
remote unit
8. Connect the remaining end of the Composite Video cable to the
video display (e.g television, VCR, etc.)
9. Connect the second RCA (Composite) audio cable(s) to the
COMPUTPEXTA remote unit.
10. Connect the remaining end of the second RCA (composite) audio
able to the audio output (e.g television, stereo receiver etc.)
For the most up-to-date information, please visit: www.startech.com
COMPUTPEXTA
(Remote)
Specifications
Certifications
(Regulatory etc.)
Connectors
Dimensions
(LxWxH)
Weight
Maximum
Resolution
*actual product may vary from photos
Pin
Colour
Function
1
W-O
2
O
3
W-G
4
BL
5
W-BL
6
G
7
W-BR
8
BR
FCC, CE, WEEE, RoHS
Input: 1 x RJ45
1 x Stereo Audio RCA
1 x BNC female
Output: 1 x RJ45
1 x Stereo Audio RCA
1 x BNC female
110 x 77 x 24mm
Weight 460g (1.014 lb)
480i
Manual Revision: 02/23/2012
S2
S1
Audio +
A1
A2
Audio -
Video +
Video -
