Itona TC61yy
Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Itona TC61yy and is the answer not in the manual?

Questions and answers

Related Manuals for Vxl Itona TC61yy

Summary of Contents for Vxl Itona TC61yy

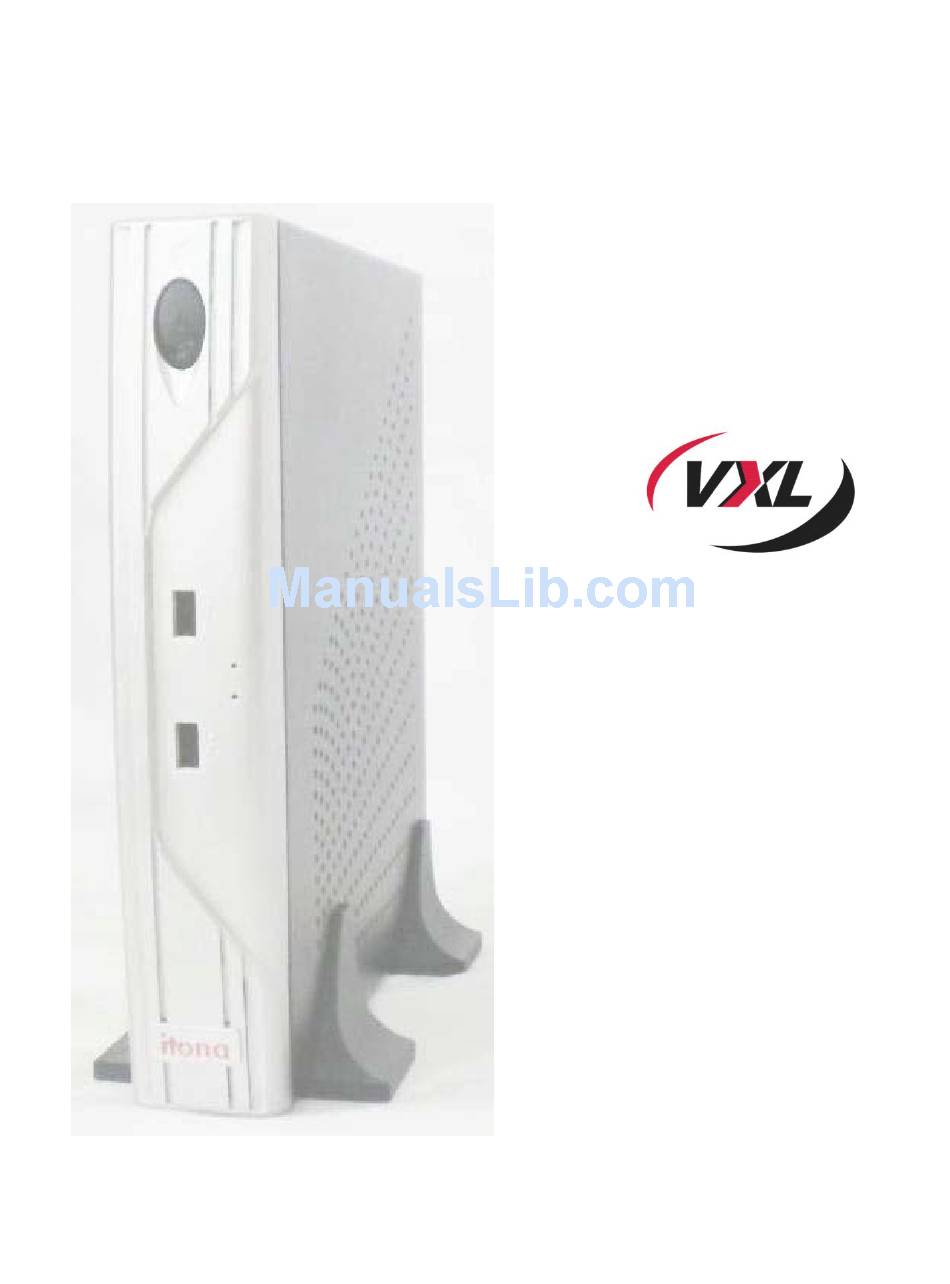

  • Page 1 Itona TC61yy Service Manual...
  • Page 2 Copyright © 2004-2013 VXL Instruments Limited. All Rights Reserved Information in this document is subject to change without notice and does not represent a commitment on the part of the manufacturer. No part of this guide may be reproduced or transmitted in any form or means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of the manufacturer.

  • Page 3: Table Of Contents

    Table of Contents Tools Required Thin Client Bracket Removing the thin client from the bracket Removing the Side Cover and Bezel Fixing the Bracket and Side Cover Replacing Connectors and Cables Replacing ATX Power Connectors Replacing SATA Cables Replacing SATA Hard Disk Replacing RAM Replacing the Motherboard Removing the Power Supply Unit...
  • Page 4 Warning and Caution Statements Warning: It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components (Motherboard, RAM and Power Supply). Warning: Please ensure that the power supply is switched off before unplugging the power supply connector from the motherboard. Caution: Memory modules have a foolproof insertion design.

  • Page 5: Tools Required

    Tools Required The tools required for servicing the Itona TC74yy Thin Client are shown in Figure 1. Figure 1: Tools Required A. HEX Screwdriver E. Hot Glue Gun with rod B. Star Screwdriver F. Isopropyl Alcohol ((CH CHOH) C. Nut Driver D.
  • Page 6 B. Phillips screw driver C. Hex Nut driver 5.0 mm D. Nose pliers with spring Tools Required...

  • Page 7: Thin Client Bracket

    Thin Client Bracket Removing the thin client from the bracket The procedure to remove the thin client from the bracket is explained in this section. To remove the thin client from the bracket: 1. Turn off the power to the client. 2.

  • Page 8: Removing The Side Cover And Bezel

    Removing the Side Cover and Bezel The procedure to remove the side cover and front bezel of the client is explained in this section. To remove the and side cover: 1. Using the star screwdriver (Item B in Figure 1) unscrew the 2 screws as shown in Figure Figure 4: Side Cover Screws Note: Retain the screws for future use.

  • Page 9: Fixing The Bracket And Side Cover

    Figure 6: Front Bezel Fixing the Bracket and Side Cover To fix side cover and power adapter: 1. Gently press the side cover downwards. 2. Using the star screwdriver (Item B in Figure 1) tighten the two screws holding the side cover.

  • Page 10: Replacing Connectors And Cables

    Replacing Connectors and Cables Replacing ATX Power Connectors 1. Remove the power adapter and side cover . For more information see Removing the Side Cover on page 4. 2. Unplug the ATX power connector as shown in Figure 7 Figure 7: ATX Connector 3.

  • Page 11: Replacing Sata Cables

    Replacing SATA Cables 1. Unplug SATA power cable as shown in Figure 9. Figure 9: SATA Power Cable 2. Unplug the SATA data cable as shown in Figure 10: SATA Data Cable Replacing Connectors and Cables...

  • Page 12: Replacing Sata Hard Disk

    Replacing SATA Hard Disk To replace SATA hard disk: 1. Remove the power adapter and side cover . For more information see Removing the Side Cover on page 4. 2. Using the star screwdriver ( Item B in Figure 1) unscrew the HDD bracket screws as shown in Figure 11 and Figure 12 .
  • Page 13 Figure 13: SATA Hard Drive Bracket 4. Remove the rubber bushes and Mylar sheet. Figure 14: Rubber Bush and Mylar Sheet 5. Replace the old hard drive with a new one. Replacing SATA Hard Disk...

  • Page 14: Replacing Ram

    Replacing RAM To replace RAM: 1. Remove the power adapter and side cover . For more information see Removing the Side Cover on page 4. 2. Apply isopropyl alcohol on the glue holding the RAM, pull the glue out using the nose pliers. Figure 15: RAM Socket Clips 3.
  • Page 15 4. Place the new RAM on the socket. Note: Ensure that the new RAM is of the same dimensions as the existing RAM. 5. Slide the RAM downwards until the clip at each end of the socket lock into position. Note: You will hear a distinctive click sound, indicating that the module is correctly locked into position.

  • Page 16: Replacing The Motherboard

    Replacing the Motherboard To replace the motherboard: 1. Remove the power adapter and side cover. For more information see Error! Reference source not found. on page Error! Bookmark not defined. 2. Remove the motherboard screws as shown in Figure 17. Figure 17: Motherboard Screws 3.

  • Page 17: Removing The Power Supply Unit

    Removing the Power Supply Unit To replace the power supply unit: 1. Disconnect the ATX power supply cable as shown in the Figure 19. Figure 19: ATX Power Supply 2. Using the star screwdriver ( Item B in Figure 1), unscrew the three screws holding the power supply unit as shown in Figure 20: AC Figure 20: AC Power Unit Screws Note: Do not remove the earth connection (The green yellow wire).
  • Page 18 Figure 21: Power Supply Unit 4. Remove the wires connected to the power supply unit. You may replace a new unit in its place. Figure 22: Power Supply Unit Wires Removing the Power Supply Unit...
