- Page 1 DCT-17 4 by 1 Optical Audio Switcher with IR Remote Operation Manual DCT-17...
-
Page 2: Copyright Notice
Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. Features ..................1 5. Specifications ................2 6. Operation Controls and Functions ..........3 Top Panel ..............3 Right Panel ..............3 Rear Panel ..............4 7. Connection and Installation . -
Page 5: Introduction

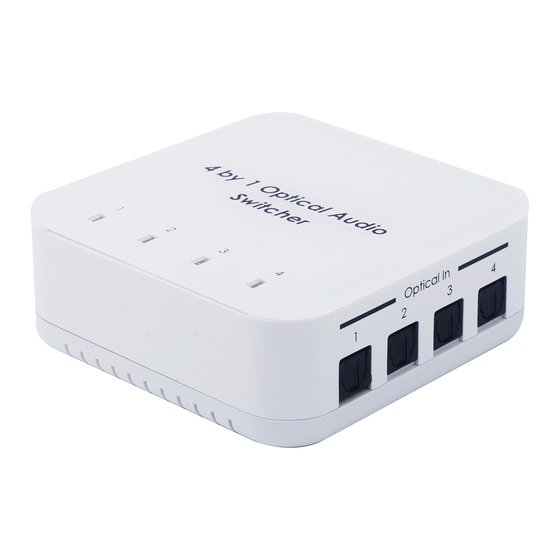

1. Introduction The 4 by 1 Optical Audio Switcher is a device with four optical inputs and one optical output. This device allows users with multiple optical sources connection for one output display. All signal are bypass and without delay or configuration. The device is built with last memory function and IR remote control which ease users with friendly using. -
Page 6: Specifications
6. Specifications Input Ports 4 x Optical Sample Frequency Up to 192 kHz Output Port 1 x Optical Audio Format PCM2, AC3/5.1, Dolby 5.1 & DTS 5.1 pass through Power Supply 5V / 1A DC ( US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Top Panel Input 1~4: The LED will illuminate in blue when selected the source. ① Optical In: These slots are to connect with input source equipments such as DVD/Blue-Ray player for audio input signal sending. -
Page 8: Rear Panel
7.2 Left Panel Power: Press this button to turn on the device or to set it to standby ① mode. The blue LED on the top panel will illuminate when the device is turn on. Input: Press this button to select the input port from 1~4. The blue LED on ②... -
Page 9: Connection And Installation
8. Connection and Installation Blu-ray Active Speaker Amplifier... - Page 10 Acronyms Acronym Complete Term...
- Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw MPM-DCT17...
