- Page 1 Digital Optical Audio Switcher Operation Manual DT-21...
- Page 2 TABLE OF CONTENTS 1. Introduction................2. Main Features................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................3.3 Side Panel................4. Connection and Installation............. 5. Specifications................
-
Page 3: Main Features

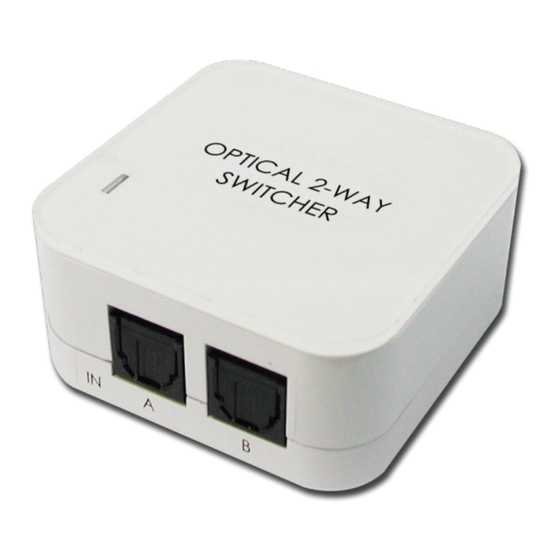

1. Introduction Digital Optical Audio Switcher is designed for the audio signal selection from two digital optical inputs to one output, using TOSLink (Optical Fiber) cables. The Optical Fiber cables connected to both ends of the unit can run up to 5 meters while still provide reliable and lossless audio signal transmission. -
Page 4: Operation Controls And Functions
3. Operation Controls and Functions 3.1 Front Panel 1 TOSLink (Optical Fiber) Input Ports A and B: Connect the TOSLink input ports to the TOSLink output port of audio equipments such as audio amplifier, AV receiver or DVD player. 3.2 Rear Panel OPTICAL 1 TOSLink (Optical Fiber) Output Port: Connect the TOSLink output port to the TOSLink input port of audio equipment such as audio amplifier and AV... -
Page 5: Connection And Installation
4. Connection and Installation A/V Receiver Audio Amplifier 5. Specifications Input ports 2 x TOSLink (Optical Fiber) Output port 1 x TOSLink (Optical Fiber) Power Supply 5V/0.36~0.5A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 46(W) x 45.5(D) x 23.5(H) Weight(g) Chassis Material Plastic Silk Skin Color... - Page 7 2008.1.11 MPM-DT21...
