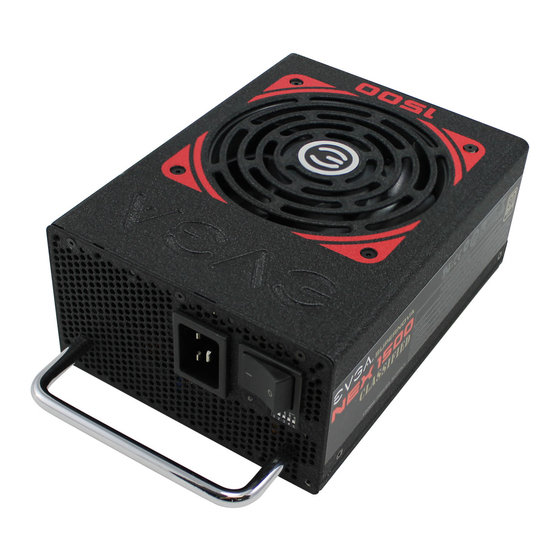

Summary of Contents for EVGA NEX1500
-
Page 2: Table Of Contents
WARNING: This unit has no user-serviceable parts inside. Opening the casing presents a risk of electrocution and will void the warranty. EVGA will not be responsible for any result of improper use, use for which the product was not intended, or use inconsistent with the warranty terms (available for review at www.evga.com/support/warranty) and this manual (also available at www.evga.com/support/manuals). -
Page 3: Features
EVGA SUPERNOVA The NEX-1500 is compatible with the unique and exclusive EVGA SuperNOVA software that lets you monitor and control your power supply from your desktop. Monitor and adjust voltage, change fan speed, and even switch between single and multiple rails! TOP TIER PERFORMANCE 4. -
Page 4: Advanced Features
– DIP switch #2. 2x SATA 5 pin x3 (650mm) SATA1 Note: EVGA “OC Mode” will only work with 230VAC input. If user activates OC Mode on 115VAC input the OC 1x SATA 5 pin x3 (550mm) Black +12V8 SATA2 Mode will be disabled and the Over Current and Over Power protections will remain set at 1500W. -
Page 5: Specification
Switch Position Function ON Function OFF ATX Power supply +50°C ambient @ full load Turn PSU on w/o motherboard EVGA 120-PG-1500 +40°C ambient @ 110% load Enable OC mode (1650W) Disable OC mode 100-240 VAC 18-10A, 47-63 Hz, IEC 60320 C-20 input connector... - Page 6 E006-00-000034...
