Summary of Contents for Greenlee 758

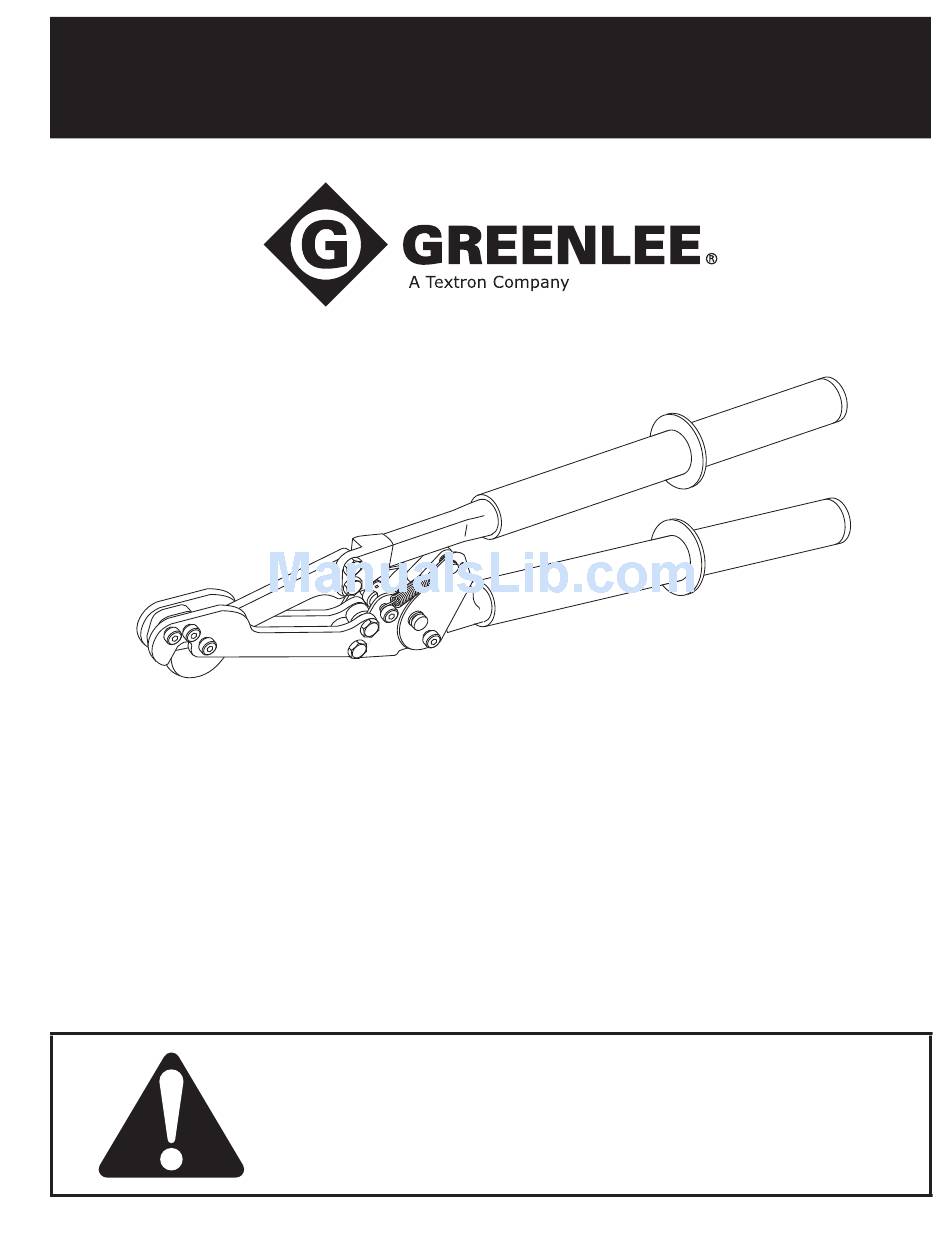

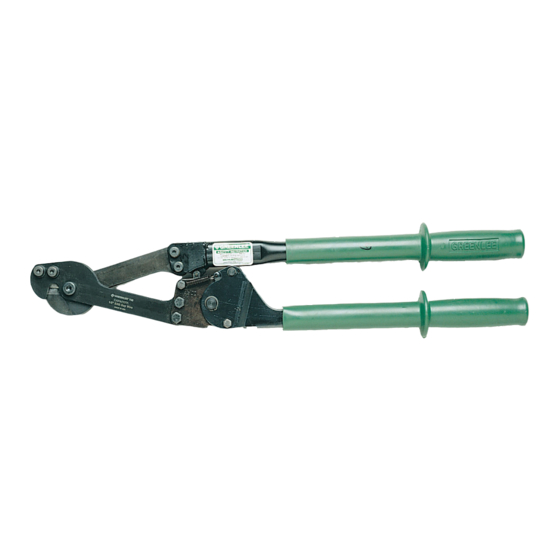

- Page 1 Heavy-duty Ratchet Guy Wire Cutter Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 99921715 © 2012 Greenlee Textron Inc. IM 1267 REV 11 1/12...
-
Page 2: Table Of Contents
All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. Mobilgrease is a registered trademark of Mobil Oil Corp. -
Page 3: Important Safety Information
758 Heavy-duty Ratchet Guy Wire Cutter IMPORTANT SAFETY INFORMATION SAFETY ALERT Wear eye protection when using this tool. SYMBOL Failure to wear eye protection could result in serious eye injury from flying debris. This symbol is used to call your attention to hazards or unsafe practices which could result in an injury or property damage. -
Page 4: Specifications
758 Heavy-duty Ratchet Guy Wire Cutter Specifications Grip Cutterhead Weight ...................4.88 kg (10 lb 12 oz) Length..................... 70.48 cm (27-3/4") Width ....................21.59 cm (8-1/2") Thickness ................... 6.5 cm (2-9/16") Capacity ................... 1/2" EHS guy wire 1/2" mild steel, rods, and bolts Handle force when cutting 1/2"... -
Page 5: Maintenance
758 Heavy-duty Ratchet Guy Wire Cutter Maintenance Disengage the Spring 1. Clamp the long handle (31) into a vise with a short handle (53) parallel to the floor and with the head pointing away from you. Keep hands away from the blades 2. - Page 6 758 Heavy-duty Ratchet Guy Wire Cutter Maintenance (cont’d) Assembly 1. Assemble sprocket pin (51) to one side plate (55). Lay this assembly on the bench with the notched edge of the plate nearest you (see Figure 3). Figure 3 Figure 6 Figure 2 2.
- Page 7 758 Heavy-duty Ratchet Guy Wire Cutter Maintenance (cont’d) 15. With handles remaining in this position, assemble the cutting head to the left handle. The thick spacer (25) goes between the blade holders (see Figure 9). Use the longer bolt (12) and nut (26) and tighten securely.
-
Page 8: Illustration And Parts Lists
758 Heavy-duty Ratchet Guy Wire Cutter Illustration Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 9: Parts List
758 Heavy-duty Ratchet Guy Wire Cutter Parts List Part No. Description Holder, blade ..................... 2 Blade ......................1 Blade, insert ....................1 Screw, ø 3/8 x 1 x 5/16-18 shoulder ............3 Washer, 3/8 heavy lock ................3 Washer, 3/8 flat ..................3 Washer, 5/16 lock .................. - Page 10 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 USA Tel: 800-435-0786 Canada Tel: 800-435-0786 International Tel: +1-815-397-7070 An ISO 9001 Company • Fax: 800-451-2632 Fax: 800-524-2853 Fax: +1-815-397-9247 Greenlee Textron Inc. is a subsidiary of Textron Inc. www.greenlee.com...
