Summary of Contents for Amicroe AMI-TTS10

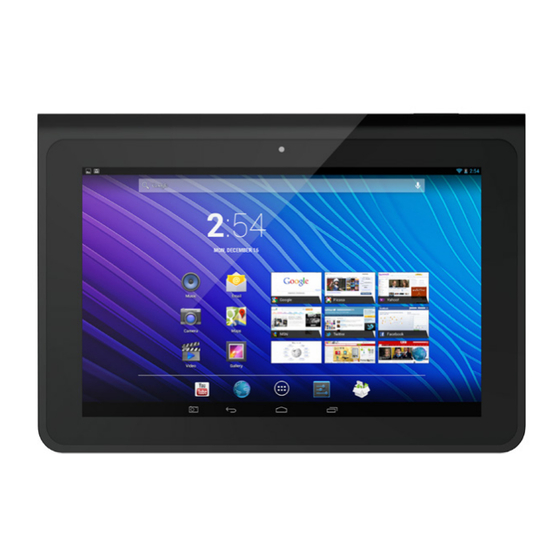

- Page 1 USER MANUAL Model: AMI-TTS10...
- Page 2 This manual contains instructions and notes on the operation and use of this device. For your safety and bene it, read this manual carefully before using the device. Keep this manual in a handy place for quick reference. 1. DO NOT place the product in hot, wet or dusty environment. 2.
-
Page 3: Specifications
Specifications Hardware Software Rockchip 3188 Quad core A9 Processor Android 4.2.2 – Jelly Beans DDR3 1GB RAM Google Browser 10.1” Multi-Touch Capacitive Screen eBook format – TXT, EPUB, PDF, WORD, 1280 x 800 Resolution HD Display EXCEL, PowerPoint (All e-book formats ... -
Page 4: Important Notice
Important Notice 9. Reset Button 10. Volume Up 5. Front Camera 1. Power Button 11. Volume Down 6. Charge Lamp 2. Headphone Jack 12. Rear Camera 7. HDMI Output 3. 2.5mm DC 5V, 2.5A Charging port 13. Micro SD Card slot 4. -
Page 5: Power On/Off
1. Power On/Off To turn the device on. Press and hold the Power button for 5 seconds, the device may take a minute to boot. To place the device in “Standby” mode. Press the power button for 1 second. To turn off the device. Press and hold the Power button until the “power off" confirmation message appears, touch OK to turn off the tablet. -
Page 6: Standby Mode (Screen Off Mode) / Unlock The Screen
3. Standby mode (Screen off mode) / Unlock the screen When the device is powered on, the lock screen will appear. Touch and slide the “Padlock” icon in order to unlock the screen. In “standby” mode, press the power button once to activate the screen and then slide the padlock icon to access the Home Screen. -
Page 7: System Settings
4. System settings Method 1. On the desktop, touch the settings icon to go directly into the settings options. Method 2, On the desktop, touch on the right hand top corner, slide up and select system settings. Page 6... - Page 8 Press System Settings 1. Wireless & networks 2. Bluetooth - Press “Wi-Fi” to turn ON/OFF. - To connect a Bluetooth device, turn ON the The device will automatically search the available Bluetooth setting by toggling the ON/OFF switch. Wi-Fi signals. Select the network you want to connect to.
-
Page 9: Data Usage
2.Data usage 3.More… - Here you can view your current usage, or In this section you will find additional information monitor which applications use the most data. on mobile data, including By moving the white markers, you can select - Airplane mode. specific timelines to review data usage during the - VPN (Virtual Private Networks). - Page 10 4. Sound 5. Display - Press “Sound” to access. - Press “Display” to access display options - Volumes. - Brightness - Silent Mode. - Wallpaper - Ringtone & Notification. - Sleep Options - System Sounds. - Font size Page 9...
- Page 11 6. HDMI 7. ScreenshotSetting - Press ScreenshotSetting to access. - Press HDMI to turn ON/OFF. - Select deley time to capture the screen. - Adjust HDMI output resolution. - Set the location of screenshot storage. - Adjust Screen Zoom. - Show the screenshot button in the statusbar. Page 10...
- Page 12 8. Storage 9. Battery Fig 1 - Select “Storage” to access the device memory - Touch the battery icon to check the battery usage and MicroSD status. status. - To safely remove external storage items such as MicroSD (TF) Cards & external USB Flash Drives, scroll down to “Unmount Storage”...
- Page 13 10. Apps Touch the application that you want to manage. To view and manage installed Applications, press -Select the “Force Stop” button to stop an “Apps” to access options and then slide application running in the background. between: - Select the “Uninstall” button to remove unwanted - “Downloads”...
-
Page 14: Location Access
11. Location access Google’s location service – enables Apps to use data from sources such as Wi-Fi and Mobile Networks to determine your approximate location. Page 13... - Page 15 12. Security Screen lock – Protect your device from unauthorized use by creating a personal screen unlock pattern. Make passwords visible – Show password as you type. Unknown sources - If you want to allow installation of non-Market Applications, Press Unknown sources and presses OK.
-
Page 16: Language And Input
13. Language & input Language – Choose your preferable on-screen language. Spell Checker – Enable onboard spelling correction. Add “Personal Dictionary” words to the onboard Dictionary. Keyboard & Input Methods – Change Keyboard/ Keyboard settings. Turn Google “Voice Typing” ON/ OFF. Language &... -
Page 17: Backup And Reset
14. Backup &Reset 15. +Add account Create your account. After connecting to a Wi-Fi Here you can back-up your data, or if required, network, add your GMAIL account or enter your completely erase the device to clear all contents and restore the device to the original factory default Exchange/ POP/ IMAP to install another email settings. -
Page 18: Date And Time
16. Date & Time 17. Accessibility Adjust the Date & Time according to your time - Select the accessibility options to suit your needs. zone. Touch the “Tick” beside “Automatic Time Zone” to un-tick/ un-lock and set the Time and Region to your local settings. -
Page 19: Developer Options
18. Developer options 19. About Tablet - Identify model, software version and general - Set options for application development. information about your device. Page 18... - Page 20 How to enable USB storage mode/ connection with your Personal Computer. When connected via USB to your PC, on the Tablet Desktop (Home Page) touch the USB symbol located in the top left hand corner of the screen. To enable the USB storage mode, touch the “USB Connected”...
- Page 21 How to enable USB storage mode/ connection with your Personal Computer. (continued) - To disconnect the USB device, touch the “Turn off USB Storage” to disconnect the connection between the devices and then unplug and remove the drive. Important note: *Mass storage mode must be enabled to connect to a PC.
-
Page 22: How To Install Applications (.Apk File) Into The Device
How to install Applications (.apk file) into the device Play Store Button / Icon Method 1. Connect the device to the internet. See “System Settings” 1. (Wi-Fi] in order to establish an internet connection. Touch “Google Play”, set up your account and search for the applications that you’d like to install. - Page 23 How to create Desktop icons & Shortcuts On the Desktop, touch on the Apps Drawer icon (fig 1) to access pre-loaded applications (see next page). You can scroll (swipe) left or right to access and personalize additional screens. Fig 1 Page 22...
- Page 24 How to create Desktop icons & Shortcuts (continued) In the “Apps” drawer, press and hold the desired “App” icon and the Home (Desktop) Screen will appear. You can now move the “App” to your desired location. Shortcuts Widgets Momentarily touch and hold on the desired APK Within the “Apps”...
- Page 25 How to change your Home Screen (Desktop) background Momentarily touch and hold on the desktop, Once you’ve selected your new Wallpaper, Wallpapers options will load, select from one of select “Set Wallpaper”. the galleries to choose a different Wallpaper. Page 24...
- Page 26 How to Change the Keyboard Input Method 1, With the Keyboard on-screen, press the 2, Now you can change settings to suit your needs. Keyboard icon to select Keyboard settings. Page 25...
-
Page 27: Hardware Specifications
Hardware Specifications Operating System Android 4.2.2 – Jelly Beans Rockchip 3188 Cortex-A9 Quad-core Processor SDRAM DDR3 1GB RAM Display 10.1” HD(1280 x 800 pixels) Screen Multi-points Capacitive Touch Screen Storage 16GB onboard storage Audio port 3.5mm Stereo socket USB port Micro USB port (Support USB Host &... -
Page 28: Warranty
Warranty Page 26...
