For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
Safety • Assembly • Operation • Adjustments • Maintenance • Troubleshooting • Parts Lists • Warranty

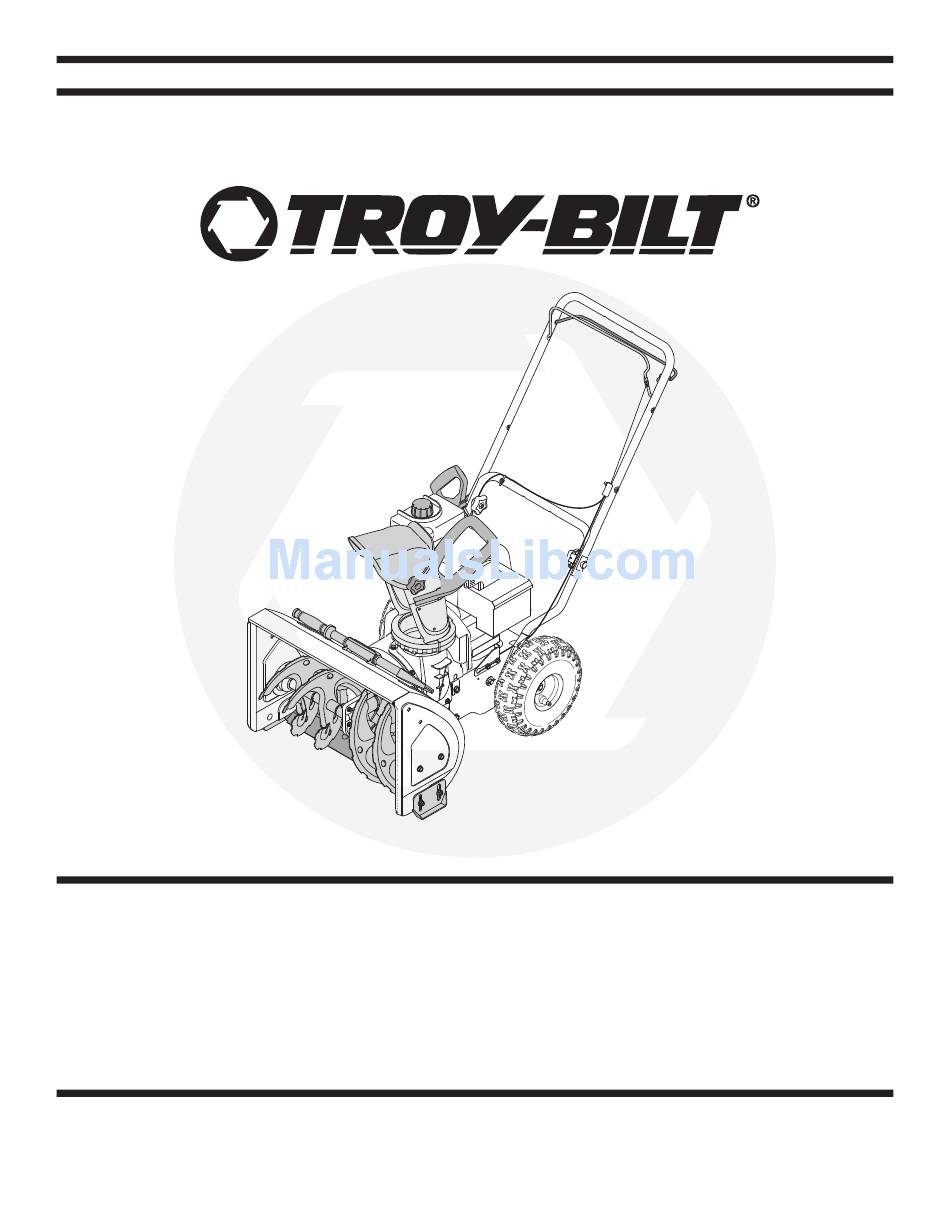

OPERATOR'S MANUAL
IMPORTANT:
READ SAFETY RULES AND
INSTRUCTIONS CAREFULLY
BEFORE OPERATION
PRINTED IN U.S.A.

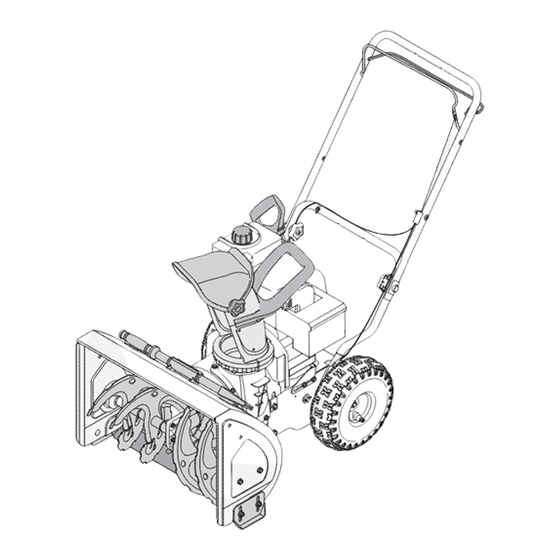

Two-Stage Snow Thrower
P. O. Box 1386, KITCHENER, ONTARIO N2G 4J1
www.mymowerparts.com
www.mymowerparts.com
www.troybilt.ca
769-02511
05/24/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Two-Stage and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Troy-Bilt Two-Stage

Summary of Contents for Troy-Bilt Two-Stage

  • Page 1 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Safety • Assembly • Operation • Adjustments • Maintenance • Troubleshooting • Parts Lists • Warranty OPERATOR’S MANUAL www.troybilt.ca Two-Stage Snow Thrower IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION 769-02511 P.

  • Page 2: Table Of Contents

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 This Operator’s Manual is an important part of your new snow thrower. It will help you assemble, prepare and maintain the unit for best performance. Please read and understand what it says. Table of Contents Safety Labels ............

  • Page 3: Safety Labels

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Étiquettes sécurité ��� �� ��� ��� ��� ��� AVERTISSEMENT Ce symbole attire votre attention sur des consignes de sécurité importantes qui, si elles ne sont pas respectées, peuvent mettre en danger non seulement votre personne et vos biens, mais aussi ceux...

  • Page 4: Safe Operation Practices

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 WARNING: Engine Exhaust, some of its constituents, and certain vehicle compo- nents contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm. DANGER: This machine was built to be operated according to the rules for safe operation in this manual.
  • Page 5 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Operation Maintenance & Storage 1. Do not put hands or feet near rotating parts, in the 1. Never tamper with safety devices. Check their proper auger/impeller housing or chute assembly. Contact with the operation regularly.

  • Page 6: Setting Up Your Snow Thrower

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 IMPORTANT: This unit is shipped WITH OIL and WITHOUT GASOLINE. After assembly refer to separate engine manual for proper fuel and engine oil recommendations. NOTE: Reference to right hand or left hand side of Setup And machine are observed from the operating position.

  • Page 7: Tire Pressure

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Tire Pressure The proper inflation pressure is 20 psi. Check the tire pressure periodically and maintain equal pressure in both tires at all times. Excessive pressure (well above 20 psi) may cause the wheel (tire/rim) assembly to burst with Setting Up High Position...

  • Page 8: Know Your Snow Thrower

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 ����� ������� ����� ������ ����� Know ������� ������� ���� Your Snow �������� ��� Thrower ����� ����� ����� �������� ��� ���� ��������� ���� ����� ������ ����� ���� ���� ��� �������...

  • Page 9: Operating Your Snow Thrower

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Before Starting Engine Follow all instructions carefully. Determine that your house wiring is a three wire grounded system. Ask a ATTENTION: YOU MUST CHECK OIL licensed electrician if you are not certain. If your house LEVEL BEFORE OPERATION.

  • Page 10: To Stop Engine

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 To Stop Engine 6. Confirm that the auger has completely stopped rotating and shows NO signs of motion. • Run engine for a few minutes before stopping to help dry off any moisture on the engine.

  • Page 11: Operating Tips

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Operating Tips Clean-Out Tool WARNING: Never use your hands to • For most efficient snow removal, remove snow clear a clogged chute assembly. Shut immediately after it falls. off engine and remain behind handles •...

  • Page 12: Adjustments & Maintenance

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 General Recommendations Shear Pin 1. Always observe safety rules when performing any Cotter Pin maintenance. Skid Shoe 2. The warranty on this snow thrower does not cover items that have been subjected to operator abuse or negligence.

  • Page 13: Drive Belt

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 3. Remove the self tapping screw which secures the belt cover to the frame. Remove the belt cover by pushing in on the sides of the cover to release the plastic tabs.

  • Page 14: Off-Season Storage

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Observe the following, when preparing your snow thrower for off-season storage: • Drain fuel into an approved container outdoors, away from any open flame. Allow engine to cool. Extin- Off-Season guish cigarettes, cigars, pipes and other sources of ignition prior to draining fuel.

  • Page 15: Trouble Shooting

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Problem Cause Remedy 1. Choke not in ON position. 1. Move choke to ON position. Engine fails to start 2. Spark plug wire disconnected. 2. Connect wire to spark plug. 3.

  • Page 16: Illustrated Parts Lists

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 �� �� Illustrated �� Parts/ �� Pièces � �� détachés �� �� � �� �� �� � �� �� �� � �� �� �� �� �� � �� ��...
  • Page 17 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 PART N° DE N° DE RÉF PIÈCE DE SCRIP TION DE SCRIP TION 710-0449 Carriage Bolt 5/16-18 x 2.25 Gr. 1 Boulon ordi naire 5/16-18 x 2,25 Qual 710-0605 Oval C-Sunk Screw 1/4-20 x 1.825"...
  • Page 18 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 � �� Illustrated � Parts/ � � � Pièces � �� détachés �� � �� �� �� �� �� �� �� �� �� �� �� �� �� �� ��...
  • Page 19 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 PART N° DE N° DE RÉF PIÈCE DE SCRIP TION DE SCRIP TION 684-04037 Chute As sem bly Goulotte 710-04071 Carriage Screw 5/16-18 x 1.0 Vis ordi naire 5/16-18 x 1,0 710-0451 Carriage Bolt 5/16-18 x .75 Boulon ordi naire 5/16-18 x 0,75...

  • Page 20: Warranty

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 TWO YEAR SUPREME WARRANTY: For two years from date of retail purchase within Canada, MTD PRODUCTS LIMITED will, at its option, repair or replace, for the original purchaser, free of charge, any part or parts found to be defective in material or workmanship.
  • Page 21 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 22 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 23 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 24 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 25 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 26 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 27 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 28 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 29 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 30 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 31 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 32 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 33 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 34 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 35 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
  • Page 36 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com www.mymowerparts.com...
