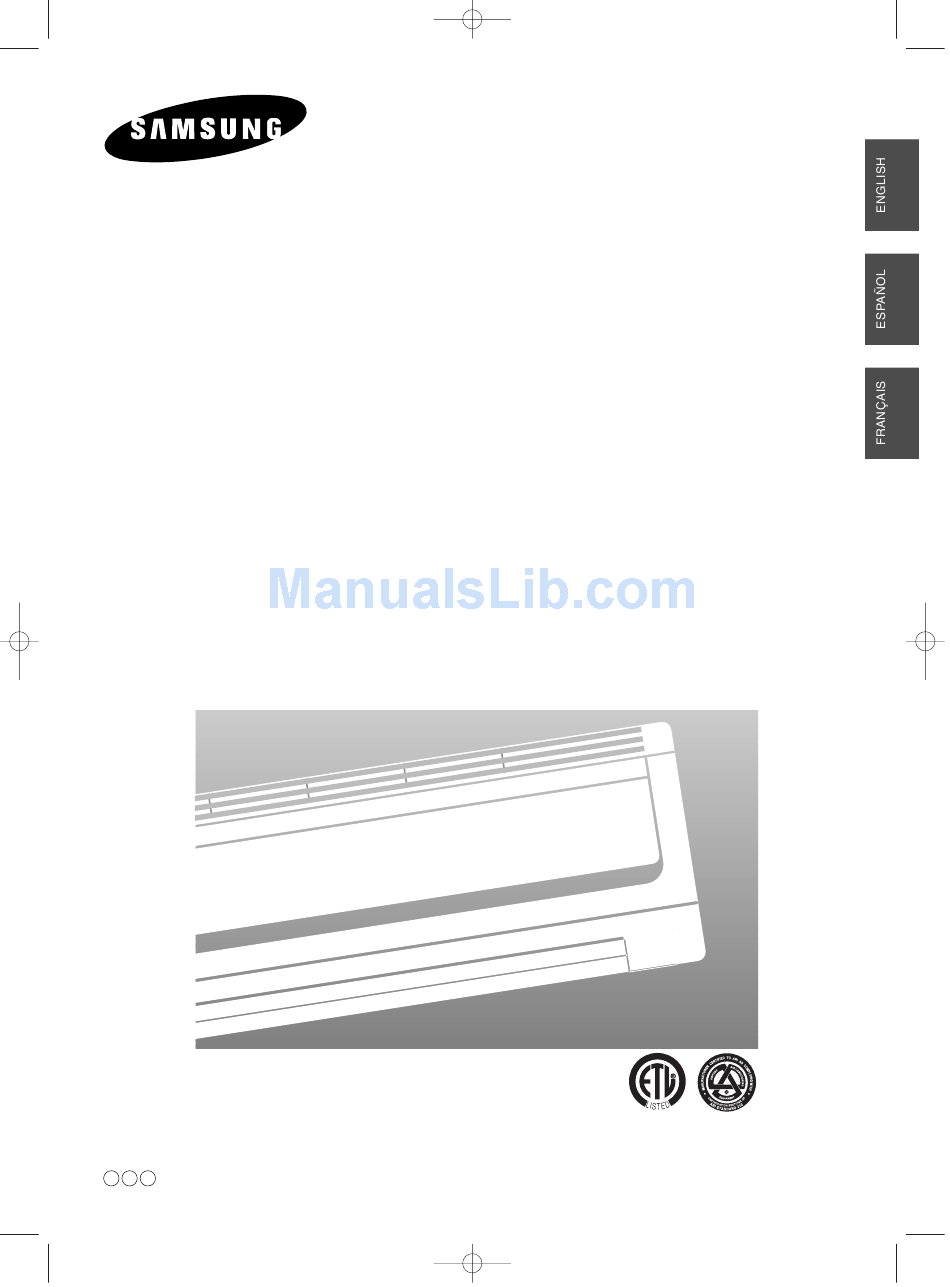

Page 1 AQB09JJWC IB_E_DB98-25865 2006.4.14 3:34 PM Page 27 USER’S MANUAL Indoor Unit Outdoor Unit AQB09JJWC UQB09JJWC AQB12JJWC UQB12JJWC AQB18J6WC UQB18J6WC AQB24J2WC UQB24J2WC Split-type Air Conditioner (Cooling and Heating) E S F DB98-25865A(2)
Page 2: N Preparation I Safety Precautions
N Young children or infirm persons should be always supervised when they use the air conditioner. N Max current is measured according to IEC standard for safety. N Current is measured according to ISO standard for energy efficiency. Samsung Electronics Co., Ltd. All Rights Reserved.
Page 3: Table Of Contents
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 3 Contents REPARATION Safety Precautions ........
Page 4: Name Of Each Part
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 4 Name of Each Part The design and shape can be changed according to the model. Indoor Unit Air Inlet Temperature sensor Air filter Air flow blades (under the grille) (outlet) Operation indicator (GREEN)
Page 5 AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 5 Outdoor Unit UQB12JJWC UQB09JJWC Air Inlet(Rear) Air Outlet Connection Valve Outdoor Unit UQB18J6WC Air Inlet(Rear) Air Outlet Connection Valve Outdoor Unit UQB24J2WC Air Inlet(Rear) Air Outlet Connection Valve...
Page 6: Remote Control - Buttons And Display
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 6 Remote Control - Buttons and Display Transmission indicator Temperature and Timer setting 1 Hour Timer indicator Battery life indicator On Timer indicator Off Timer indicator Operation modes indicator AUTO, COOL, DRY, FAN, HEAT)
Page 7: Inserting The Remote Control Batteries
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 7 Inserting the Remote Control Batteries You must insert or replace the remote control batteries when : N You purchase the air conditioner N The remote control does not work correctly N Use two AAA, LR03 1.5V batteries.
Page 8: I Getting Start
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 8 etting Start The User’s Manual provides you valuable information about your air conditioner. Please read this manual carefully before using the air conditioner. It will help you take full advantage of the unit's features.
Page 9: Selecting The Auto Mode
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 9 Selecting the Auto Mode You can select the Auto mode if you want to cool or heat your room automatically. You can adjust the temperature and the fan speed in this mode. If necessary, press the button.
Page 10: Selecting The Cool Mode
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 10 Selecting the Cool Mode You can select the Cool mode if you want to cool your room. You can adjust the temperature and the fan speed when cooling. If necessary, press the button.
Page 11: Selecting The Heat Mode
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 11 Selecting the Heat Mode You can select the Heat mode if you want to heat your room. You can adjust the temperature and the fan speed when heating. If necessary, press the button.
Page 12: Selecting The Dry Mode
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 12 Selecting the Dry Mode You can select the Dry mode if you want to dehumidify your room. You can adjust the temperature in this mode. If necessary, press the button. N The operation indicator on the indoor unit lights up.
Page 13: Selecting The Fan Mode
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 13 Selecting the Fan Mode You can select the Fan mode if you want to ventilate your room. It helps to refresh the air in your room. You can adjust the fan speed in this mode.
Page 14: Selecting The Turbo Function
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 14 Selecting the Turbo Function You can select the Turbo Function if you want to cool or heat your room in the fastest way. After the 30 - minute operation with the maximum setting, it returns to the previous setting.
Page 15: Selecting The Energy Saving Function
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 15 Selecting the Energy Saving Function You can select the Energy Saving Function to save energy when cooling or heating. If necessary, press the button. N The operation indicator on the indoor unit lights up.
Page 16: Adjusting The Airflow Direction Vertically
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 16 Adjusting the Airflow Direction Vertically You can adjust the airflow direction vertically. The outer airflow blade moves up and down to increase the efficiency of the cooling or heating operation. Press the button until the required direction is set.
Page 17: Adjusting The Airflow Direction Horizontally
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 17 Adjusting the Airflow Direction Horizontally You can adjust the airflow direction horizontally with your hands. The inner blades with small fins moves the air to the required direction. Adjust the inner blades by moving them to left or right.
Page 18: Setting The On Timer
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:23 PM Page 18 Setting the On Timer You can set the On Timer to turn on the air conditioner automatically at the appointed time. You can set the time from 1 hour to 24 hours. Press the button until the required time is displayed to set the On Timer.
Page 19: Setting The Off Timer
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:24 PM Page 19 Setting the Off Timer You can set the Off Timer to turn off the air conditioner automatically at the appointed time. You can set the time from 1 hour to 24 hours. Press the button until the required time is displayed to set the Off Timer.
Page 20: Setting The Sleep Timer
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:24 PM Page 20 Setting the Sleep Timer You can set the Sleep Timer to turn off the air conditioner automatically while you are sleeping. The air conditioner stops operating 6 hours after you set the Sleep Timer.
Page 21: Setting The 1 Hour Timer
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:24 PM Page 21 Setting the 1 Hour Timer You can set the 1 Hour Timer to turn off the air conditioner automatically after an hour. It is the quick and convenient way using only one button.
Page 22: Operating Recommendations
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:24 PM Page 22 Operating Recommendations When you use your air conditioner, it is recommended to read the following : Topic Recommendation Heating performances The heat pump function of the air conditioner absorbs heat from outside air and brings it indoors.
Page 23: Temperature And Humidity Ranges
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:24 PM Page 23 Temperature and Humidity Ranges If you check the following tables, you can use your air conditioner more efficiently. If the air conditioner is used at... Then... High temperatures The air conditioner may stop operating for the reason of protection.
Page 24: Troubleshooting Guide
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:24 PM Page 24 Troubleshooting Guide Before contacting the service center, check the following. It will save your time and the expense of an unnecessary call. Problem Explanation/Solution N Check if the circuit breaker of the air conditioner is switched on.
Page 25: Cleaning Your Air Conditioner
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:24 PM Page 25 Cleaning Your Air Conditioner For the best use of your air conditioner, you must clean it every 2 weeks to remove the dust that accumulates on the air filter. Before cleaning your air conditioner, check if you have turned off the circuit breaker.
Page 26 AQB09JJWC IB_E_DB98-25865 2006.3.27 8:24 PM Page 26 ELECTRONICS If you have any comments or questions regarding Samsung products, contact the SAMSUNG customer care center. Samsung Electronics America, Inc. 1-800-SAMSUNG (7267864) www.samsung.com Printed in Korea...
