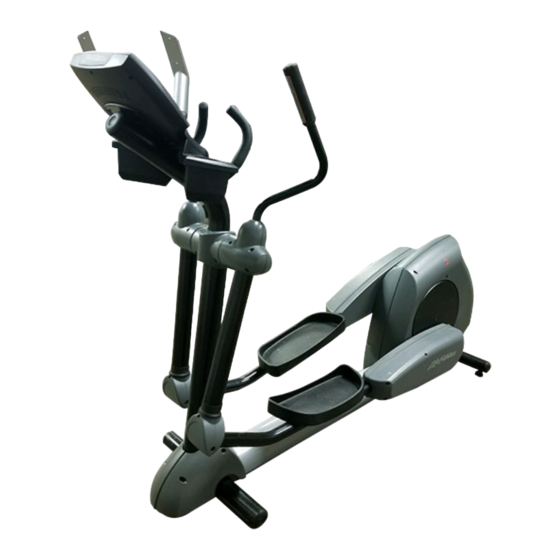

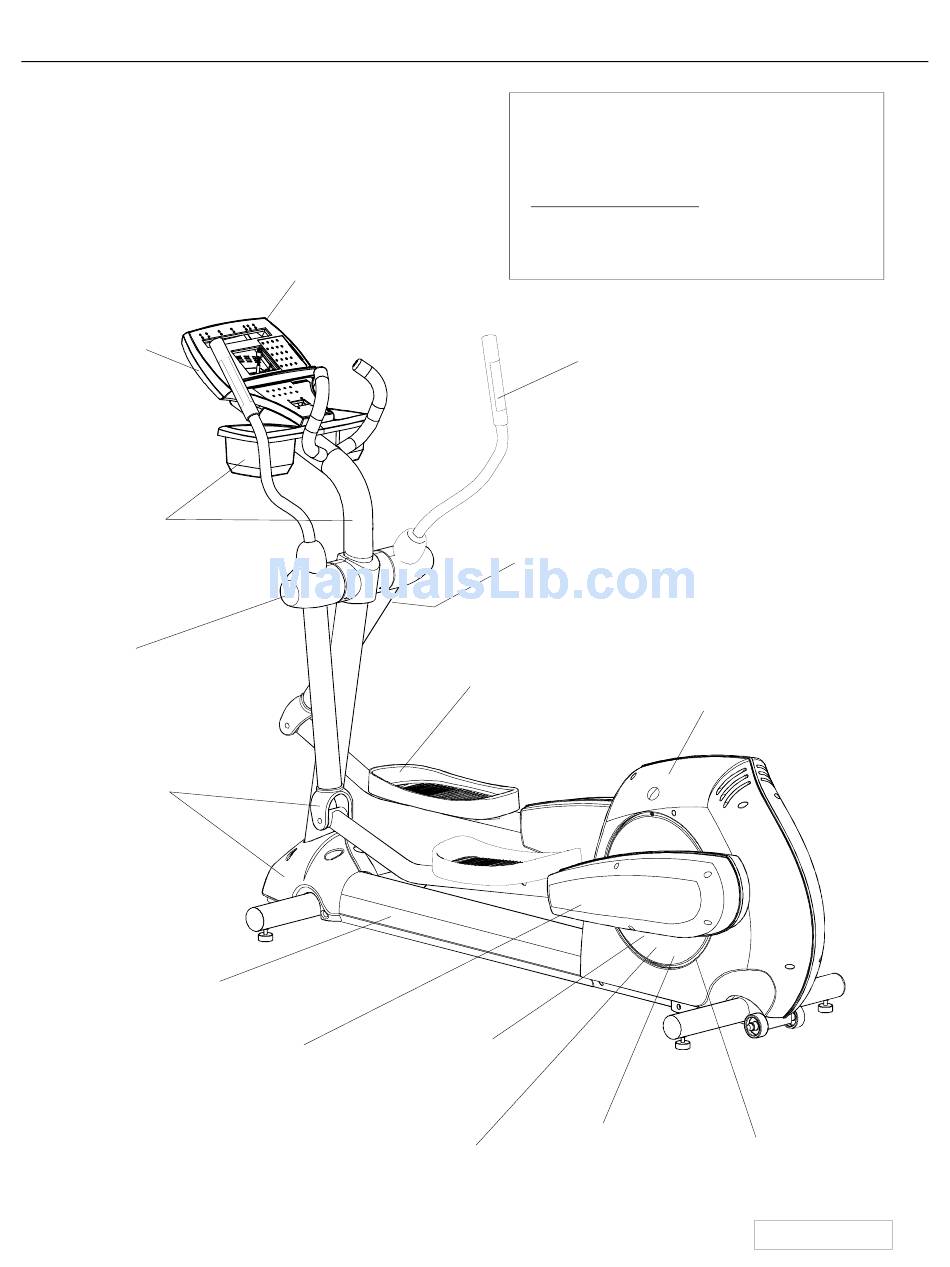

CT9500 Cross-Trainer
General Assembly
Console
Assembly
Console Support
and Tray
Rocker Arm
Covers
Clevis and Front
Frame Covers
Battery, Brackets,
and Frame Cover
Anti-Lift Bracket/
Outer Pedal Covers
CT95-0000-21
Cables
Crankshaft
Assembly
Crank Arm
w/Roller
Service Manual M051-00K61-A078
Operator Manual M051-00K61-A064
Installation Instructions M051-00K61-A045
Hardware Kit AK61-00050-0001
Optional: Chest Strap
AK40-00045-0002 Medium
AK40-00045-0003 Small
AK40-00045-0004 Large
Upper Arm/Heart
Rate Assembly
Rocker Arm
Assembly
Pedal Lever
Assembly
Drive Belts/
Alternator
Rear Drive Shrouds
w/Decals
Final Frame Drive
Linkage Assembly
revised 09 Jun 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT9500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Fitness CT9500

Summary of Contents for Life Fitness CT9500

  • Page 1 CT9500 Cross-Trainer CT95-0000-21 General Assembly Service Manual M051-00K61-A078 Operator Manual M051-00K61-A064 Installation Instructions M051-00K61-A045 Hardware Kit AK61-00050-0001 Optional: Chest Strap AK40-00045-0002 Medium AK40-00045-0003 Small AK40-00045-0004 Large Cables Console Assembly Upper Arm/Heart Rate Assembly Console Support and Tray Rocker Arm Assembly...

  • Page 2: Drive Belts And Alternator

    CT9500 Cross-Trainer CT95-0000-21 Drive Belts and Alternator Alternator to PCB Cable (Not Shown) AK61-00135-0000 Alternator w/o Flywheel Intermediate Bracket Alternator Pivot Bolt 0017-00009-0841 0K61-02400-0001 0017-00101-0964 Alternator w/Flywheel AK61-00250-0001 Alternator Strap Bolt (2) Alternator Brushes 0017-00101-0986 0017-00009-0895 Flange Lock Nut Alternator Flywheel...
  • Page 3 CT9500 Cross-Trainer CT95-0000-21 Console Support Assembly *Optional Mounting Screws (8) (not shown, for accessory tray and console) 0017-00101-1253 Accessory Tray Kit GK63-00002-0004 Main Cable Foam Grip (2) AK61-00136-0000 0K61-05008-0000 Console Support Cap Console Support 0K61-01283-0000 Assembly AK61-00500-0012 Bolt (2) 0017-00101-1645...

  • Page 4: Console Assembly

    CT9500 Cross-Trainer CT95-0000-21 Console Assembly Bezel/Switch Assembly AK63-00064-0000 Upper Overlay Console Board - Upper A084-92219-A006 Console Case Assembly Lower Overlay AK63-00121-0000 Phillips Pan Screws (13) 0017-00101-1650 Battery Door 0K63-01029-0000 Part Nos. Language Console Bezel, Switch, Assembly Overlay Eng/Met AK61-00111-0001 AK61-00113-0001...
  • Page 5 CT9500 Cross-Trainer CT95-0000-21 Crank Arm w/Roller Assembly Crank Cover 0K61-03100-0000 Locking Nut 0017-00103-0025 Bolt 0017-00101-1606 Crank Arm w/Collar Kit GK61-00002-0030 Set Screw 1/4-20x5 Square Key 0017-00101-0333 0K53-01122-0000 Crank Arm Collar 0K61-01260-0000 Set Screw (2) 0017-00101-0314 Bolt 0017-00101-1645 Extension Arm 0K61-03004-0000...
  • Page 6 CT9500 Cross-Trainer CT95-0000-21 Crankshaft Assembly AK61-00157-0002 Snap Ring 0017-00100-0152 Pillow Block Bearing 0K53-01181-0000 Crankshaft w/Plate 0K61-01360-0002 Magnet/Standoff Lock Nut (4) AK62-00186-0000 0017-00103-0019 Crank Pulley 0K61-02409-0000 Crankshaft Plate 0K61-02302-0001 Bolt (4) Flat Washer 0017-00101-1551 0017-00104-0144 Pillow Block Bearing Bolt (3) 0K53-01181-0000...
  • Page 7 CT9500 Cross-Trainer CT95-0000-21 Final Frame Drive Linkage Assembly Wave Spring Washer 0017-00009-1084 0017-00104-0044 Spherical Washer 0017-00009-1085 Extension Arm Spherical End Sleeve 0K61-03004-0000 0K61-01066-0000 Allen Head Bolt Washer 0017-00101-1645 0017-00104-0164 Tie Rod Kit GK61-00002-0020 Lock Nut 0017-00103-0286 Crank End Sleeve 0K61-01261-0000...
  • Page 8 CT9500 Cross-Trainer CT95-0000-21 Anti-Lift Bracket and Outer Pedal Covers Right Outer Pedal Cover AK61-00018-0003 Decal 0K61-01222-0003 Allen Head Bolt 0017-00101-1645 Phillips Pan Screw 0017-00101-1242 Anti-Lift Bracket Left Outer Pedal Cover 0K61-04114-0000 AK61-00018-0001 Decal 0K61-01222-0003...
  • Page 9 CT9500 Cross-Trainer CT95-0000-21 Battery, Brackets, and Frame Cover Locking Nut (4) 0017-00103-0025 Flat Washer (4) 0017-00104-0192 Spacer (2) 0K61-01055-0001 Battery 6v 0017-00003-0685 Torx Screws (6) 0017-00101-1282 Cover GK61-00002-0019 Hex Bolt (4) Power CB Bracket Assembly 0017-00101-1608 (see following page) Power Control Assembly...
  • Page 10 CT9500 Cross-Trainer CT95-0000-21 Power CB Bracket Assembly Power CB Bracket Assembly AK61-00145-0000 Bracket: PCB Reed Sensor, SPDT 0K61-01330-0003 118E-00001-0140 4-40X 6 PHL PAN MS ST ZN (2) 0017-00101-1035 Nut 4-40 HEX W/SEMS D ST ZN (2) 0017-00103-0093 Grommet: Plastic; #6 (4)

  • Page 11: Clevis And Front Frame Covers

    CT9500 Cross-Trainer CT95-0000-21 Clevis and Front Frame Covers Grommets 0017-00042-0754 Adhesive Tape (4) 0K61-04115-0002 Clevis Cover Screw (2) 0017-00101-1242 Stabilizer Cap (4) 0K61-01284-0000 Leg Leveler (4) AK61-00035-0000 Wheel Shaft 0K61-01300-0000 Clevis Cover (2) Wheel (2) AK61-00062-0001 0017-00042-0674 Wheel Cap (2)

  • Page 12: Pedal Lever Assembly

    CT9500 Cross-Trainer CT95-0000-21 Pedal Lever Assembly Left Pedal Assembly: GK61-00002-0005 Right Pedal Assembly: GK61-00002-0006 Locking Nut (2) 0017-00103-0137 Tape, (4 pieces) Pedal Lever Screw (5) Pedal Kit 0K61-04115-0002 Clevis Shaft (2) 0017-00101-1242 GK61-00002-0037 0K61-01076-0000 Bolt (2) 0017-00101-1646 Inside Cover, Left...
  • Page 13 CT9500 Cross-Trainer CT95-0000-21 Rocker Arm Covers Front Rocker Arm Cover 0K61-06340-0002 Polar Receiver SK40-00045-0001 Insulator Receiver Tube 0K36-01059-0002 Rear Cover 0K61-06351-0002 Rear Rocker Rear Rocker Arm Cover Arm Cover 0K61-06341-0002 0K61-06341-0002 Front Cover 0K61-06350-0002 Front Rocker Arm Cover Phillips Pan Screw (18)

  • Page 14: Rocker Arm Assembly

    CT9500 Cross-Trainer CT95-0000-21 Rocker Arm Assembly Flat Washer 0017-00104-0454 Shaft Split Collar Hex Bolt 0K61-01259-0000 0017-00101-1635 Rocker Arm AK61-00094-0002...
  • Page 15 CT9500 Cross-Trainer CT95-0000-21 Rear Drive Shrouds w/Decals Right Rear Cover w/Decal GK61-00002-0016 Left Rear Cover w/Decal GK61-00002-0015 Plug (2) 0k14-01384-0000 Hex Screw (4) (1/4-20x8) 0017-00101-1160 Phillips Pan Screw-22 0017-00101-1242...
  • Page 16 CT9500 Cross-Trainer CT95-0000-21 Upper Arm / Heart Rate Assembly Upper Arm, Right Upper Arm, Left Assembly Assembly AK61-00099-0001 AK61-00099-0002 Electrode Kit GK20-00002-0004 Bolt 0017-00101-1645 Flat Washer 0017-00104-0450 Lifepulse Cable AK61-00051-0000...
  • Page 17 CT9500 Cross-Trainer CT95-0000-21 Cables PCB Cable Assembly AK61-00135-0000 Reed Switch 118E-00001-0140 Upper to Lower Main Cable Console Cable AK61-00136-0000 AK63-00038-0000 HR Sensor Cable AK61-00052-0002 Polar Cable AK36-00021-0003...
