Touch Dynamic DT-07 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DT-07
User Guide for Integrators

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT-07 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Touch Dynamic DT-07

Summary of Contents for Touch Dynamic DT-07

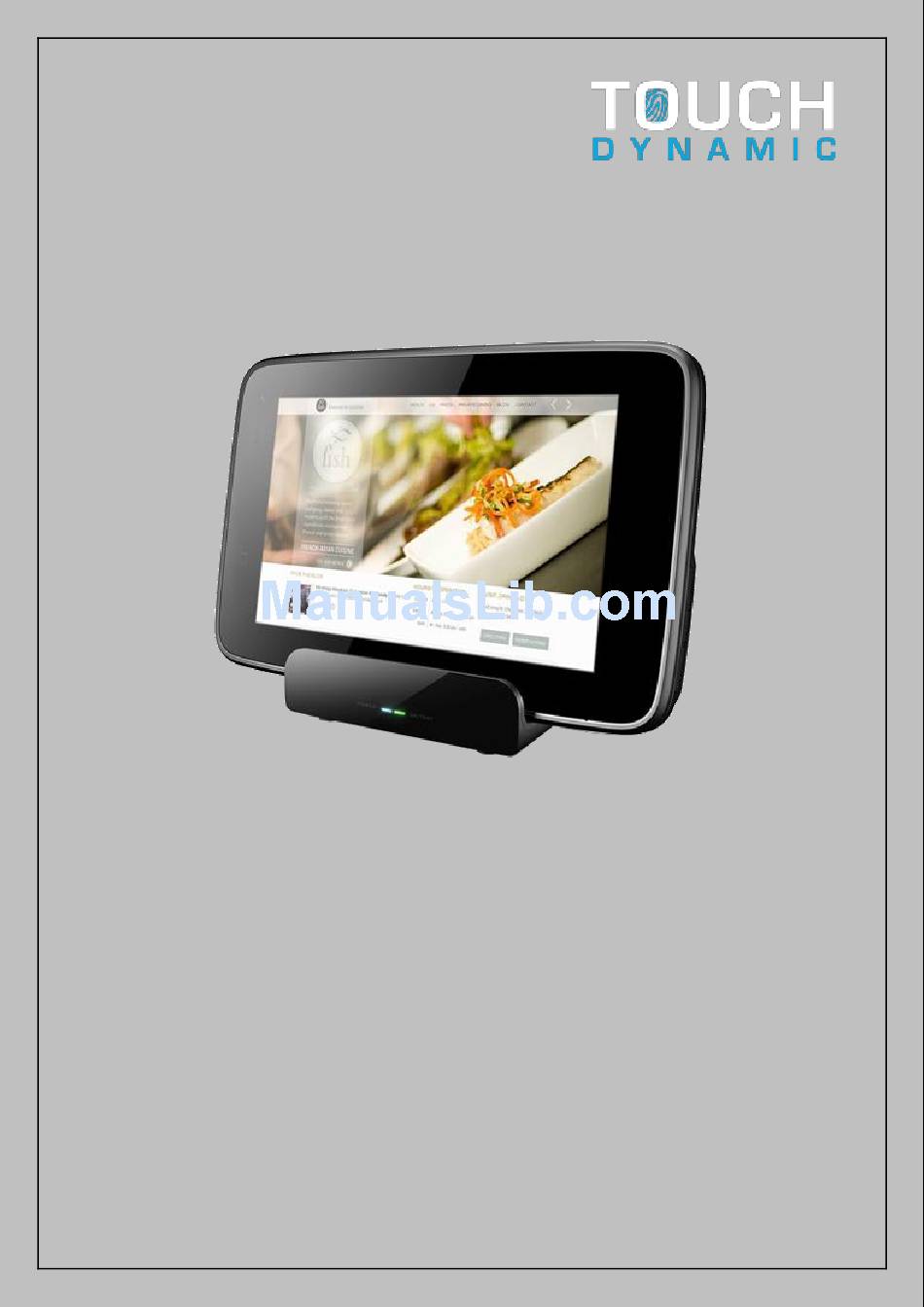

  • Page 1 DT-07 User Guide for Integrators...

  • Page 2: Revision History

    Revision History Version Date Description 21 May 2014 Draft release Version 1.0...

  • Page 3: Copyright

    Disclaimer The contents of this document are provided as is. Touch Dynamic Inc. makes no representations or warranties with respect to the contents herein and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Touch Dynamic Inc. reserves the right to revise this document at any time without prior notice.

  • Page 4: Regulatory Information

    Regulatory Information FCC Statement This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 5: Safety Information

    Safety Information Please read the following information carefully before using the device for the first time, and keep this User Guide in a safe place for future reference.  Always treat the device with care and keep it in a clean and dust-free environment. ...

  • Page 6: Table Of Contents

    Contents Revision History ..............................2 Copyright ................................3 Disclaimer ................................3 Regulatory Information ............................4 Safety Information .............................. 5 Product Specifications ..........................9 Device Overview ............................12 Getting Started ............................14 Installing and Removing the Battery ....................14 3.1.1 Installing the Battery ........................ 14 3.1.2 Removing the Battery ......................
  • Page 7 Modifying Bluetooth Settings in User Mode ..................22 Unpairing a Bluetooth Device ......................22 Using NFC ............................... 23 Turning on NFC ..........................23 NFC Sample Application ........................23 7.2.1 Scanning NFC tags ........................23 7.2.2 Writing NFC tags .......................... 23 7.2.3 Changing NFC Default Application ....................
  • Page 8 14.6.2 Refreshing the Control Screen ....................35 14.6.3 Upgrading OS Software ......................35 14.6.4 Updating Remote Assistant ..................... 37 14.6.5 Changing the Controller ......................39 14.6.6 File Transfer ..........................40 MSR Expansion Module ........................41 15.1 Using the MSR ............................. 41 15.2 Configuring MSR Settings .......................

  • Page 9: Product Specifications

    1. Product Specifications Handheld Terminal Item Specification Processor Cortex A5 1.2GHz Quad Core processor Flash 4GB NAND Flash 1GB DDR2 RAM 7” TFT 1024 x 600 256K Colour LCD Touch panel Capacitive multi-touch touch panel Hardness 7H Memory expansion MicroSD card slot Support up to 32GB WLAN 802.11b/g/n...
  • Page 10 Storage temp. -20 to +65 deg C Operating humidity 10% to 95% Storage humidity 5% to 95% Cradle Item Specification Charging slot 1 x Tablet slot, 1 x spare battery slot AC/DC adaptor AC IN: 100-240V DC OUT: 5.9V 3A Indicator 1 x Green LED (Cradle power status) 1 x Red/Green LED (spare battery charging status)
  • Page 11 Backup option to restore backup image to the same device, or any devices of the same model Backup all installed programs, settings passwords, SSID, IP settings Preserve static IP address, subnet mask, gateway and DNS settings Remote Assistant Remote access of device from PC over the Internet Tablet connects to the Remote assistant server by WiFi Version 1.0...

  • Page 12: Device Overview

    2. Device Overview No. Item Description Press and hold to turn device on or off Power key If the device is on, press to suspend Volume down key Press to decrease volume Volume up key Press to increase volume Earphone jack Open the cover to access the earphone jack Front camera 2MP camera...
  • Page 13 Battery cover Remove the battery cover to access the battery Rear camera 5MP camera with LED flash Handstrap mounting point To attach the handstrap Speaker Mono speaker No. Item Description Spare battery LED Spare battery charging status indicator Power LED Cradle power connection indicator Contact plates Contact plates for charging and USB connectivity...

  • Page 14: Getting Started

    3. Getting Started 3.1 Installing and Removing the Battery 3.1.1 Installing the Battery 1. Slide the battery cover lock to the right until the battery cover ejects slightly. 2. Remove the battery cover. 3. Align the battery metal contacts with the contact pins inside the battery compartment. 4.

  • Page 15: Led Status Description

    3.3 LED Status Description Device LED LED color Description Charging Green Fully charged / Battery level above the user defined threshold Flashing red Battery low Cradle Power LED LED color Description Green Cradle is powered on Cradle is powered off Cradle Battery LED LED color Description...

  • Page 16: Admin Mode And User Mode

    4. Admin Mode and User Mode The DT-07 can be operated in the Admin Mode or User Mode. In the Admin Mode, system integrators will have full administrative right to configure system settings and install / un-install applications. This operating mode is typically used in the initial setup stage and ongoing maintenance.

  • Page 17: Configuring Auto-Launch Application

    4.2 Configuring Auto-launch Application To launch an application automatically at device startup in the User Mode: 1. Select Application drawer > Launcher Config. 2. Select User Launch App. 3. Select an application for auto-launch at the startup. 4.3 Changing the Operating Mode 4.3.1 Switching to the User Mode By default, the device is configured to run in the Admin Mode.

  • Page 18: Using Wi-Fi

    5. Using Wi-Fi 5.1 Turning Wi-Fi On or Off To turn Wi-Fi on or off: 1. Select Application drawer > Settings >Wi-Fi. 2. Slide the Wi-Fi On/Off switch to the ON or OFF position. Note: The Wi-Fi feature is turned on by default. 5.2 Setting Wi-Fi Boot Up State To change the boot up setting: 1.

  • Page 19: Configuring Roaming Trigger Level

    2. Touch and hold the connected network on the right pane until a pop up menu appears. 3. Select Forget network. 5.5 Configuring Roaming Trigger Level For multiple AP site, it is important to perform wireless site survey to determine the best placement of access points that provides the best signal coverage with minimum interference.

  • Page 20: Viewing Network Information

    The Auto Retry WLAN defines the time interval the system attempts to search and connect to the designated network after the Wi-Fi auto off. By default, Auto Retry WLAN is set to 2 minutes. To change the retry time interval: 1.

  • Page 21: Using Bluetooth

    6. Using Bluetooth 6.1 Bluetooth Profiles The DT-07 supports the following Bluetooth profiles:  GAP: Generic Access Profile  SPP: Serial Port Profile  GOEP: Generic Object Exchange Profile  OPP: Object Push Profile  A2DP: Advanced Audio Distribution Profile ...

  • Page 22: Making The Device Discoverable

    To make DT-07 visible to all nearby Bluetooth devices: 1. Select Application drawer > Settings > Bluetooth, and turn on Bluetooth. 2. Click DT-07 on the right pane to make the device discoverable. 3. Click Menu > Visibility timeout, and select the discoverable timeout period.

  • Page 23: Using Nfc

    Note: Position the tag within 2cm of the NFC scanning area to ensure successful scans. 7.2 NFC Sample Application The NFC implementation on DT-07 is based on standard Android NFC framework. The built-in sample application demonstrates the reading and writing of NFC tags with the use of standard Android APIs.

  • Page 24: Configuring General Settings

    8. Configuring General Settings 8.1 Changing Sound Settings 1. Select Application drawer > Settings > Sound. 2. Change the required sound settings including volume, notification tone, touch sounds, screen lock sound, vibrating option, etc. 8.2 Changing Display Settings 8.2.1 Adjusting Brightness 1.

  • Page 25: Hiding System Bar

    8.2.6 Hiding System Bar To hide the system bar for full screen operation: 1. Select Application drawer > Settings > Display. 2. Select the Hide system bar checkbox. Note: In full screen operation, the volume keys are re-mapped as follows if default key mapping is used: Function Volume up...

  • Page 26: Changing Security Settings

    2. Select Manage apps. 3. Select an app to manage or remove. To change the installation location for new applications: 1. Select Application drawer > Settings > Apps. 2. Select Preferred install location. 3. Select an install location. 8.7 Changing Security Settings 8.7.1 Changing Screen Lock Settings The screen lock is enabled by default.

  • Page 27: Adjusting Date & Time

    1. Select Application drawer > Settings > Language & input. 2. Select Default. 3. Select a keyboard as default. Adjusting Date & Time To set the date and time manually: Select Application drawer > Settings > Date & time. Adjust Set date, Select time zone, Set time, Use 24-hour format, Choose date format accordingly.

  • Page 28: Enabling Developer Options

    3. Select the required developer option checkbox. 11. Performing System Backup & Restore The DT-07 features a powerful backup and restore tool that minimizes the efforts on mass deployment and ongoing customer support. It allows system integrators to clone the master image onto a MicroSD card and replicate it on other devices.

  • Page 29: Performing System Restore

    2. Select My Computer > DT-07 > Device storage. 3. Transfer files between the device and the PC as required. 13. Performing Firmware Upgrade DT-07 firmware can be updated with a MicroSD card in both Admin and User mode. To update the firmware: Unzip the software update package.

  • Page 30: Using Remote Assistant

    The Remote Assistant is a remote management tool that enables support technicians to access and manage the DT-07 tablets over the Internet. Technicians will be able to perform the followings without site visits; saving significant time and resource for ongoing customer support.

  • Page 31: Establishing A Remote Session From The Tablet

    14.2 Establishing a remote session from the tablet 14.2.1 Connecting to the Remote Assistant Server To establish a Remote Assistant session from the tablet: 1. Connect the tablet to a WiFi access point with Internet access. 2. Select Application drawer > Remote Assistant. 3.

  • Page 32: Advanced Remote Assistant Settings

    14.2.2 Advanced Remote Assistant Settings If the remote site uses a proxy server to connect to the Internet, configure the proxy settings on the tablet as follows: 1. Select Application drawer > Remote Assistant. 2. Click Menu to bring up the option menu, and select Settings. 3.

  • Page 33: Disconnecting A Remote Session

    3. Click Connect to connect to the remote device. Note: Click Options to input proxy server information if needed. 4. Upon successful connection, the remote device can be viewed and controlled from the computer. 14.4 Disconnecting a Remote Session When exiting a remote session, technicians can disconnect both the computer and tablet connections from the server, or disconnect the computer connection only.

  • Page 34: Using Shortcut Keys

     Click to disconnect the computer while keeping the tablet connected to the server. 14.5 Using Shortcut Keys The following table describes the shortcut keys for controlling the tablet remotely. Keyboard Shortcuts Tablet Operation Esc key Back Home key Go to Home screen Pg Up key Page up Pg Dn key...

  • Page 35: Introducing The Remote Assistant Features

    14.6 Introducing the Remote Assistant Features 14.6.1 Viewing Device Information The control screen displays the basic device information of the tablet. Item Descriptions Tablet serial number Model No. Tablet model number Device Name Tablet name ROM Version OS version on the tablet SD Card Status Indicate whether MicroSD card is inserted into the tablet Memory Status RAM usage...
  • Page 36 3. The tablet downloads the selected software to the internal SD card. Click OK on the device screen to start the upgrade when prompted. 4. The device and control screen will be turned off temporarily during the upgrade. The Remote Assistant Viewer will re-connect to the server automatically.

  • Page 37: Updating Remote Assistant

    5. The display will resume upon completing the upgrade. 14.6.4 Updating Remote Assistant Updating Remote Assistant upgrades the Remote Assistant application independently on the tablet. This is only required when the Remote Assistant version on the device is incompatible with newer OS release.
  • Page 38 2. On the left device screen, select Launcher Config. 3. Check the UpgradeRemote checkbox. Version 1.0 (Draft)

  • Page 39: Changing The Controller

    4. Click Back to return to the main menu. Select UpgradeRemote, and then click OK. 14.6.5 Changing the Controller In a remote session, only the controller will have the right to control the tablet. Other participants connected to the session can view the shared screen only. To pass the controller right to another viewer: 1.

  • Page 40: File Transfer

    14.6.6 File Transfer To transfer a file to the tablet: 1. Click 2. Select the file and the destination folder with the file-browsing windows. Click to start the transfer. Version 1.0 (Draft)

  • Page 41: Msr Expansion Module

    15. MSR Expansion Module 15.1 Using the MSR 1. Insert the magstripe card from the side of the card slot with the magnetic stripe facing down. 2. Swipe the card through the card slot. A beep sound indicates a successful reading. Note: The magstripe card can be swiped in either direction by default.
  • Page 42 Add characters to the beginning and the end of a data package. Up to fifteen ASCII characters can be defined. Track Prefix/Suffix Add characters to the beginning and the end of a track data. Up to six ASCII characters can be defined.
  • Page 43 Defines the Start Sentinel and End Sentinel for the track data. Version 1.0 (Draft)
  • Page 44 Decode Mode Enable Sound: Select to play sound after swiping card. Track Error Message: Select to display track error message for reading error. Track Mode: Select the tracks that will be read. Decoded Directions: Select the card reading direction. Data Encryption Version 1.0 (Draft)
  • Page 45 Card data can be encrypted to protect from unauthorized access. Data encryption can be done by MSR reader module hardware (hardware encryption), or at operating system level (software encryption). Hardware encryption Select MSR Encryption Enable checkbox to enable hardware MSR data encryption setting. Before encryption can be enabled, Key Serial Number (KSN) and Base Derivation Key (BDK) must be loaded.
  • Page 46 Note: Once the security level is changed to level 3 or 4, it cannot go back to a lower level. Software encryption Select Soft Encryption Enable checkbox to enable software data encryption, and enter the data encryption key in Software Encryption Code. Note: Advance Encryption Standard (AES) is adopted as the encryption method for each track.
  • Page 47 Send MSR data by key events: Select to enable MSR data to be sent as key events. Reader status: It shows the current authentication state of the reader PrePAN: number of leading Personal Account Number(PAN) digits to display PostPAN number of trailing Personal Account Number(PAN) digits to display: MaskChar: character used to mask the PAN Session: Show current session ID Display Expiration Data: Display expiration data as mask data(0) or clear data(1)
  • Page 48 Serial Mode Select to control the MSR module through API programming or access MSR module directly by its command set. MSR Test MSR Test is a demo application for reading magstripe cards. Swipe a card through the card slot to read the card data. Select Clear to empty the data output field. Software encrypted data output Version 1.0 (Draft)

  • Page 49: Bundled 3 Rd Party Applications

    16. Bundled 3 Party Applications DT-07 is bundled with the following 3 party applications. Visit the developer home page for product information and user manual. Category Application Version Developer URL Remote Desktop 2X Client for Android 11.0.1823 http://www.2x.com Version 1.0 (Draft)

  • Page 50: Application Development

    For MSR application development, refer to section 17.4 for more details. 17.2 Installing USB Driver It is necessary to install the DT-07 USB driver for testing applications on an actual device connected to a Windows computer. To install the DT-07 USB driver on Windows 7 computer: 1.

  • Page 51: Msr Api Library

    MSR API library DT-07 MSR SDK\MSR Settings\libs\MsrManager.jar MSR Sample Program DT-07 MSR SDK\MSR Settings - End of Document - Version 1.0 (Draft)
