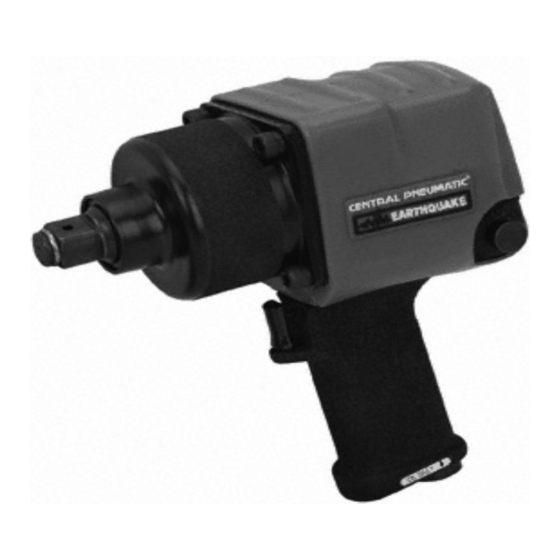

3/4" AIR IMPACT WRENCH
SET UP AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
©
Copyright
2009 by Harbor Freight Tools
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 11h
92353
®
. All rights reserved. No portion of this manual or any artwork
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Central Pneumatic 92353
Summary of Contents for Central Pneumatic 92353
-
Page 1: Set Up And Operating Instructions
3/4” AIR IMPACT WRENCH 92353 SET UP AND OPERATING INSTRUCTIONS Visit our website at: http://www.harborfreight.com Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL. © ® Copyright 2009 by Harbor Freight Tools . -
Page 2: Important Safety Instructions
Keep bystanders, children, and not avoided, could result in visitors away while operating the minor or moderate injury. SKU 92353 For technical questions, please call 1-800-444-3353. Page 2... -
Page 3: Personal Safety
A tool is Use safety equipment. A dangerous in hands of untrained dust mask, non-skid safety users. shoes and a hard hat must be used for the applicable SKU 92353 For technical questions, please call 1-800-444-3353. Page 3... -
Page 4: Air Source
Hearing Loss. Wear hearing range as marked on the tool. Always protection. verify prior to using the tool that the Chart continued in next column. air source has been adjusted to the SKU 92353 For technical questions, please call 1-800-444-3353. Page 4... -
Page 5: Specific Safety Instructions
Install an in-line shutoff valve to allow Use tools with the lowest vibration immediate control over the air supply when there is a choice. SKU 92353 For technical questions, please call 1-800-444-3353. Page 5... -
Page 6: Functional Description
Freight Tools at 1-800-444-3353 as soon as possible. • This air tool may be shipped with a protective plug covering the air inlet. Remove this plug before set up. REV 10b SKU 92353 For technical questions, please call 1-800-444-3353. Page 6... -
Page 7: Air Supply
Tool Oil to the airline connection but the output will not exceed the before operation. Add a few more tool’s maximum air pressure at any time. Adjust the pressure gradually, SKU 92353 For technical questions, please call 1-800-444-3353. Page 7... -
Page 8: Operating Instructions
TO PREVENT General Operating Instructions SERIOUS INJURY WARNING! Use only 3/4” Drive FROM ACCIDENTAL Impact type sockets (sold separately). OPERATION: Turn off the tool, detach the air supply, safely discharge SKU 92353 For technical questions, please call 1-800-444-3353. Page 8... - Page 9 If the tool still does not have sufficient force at maximum pressure and sufficient airflow, then a larger tool may be required. Once nut is tightened, release Trigger. Turn off the air compressor and disconnect the hose. SKU 92353 For technical questions, please call 1-800-444-3353. Page 9...
-
Page 10: User Maintenance Instructions
Wrench in clean, dry and safe mechanism using only location out of reach of children) white lithium grease. Other lubricants may damage the mechanism and may be highly flammable, causing an explosion. SKU 92353 For technical questions, please call 1-800-444-3353. Page 10... -
Page 11: Troubleshooting
3. Replace damaged components. 4. Dirty, worn or damaged valve. 4. Clean or replace valve assembly. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect air supply before service. SKU 92353 For technical questions, please call 1-800-444-3353. Page 11... -
Page 12: Parts List
Rear Motor Bearing Socket Retainer Rear End Plate Socket Retainer O-Ring Rear End Plate Gasket Regulator Knob Position Ball Rotor Regulator Knob Position Spring Rotor Blade O-Ring Cylinder Outer Cover SKU 92353 For technical questions, please call 1-800-444-3353. Page 12... -
Page 13: Assembly Diagram
Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. SKU 92353 For technical questions, please call 1-800-444-3353. Page 13... - Page 14 This warranty gives you specific legal rights and you may also have other rights which vary from state to state. SKU 92353 For technical questions, please call 1-800-444-3353. Page 14...
