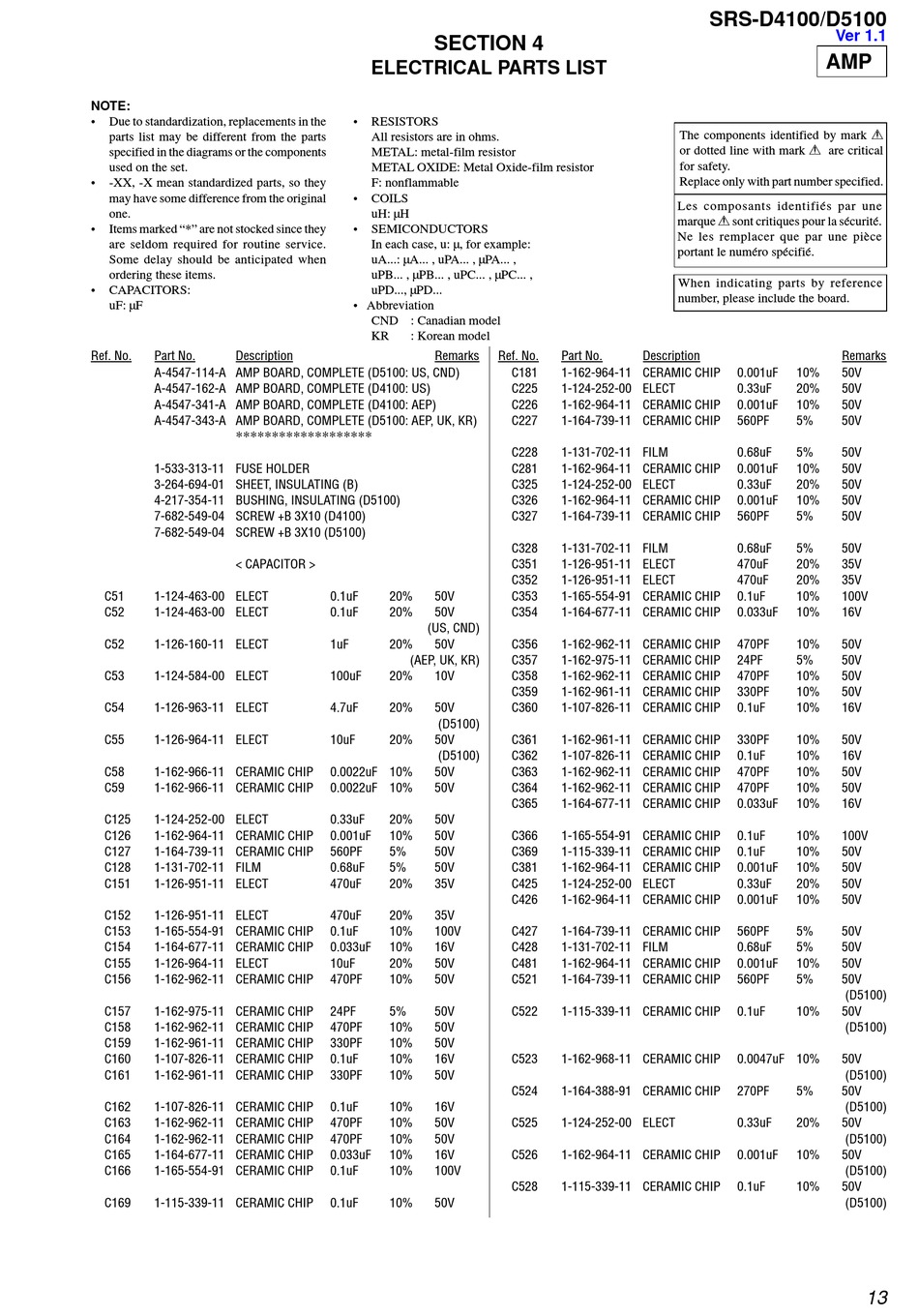

Electrical Parts List - Sony Srs-D4100 Service Manual

NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked "*" are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• CAPACITORS:
uF: µF
Ref. No. Part No. Description
A-4547-114-A AMP BOARD, COMPLETE (D5100: US, CND)
A-4547-162-A AMP BOARD, COMPLETE (D4100: US)
A-4547-341-A AMP BOARD, COMPLETE (D4100: AEP)
A-4547-343-A AMP BOARD, COMPLETE (D5100: AEP, UK, KR)
*******************
1-533-313-11 FUSE HOLDER
3-264-694-01 SHEET, INSULATING (B)
4-217-354-11 BUSHING, INSULATING (D5100)
7-682-549-04 SCREW +B 3X10 (D4100)
7-682-549-04 SCREW +B 3X10 (D5100)
< CAPACITOR >
C51 1-124-463-00 ELECT
C52 1-124-463-00 ELECT
C52 1-126-160-11 ELECT
C53 1-124-584-00 ELECT
C54 1-126-963-11 ELECT
C55 1-126-964-11 ELECT
C58 1-162-966-11 CERAMIC CHIP
C59 1-162-966-11 CERAMIC CHIP
C125 1-124-252-00 ELECT
C126 1-162-964-11 CERAMIC CHIP
C127 1-164-739-11 CERAMIC CHIP
C128 1-131-702-11 FILM
C151 1-126-951-11 ELECT
C152 1-126-951-11 ELECT
C153 1-165-554-91 CERAMIC CHIP
C154 1-164-677-11 CERAMIC CHIP
C155 1-126-964-11 ELECT
C156 1-162-962-11 CERAMIC CHIP
C157 1-162-975-11 CERAMIC CHIP
C158 1-162-962-11 CERAMIC CHIP
C159 1-162-961-11 CERAMIC CHIP
C160 1-107-826-11 CERAMIC CHIP
C161 1-162-961-11 CERAMIC CHIP
C162 1-107-826-11 CERAMIC CHIP
C163 1-162-962-11 CERAMIC CHIP
C164 1-162-962-11 CERAMIC CHIP
C165 1-164-677-11 CERAMIC CHIP
C166 1-165-554-91 CERAMIC CHIP
C169 1-115-339-11 CERAMIC CHIP
SECTION 4

ELECTRICAL PARTS LIST

• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• COILS
uH: µH
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
• Abbreviation
CND : Canadian model
KR : Korean model
Remarks Ref. No.
0.1uF 20% 50V
0.1uF 20% 50V
(US, CND)
1uF 20% 50V
(AEP, UK, KR)
100uF 20% 10V
4.7uF 20% 50V
(D5100)
10uF 20% 50V
(D5100)
0.0022uF 10% 50V
0.0022uF 10% 50V
0.33uF 20% 50V
0.001uF 10% 50V
560PF 5% 50V
0.68uF 5% 50V
470uF 20% 35V
470uF 20% 35V
0.1uF 10% 100V
0.033uF 10% 16V
10uF 20% 50V
470PF 10% 50V
24PF 5% 50V
470PF 10% 50V
330PF 10% 50V
0.1uF 10% 16V
330PF 10% 50V
0.1uF 10% 16V
470PF 10% 50V
470PF 10% 50V
0.033uF 10% 16V
0.1uF 10% 100V
0.1uF 10% 50V
The components identified by mark 0
or dotted line with mark 0 are critical
for safety.
Replace only with part number specified.
Les composants identifiés par une
marque 0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
Part No. Description
C181 1-162-964-11 CERAMIC CHIP
C225 1-124-252-00 ELECT
C226 1-162-964-11 CERAMIC CHIP
C227 1-164-739-11 CERAMIC CHIP
C228 1-131-702-11 FILM
C281 1-162-964-11 CERAMIC CHIP
C325 1-124-252-00 ELECT
C326 1-162-964-11 CERAMIC CHIP
C327 1-164-739-11 CERAMIC CHIP
C328 1-131-702-11 FILM
C351 1-126-951-11 ELECT
C352 1-126-951-11 ELECT
C353 1-165-554-91 CERAMIC CHIP
C354 1-164-677-11 CERAMIC CHIP
C356 1-162-962-11 CERAMIC CHIP
C357 1-162-975-11 CERAMIC CHIP
C358 1-162-962-11 CERAMIC CHIP
C359 1-162-961-11 CERAMIC CHIP
C360 1-107-826-11 CERAMIC CHIP
C361 1-162-961-11 CERAMIC CHIP
C362 1-107-826-11 CERAMIC CHIP
C363 1-162-962-11 CERAMIC CHIP
C364 1-162-962-11 CERAMIC CHIP
C365 1-164-677-11 CERAMIC CHIP
C366 1-165-554-91 CERAMIC CHIP
C369 1-115-339-11 CERAMIC CHIP
C381 1-162-964-11 CERAMIC CHIP
C425 1-124-252-00 ELECT
C426 1-162-964-11 CERAMIC CHIP
C427 1-164-739-11 CERAMIC CHIP
C428 1-131-702-11 FILM
C481 1-162-964-11 CERAMIC CHIP
C521 1-164-739-11 CERAMIC CHIP
C522 1-115-339-11 CERAMIC CHIP
C523 1-162-968-11 CERAMIC CHIP
C524 1-164-388-91 CERAMIC CHIP
C525 1-124-252-00 ELECT
C526 1-162-964-11 CERAMIC CHIP
C528 1-115-339-11 CERAMIC CHIP
SRS-D4100/D5100
Ver 1.1
AMP
Remarks
0.001uF 10% 50V
0.33uF 20% 50V
0.001uF 10% 50V
560PF 5% 50V
0.68uF 5% 50V
0.001uF 10% 50V
0.33uF 20% 50V
0.001uF 10% 50V
560PF 5% 50V
0.68uF 5% 50V
470uF 20% 35V
470uF 20% 35V
0.1uF 10% 100V
0.033uF 10% 16V
470PF 10% 50V
24PF 5% 50V
470PF 10% 50V
330PF 10% 50V
0.1uF 10% 16V
330PF 10% 50V
0.1uF 10% 16V
470PF 10% 50V
470PF 10% 50V
0.033uF 10% 16V
0.1uF 10% 100V
0.1uF 10% 50V
0.001uF 10% 50V
0.33uF 20% 50V
0.001uF 10% 50V
560PF 5% 50V
0.68uF 5% 50V
0.001uF 10% 50V
560PF 5% 50V
(D5100)
0.1uF 10% 50V
(D5100)
0.0047uF 10% 50V
(D5100)
270PF 5% 50V
(D5100)
0.33uF 20% 50V
(D5100)
0.001uF 10% 50V
(D5100)
0.1uF 10% 50V
(D5100)
13
