IX57QM/IX55HM
1.8.4

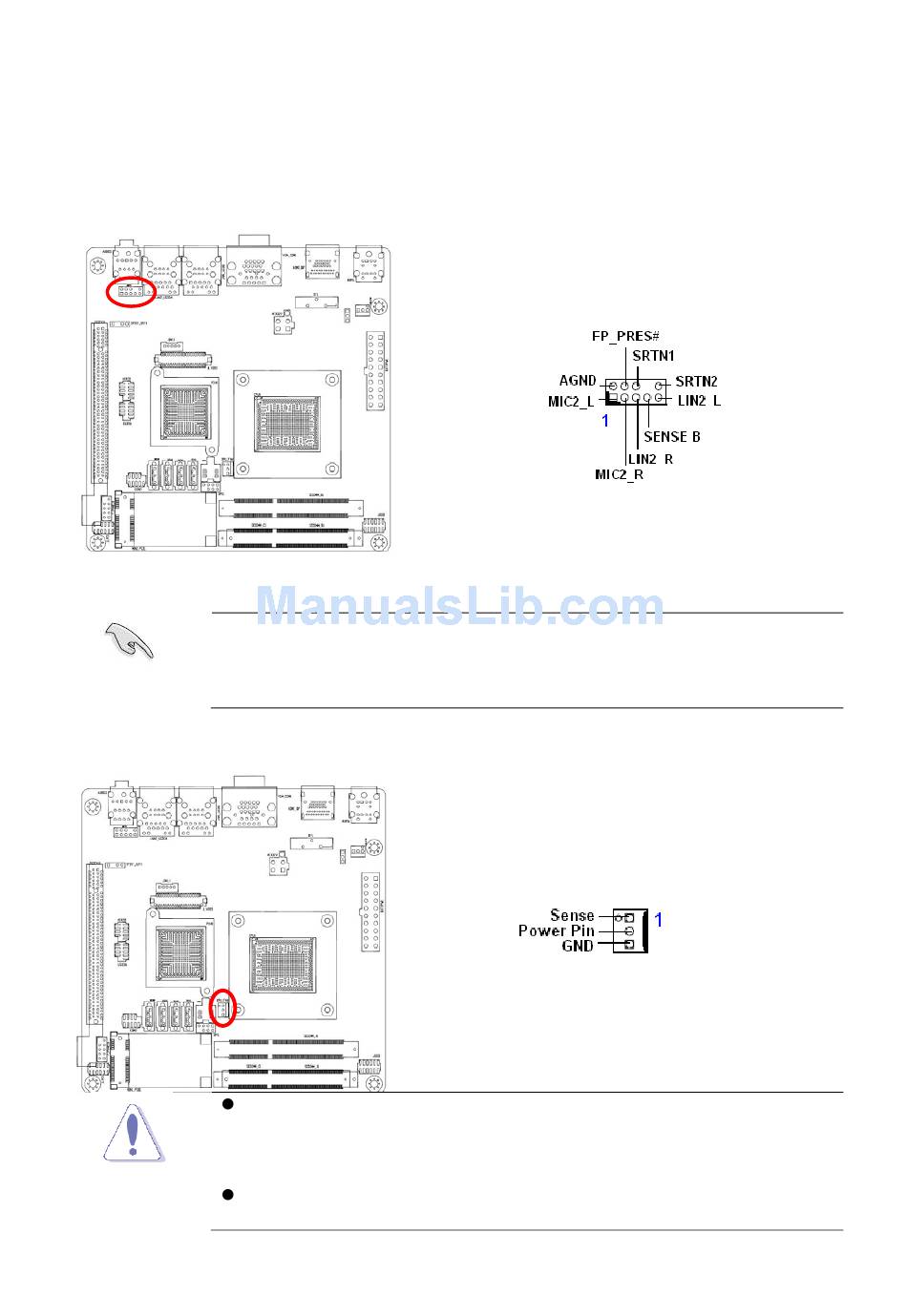

Front Panel Audio Connector (AAFP1)

This connector is for a chassis-mounted front panel audio I/O module that supports either
HD Audio or legacy AC '97 (optional) audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
1.8.5

CPU Fan Connector (CPU_FAN)

32
For motherboards with the optional HD Audio feature, we recommend
that you connect a high-definition front panel audio module to this
connector to avail of the motherboard's high‑definition audio
capability.
Do not forget to connect the fan cables to the fan connectors.
Insufficient air flow inside the system may damage the
motherboard components, and hardware monitoring errors can
occur if you fail to plug this connector.
These are not jumpers! DO NOT place jumper caps on the fan
connectors.
