Service Manual
P/NO : 3828TUL273B(0408-REV03)
Printed in Korea
LCD
Color Television
OWNER'S MANUAL
MODELS: RM-26LZ30
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote this infor-
mation to your dealer when you require service.
Internet Home Page : http://www.lge.com
http://www.lg.ca
Advertisement
Table of Contents
Related Manuals for LG RM-26LZ30
Summary of Contents for LG RM-26LZ30

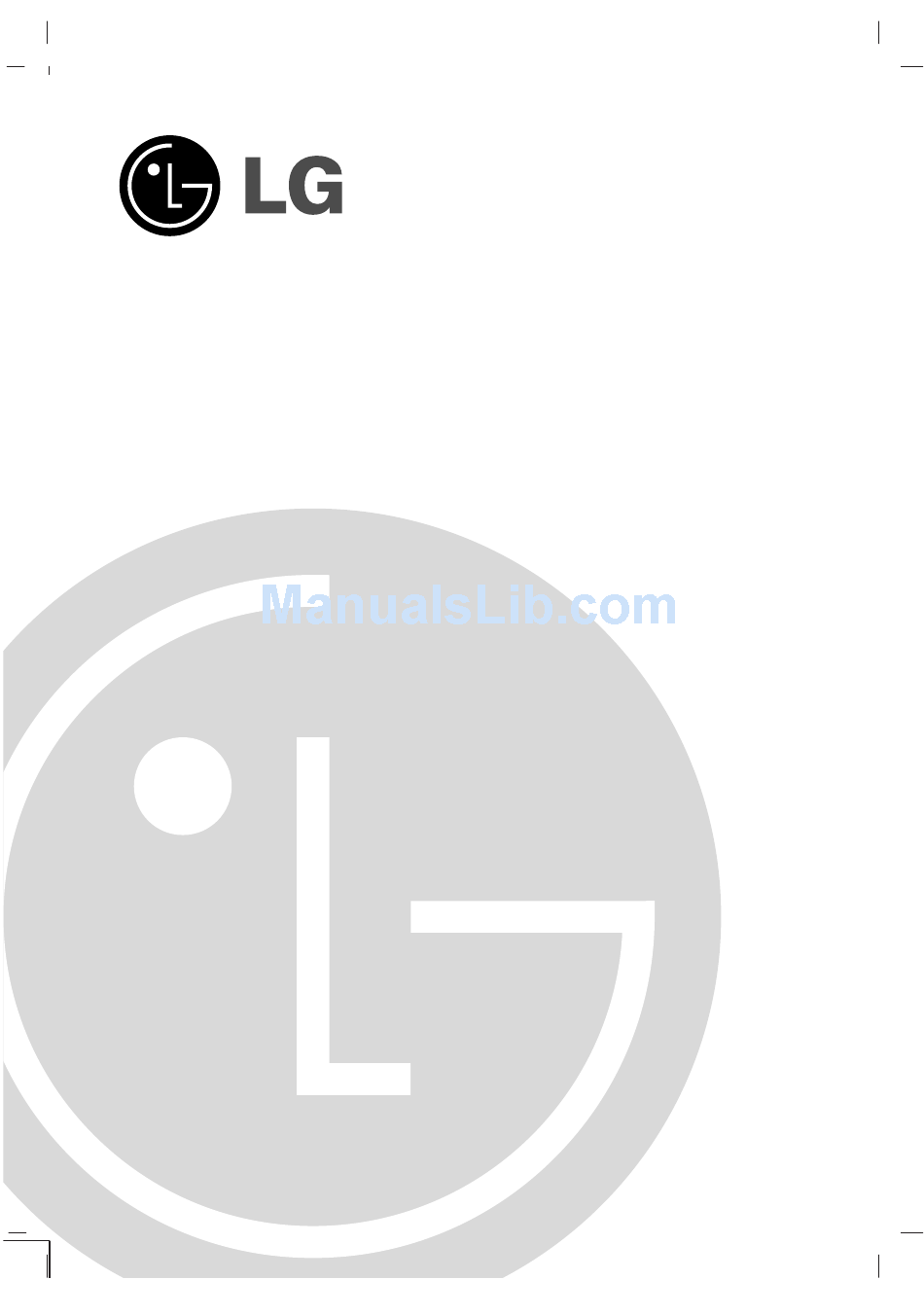

- Page 1 Color Television OWNER’S MANUAL MODELS: RM-26LZ30 Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back cover and quote this infor- mation to your dealer when you require service.
-
Page 2: Warnings
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION: Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product. U.S.A. only ----------------------------------------------- COMPLIANCE: The responsible party for this product’s compliance is:... -
Page 3: Safety Instructions
Safety Instructions Safety Instructions Safety Instructions WARNING : To reduce the risk of fire or electric shock, DO NOT expose this apparatus to rain or moisture. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. - Page 4 Safety Instructions Safety Instructions continued Safety Instructions continued 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over. 13.
-
Page 5: Table Of Contents
Contents Contents Contents Warnings ........2 AVL (Auto Volume Leveler) . -
Page 6: Introduction
Introduction Introduction Introduction Controls Controls Channel Buttons Volume Buttons Enter Button ENTER Menu Button MENU TV·Video Button VIDEO On/Off Button ON/OFF Power/Standby Indicator Remote Control Sensor Glows red in Standby mode, Glows green when the TV is turned on. -
Page 7: Connection Options
Introduction Connection Options Connection Options Audio Input Video Input S-Video Input PC Sound Input DVI Input (RGB Input) Antenna Input Audio / Video Input RS 232C Jack COMPONENT1 (DVD/DTV IN) Remote Control Jack ((480i/480p/720p/1080i), Audio) AC Input... -
Page 8: Remote Control Key Functions
Introduction Remote Control Key Functions Remote Control Key Functions - When using the remote control, aim it at the remote control sensor on the TV. MUTE MULTIMEDIA Switches the sound on or off. Selects: TV, PC Component mode. TV/VIDEO MUTE POWER Selects: Video... -
Page 9: Installation
Installation Installation Installation MUTE POWER Accessories Accessories TV/VIDEO MULTIMEDIA MTS EXIT MENU ENTER AUDIO VIDEO FLASHBK SLEEP 1.5V Remote Control Owner’s Manual AAA Batteries Power Cord Tie Holder DVI-D cable (PC) DVI to D-Sub cable (PC) Audio cable (PC) - Arrange the wires with the tie Holder. NOTES a. -
Page 10: Installation Instruction
Installation Installation Instruction Installation Instruction Rear A/V Cover Rear A/V Cover * The connection panel is hidden behind the A/V cover. a. Remove the cover. b. Install wires as necessary. c. Reinstall the cover. Align the holes on the TV back panel with the two tabs on the rear A/V cover as shown. -
Page 11: External Equipment Connections
Installation External Equipment Connections External Equipment Connections Antenna Connection Antenna Connection - For optimum picture quality, adjust antenna direction. Connecting to an Inside Antenna Setup - Typical wall antenna jack used in apartment buildings, connect the antenna cable as shown below. (Use the correct type of antenna cable for the type of wall antenna jack.) Turn clockwise to tighten. -
Page 12: Vcr Setup
Installation External Equipment Connections Continued External Equipment Connections Continued VCR Setup VCR Setup - In Video mode, TV automatically reverts to TV mode if the FCR button or FLASHBK buttons are pressed. Connection 1 Set VCR switch to 3 or 4 and then tune TV to the same channel number. -
Page 13: External A/V Source Setup
Installation External External A/V Source Setup A/V Source Setup Connections Connect the audio/video output jacks on the external A/V equipment to the corresponding input jacks on the TV. When connecting the TV to external A/V equipment, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red). -
Page 14: Dtv Setup
Installation DTV Setup DTV Setup - To watch digitally broadcast programs, purchase and connect a digital set-top box. Connections Connect the digital set-top box video outputs to the COMPONENT (Y, P ) jacks and connect the digital set-top box audio outputs to the AUDIO jacks. Viewing Setup 1. -
Page 15: Operation
Operation Operation Operation TV Operation Overview TV Operation Overview 1. First, make all equipment connections. Plug the AC Adapter into the TV, then plug the AC Adapter into a power outlet. At this time, the TV is switched to standby mode. •... -
Page 16: Channel Menu Options
Operation Channel Menu Options Channel Menu Options Memorizing the Channels with EZ scan Memorizing the Channels with EZ scan - For Auto program to work, the programming source must be connected to the TV and the TV must be receiving programming sig- nals either over-the-air or from a cable-type service provider. -
Page 17: Favorite Channels Setup
Operation Favorite Channels Setup Favorite Channels Setup - Favorite Channel lets you quickly tune in up to 8 channels of your choice without having to wait for the TV to scan through all the in-between channels. Channel Favorite Ch. EZ Scan - - - - - - - - - - - - - - - - - - Manual prog. -
Page 18: Picture Menu Options
Operation Picture Menu Options Picture Menu Options EZ V EZ V ideo ideo - This function adjusts the TV for the best picture appearance. 1. Press the video button repeatedly to select the picture appearance setup option as shown below. Clear Optimum Soft... -
Page 19: Sound Menu Options
Operation Sound Menu Options Sound Menu Options Audio Audio - This function lets you enjoy the best sound without any special adjustment because the TV selects the appropriate sound option based on the program content. 1. Use the audio button to select the appropriate sound setup as shown below. Flat Music Movie... -
Page 20: Sound Balance
Operation Sound Menu Options continued Sound Menu Options continued Sound Balance Sound Balance Press the MENU button and then use button to select the menu. D D / E E Sound Sound 2. Press the button and then use button to select Balance D D / E E EZ Audio... -
Page 21: Auto Clock Setup
Operation imer Menu Options imer Menu Options Auto Clock Setup Auto Clock Setup - The time is set automatically through from a PBS broadcast signal. - The PBS channel signal includes information for the correct time and daylight saving time. Timer Auto Clock Clock... -
Page 22: On/Off Timer Setup
Operation imer Menu Options continued imer Menu Options continued On/Of imer Setup On/Of imer Setup - Timer function operates only if current time is set. - Off-Timer function overrides On-Timer function if they are set to the same time. - The TV must be in standby mode for the On-Timer to work. - If you don’t press any button within 2 hours after turning on the TV with the On-Timer function, the TV will automatically revert to standby mode. -
Page 23: Special Menu Options
Operation Special Menu Options Special Menu Options Closed Captions Closed Captions Closed captioning is a process which converts the audio portion of a television program into written words which then appear as sub- titles on the television screen. Closed captions allow viewers to read the dialogue and narration of television programs. Using Closed Captions Captions are the subtitles of the dialogue and narration of television programs. -
Page 24: Caption/Text
Operation Special Menu Options continued Special Menu Options continued Caption/T Caption/T 1. Press the MENU button and then use button to select the SPECIAL D D / E E Special Language menu. Caption/Text 2. Press the button and then use button to select Caption / Text D D / E E... -
Page 25: Lock Menu Options
Operation Lock Menu Options Lock Menu Options Parental Control can be used to block specific channels, ratings and other viewing sources. The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcast station. The default setting is to allow all programs to be viewed. -
Page 26: Lock Menu Setup
Operation Lock Menu Options continued Lock Menu Options continued Lock Menu Setup Lock Menu Setup Special Parental Language Lock Caption / Text Set password Captions MPAA Key lock Age block Parental To set Content block Set ID Aux. block Canadian OK MENU OK MENU 1. -
Page 27: Pc Menu Options
Operation PC Menu Options PC Menu Options (only DVI-Analog mode) (only DVI-Analog mode) - After setup, be sure to select PC source to see the PC image on TV screen. H-Position V-Position Clock Phase Auto Configure Reset OK MENU 1. Press the MENU button and then use button to select the menu. -
Page 28: External Control Device Setup
External Control Device Setup External Control Device Setup External Control Device Setup External Control Device Setup - Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) and control the Monitor’s functions externally. - Connect the serial port of the control device to the RS-232C jack on the Monitor back panel. - Page 29 External Control Device Setup External Control Device Setup Set ID Set ID - Use this function to specify a monitor ID number. - Refer to ‘Real Data Mapping 1’. See page 30. Special 1. Press the MENU button and then use button to select the Special D D / E E...
- Page 30 External Control Device Setup External Control Device Setup 05. Volume Mute (Command:e) 01. Power On (Command:a) G To control Power On/Off of the TV. G To control volume mute on/off. You can also adjust mute using the MUTE button on Transmission remote control.
- Page 31 External Control Device Setup External Control Device Setup 09. Color (Command:i) 14. Tune Command (Command:m a) G To adjust the screen color. G Tune channel to following Physical/major/minor number. You can also adjust color in the Picture menu. Transmission Transmission [m][a][ ][Set ID][ ][Data0][ ][Data1][Cr] [k][i][ ][Set ID][ ][Data][Cr] Data0: Channel Number...
-
Page 32: Ir Codes
IR Codes IR Codes IR Codes IR Codes How to Connect How to Connect G Connect your wired remote control to the Remote Control port on the Monitor. Remote Control IR Code Remote Control IR Code G Output waveform Single pulse, modulated with 37.917KHz signal at 455KHz Carrier frequency = 1/T Duty ratio = T1/T... - Page 33 IR Codes IR Codes Code (Hexa) Function Note POWER ON R/C Button POWER OFF R/C Button TV/VIDEO R/C Button (TV/Video1-2/S-video/Component/RGB/DVI) MULTIMEDIA R/C Button (Component/PC/TV) Discrete IR Code (Input TV Selection) Video1 Discrete IR Code (Input Video1 Selection) Video2 Discrete IR Code (Input Video2 Selection) Component 1 Discrete IR Code (Input Component Selection) Discrete IR Code (Input RGB Selection)
-
Page 34: Maintenance
Maintenance & Product Specifications Maintenance & Product Specifications Maintenance Maintenance - Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning. Cleaning the Screen Cleaning the Screen 1. -
Page 35: Troubleshooting Checklist
Troubleshooting Checklist roubleshooting Checklist roubleshooting Checklist SYMPTOMS No power No picture or sound Poor picture but good sound Poor reception Lines in picture Ghosts (multiple images) Remote control does not work. Cannot tune desired channel. CHECK THESE THINGS Is power cord plugged in ? Is television turned on ? Check batteries in remote control.
