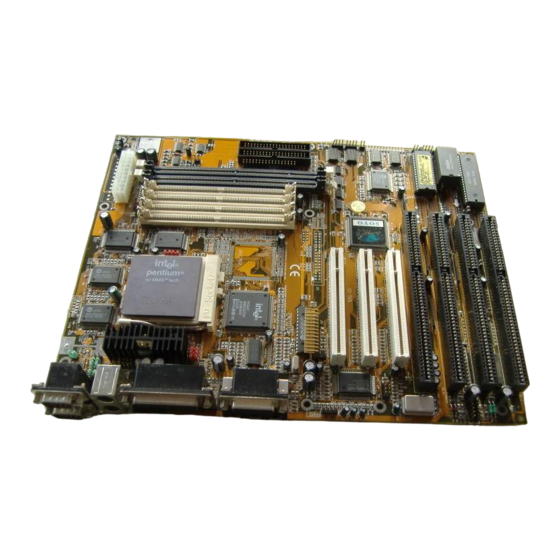

SOYO 82430 HX/P54C User's Manual & Technical Reference
  1. Manuals
  2. Brands
  3. SOYO Manuals
  4. Motherboard
  5. 82430 HX/P54C
  6. User's manual & technical reference

SOYO 82430 HX/P54C User's Manual & Technical Reference

Pci mainboard
Hide thumbs Also See for 82430 HX/P54C:
Table of Contents

Advertisement

Quick Links

Download this manual
Ê
Pentium
82430 HX/P54C PCI Mainboard
User's Guide &
Technical Reference
5TX2/X5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 82430 HX/P54C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOYO 82430 HX/P54C

Summary of Contents for SOYO 82430 HX/P54C

  • Page 1 Ê Pentium 82430 HX/P54C PCI Mainboard User’s Guide & Technical Reference 5TX2/X5...

  • Page 2: About This Guide

    It is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to infringe upon or assist others to infringe upon such rights.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1: Introduction ..........1 Key Features ................1 Adaptec 7880 Key Features........... 2 Creative CT2505 (Vibra 16C) Key Features ......2 Unpacking the Mainboard ............3 Electrostatic Discharge Precautions..........3 Mainboard Layout w/ Default Settings ........4 Chapter 2: Hardware Setup ..........
  • Page 4 J17 Ð Keylock & Power LED Connector ......17 CN3 Ð PS/2 Mouse, PS/2 Keyboard Connector ....18 PRT Ð Parallel Port Connector ..........18 J25 Ð SCSI Device LED ............18 J23: Sleep Switch Connector Enable/Disable ..... 18 CN9 Ð Speaker Out Jack, MIC In Jack, Line In Jack..18 J18 Ð...

  • Page 5: Chapter 1: Introduction

    1 Introduction The 82430 HX PCI mainboard is a high-performance multimedia and ATX form-factor system board that supports P54CX/P55CX family CPUs. You can order 256K or 512K of external cache memory on the mainboard. The mainboard is fully compatible with industry standards, and adds many technical enhancements.

  • Page 6: Adaptec 7880 Key Features

    Introduction (key Features Continued) ¥ Onboard creative CT-2505 sound chip and audio phone jacks ¥ Onboard Adaptec 7880 U/W SCSI chip and U/W SCSI connectors ¥ Software power-off support (To enable this function, change ÒPower ManagementÓ to ÒUser DefineÓ first in the BIOS Setup section) Adaptec 7880 Key Features ¥...

  • Page 7: Unpacking The Mainboard

    Introduction Unpacking the Mainboard The mainboard package contains: ¥ The 82430HX / P54C Mainboard ¥ One Mainboard User's Guide, two Audio UserÕs Guides, and two SCSI Utility User's Guides ¥ One IDE Bus Master driver, five audio drivers diskettes, and three SCSI Utility diskettes Note: Do not unpack the mainboard until you are ready to install it.

  • Page 8: Mainboard Layout W/ Default Settings

    Introduction Mainboard Layout w/ Default Settings 22 22 22 Figure 1Ð1. Mainboard Layout 1. P54C in ZIF socket 7 14. Floppy Connector 2. 82430 HX Chipset 15. IDE1/IDE2 Connector 3. Pipelined Burst SRAM 16. Wave Table Connector 4. Adaptec 7880 Chip 17.
  • Page 9 Introduction Default settings are as follows: Pentium 100MHz (P54CX) CPU, 256K Pipelined Burst cache, On-board PCI E-IDE Enabled, 2 high speed UARTS Enabled (w/ 16550 FIFO), 1 EPP/ECP port (ECP + EPP mode), and 5V DRAM/3.3V DIMM. LINE COM2 COM1 USB2 PS/2 KB PS/2...

  • Page 10: Chapter 2: Hardware Setup

    2 Hardware Setup This chapter explains how to configure the mainboardÕs hardware. After you install the mainboard, you can set jumpers, install memory on the mainboard, and make case connections. Refer to this chapter whenever you upgrade or reconfigure your system. CAUTION: Turn off power to the mainboard, system chassis, and peripheral devices before performing any work on the...

  • Page 11: Jps2: Ps/2 Mouse Function Jumper

    Hardware Setup JPS2: PS/2 Mouse Function Jumper Set PS/2 mouse function enabled or disabled. PS/2 Mouse Function JPS2 Disabled (default) Enabled Note: The IRQ12 is dedicated to the PS/2 mouse when choosing enabled of PS/2 Mouse Function. JP70: Wide SCSI Loading Selection Jumper If you connect more than 6 of the Wide SCSI device drivers, you need to set the jumper JP70 closed to enhance the data signal to make transmission more stable.

  • Page 12: Cpu Type Configuration

    Hardware Setup CPU Type Configuration This section shows you how to configure your CPU step by step. Note that you need to check the CPU voltage before installation. Step 1: Frequency Setting Pentium – 75/90/100 CPU Settings (1.5 x clock) AMD K5 –...

  • Page 13: Pentium Ð 100/120/133 Cpu Settings (2.0 X Clock)

    Hardware Setup Pentium – 100/120/133 CPU Settings (2.0 x clock) Cyrix 6x86/6x86L – P120 + /P133 +/ P150 + /P166 + CPU Settings (2.0 x clock) Pentium – 100/50MHz Cyrix 6x86/6x86L – P120 + /50 MHz 12345 Cyrix 6x86/6x86L – P133 + /55 MHz 1234 5 Pentium –...

  • Page 14: Pentium Ð 150/166 Cpu Settings (2.5 X Clock)

    Hardware Setup Pentium/AMD – 150/166 CPU Settings (2.5 x clock) Pentium – 150/60 MHz AMD K5 – PR150 12345 Pentium – 166/66 MHz 12345 AMD K5 – PR166 1 345 Figure 2Ð1Ð3. CPU Jumper Settings Note: You must equip the CPU with a fan and heat sink for system stability.

  • Page 15: Pentium Ð 180/200 Cpu Settings (3.0 X Clock)

    Hardware Setup Pentium – 180/200 CPU Settings (3.0 x clock) Pentium – 180/60 MHz 12345 12345 Pentium – 200/66 MHz 1 345 Figure 2Ð1Ð4. CPU Jumper Settings Note: You must equip the CPU with a fan and heat sink for system stability.

  • Page 16: Step 2: Cpu Single/Dual Voltage Setting

    Hardware Setup Step 2: CPU Single/Dual Voltage Setting Single Voltage CPU Setting Signal voltage CPUs use the same voltage for VIO and VCore and has been used traditionally. The CPUs which fall into this category are Intel P54CX, AMD-K5-PRxxxBx, AMD-K5-PRxxxCx, AMD-K5-PRxxxFx, and Cyrix 6x86.

  • Page 17: Dual Voltage Cpu Setting

    Hardware Setup Dual Voltage CPU Setting Dual voltage CPUs are designed to use different voltage for VIO and VCore and they include Intel P55CX, Cyrix 6x86L, and Cyrix M2. Refer to the following figures to set these CPUsÕ voltage: = 2.5V CORE JP32 JP34...

  • Page 18: Memory Configuration

    Hardware Setup Memory Configuration The mainboard supports two banks of 72-pin SIMM, EDO DRAM, and two strips of 3.3V/5V Unbuffered DIMM. The mainboard requires SIMM of at least 70ns access time. The mainboard supports from 4 to 512 Mbytes with no other restrictions on memory configurations.

  • Page 19: Cache Configuration

    Hardware Setup Cache Configuration The mainboard has a write-back caching scheme. You can order 256KB or 512KB Level 2 Pipelined Burst cache onboard to improve the system performance. Cache Size and RAM Locations Cacheable Cache Size Cache RAM TAG RAM Range 256KB 32K x32, 2 pcs...

  • Page 20: Connectors

    Hardware Setup Connectors Attach the mainboard to case devices, or an external battery, via connectors on the mainboard. Refer to Figure 1-1 for connector locations and connector pin positions. ATX PW — ATX Power Supply Connectors The motherboard provides an ATX power supply connector. It is a twenty-pin male header connector.

  • Page 21: Cn2 Ð Cd-Rom Audio In Connector

    Hardware Setup CN2 – CD-ROM Audio In Connector Connect a 4-pin audio cable, which is provided by the CD-ROM manufacture, from the Audio-out port of the CD-ROM drive to this connector, and also for transferring the audio signal from the CD-ROM to the speakers system, connect speakers system audio-in cable to speaker out jack of this mainboard.

  • Page 22: Cn3 Ð Ps/2 Mouse, Ps/2 Keyboard Connector

    Hardware Setup CN3 – PS/2 Mouse, PS/2 Keyboard Connector Attach PS/2 mouse and PS/2 keyboard cables directly to these connectors for enabling the mouse and keyboard functions. And also, you need to enable the PS/2 mouse function by putting the jumper cap on JPS2 jumper.

  • Page 23: Chapter 3: Bios Setup

    3 BIOS Setup The mainboardÕs BIOS setup program is the ROM PCI/ISA BIOS from Award Software Inc. Enter the Award BIOS programÕs Main Menu as follows: 1. Turn on or reboot the system. After a series of diagnostic checks, you are asked to press DEL to enter Setup. 2.

  • Page 24: Standard Cmos Setup

    BIOS Setup Standard CMOS Setup Run the Standard CMOS Setup as follows. 1. Choose ÒSTANDARD CMOS SETUPÓ from the Main Menu. A screen appears. ROM PCI/ISA BIOS STANDARD CMOS SETUP AWARD SOFTWARE, INC. Date (mm:dd:yy) : Fri, Feb 1 1995 Time (hh:mm:ss) : 7 : 30 : 33 HARD DISKS...

  • Page 25: Bios Features Setup

    BIOS Setup BIOS Features Setup Run the BIOS Features Setup as follows. 1. Choose ÒBIOS FEATURES SETUPÓ from the Main Menu and a screen with a list of items appears. (The screen below shows the BIOS default settings.) ROM PCI/ISA BIOS BIOS FEATURES SETUP AWARD SOFTWARE, INC.

  • Page 26: Bios Setup

    BIOS Setup Swap Floppy Enabled changes the sequence of the A: and B: Drive drives. (The Default setting is Disabled.) Boot Sequence The default setting attempts to first boot from drive A:, drive C, or CD-ROM. You can reverse this sequence with ÒC: A:Ó, but then drive A: cannot boot directly.

  • Page 27: Chipset Features Setup

    BIOS Setup Video or BIOS shadow copies BIOS code from slower ROM Adapter BIOS to faster RAM. BIOS can then execute from RAM. Shadow These 16K segments can be shadowed from ROM to RAM. BIOS is shadowed in a 16K segment if it is enabled and it has BIOS present.
  • Page 28 BIOS Setup A short description of screen items follows: Auto Configuration Enable this option (strongly recommended) and the system automatically sets all options on the left side of the screen (except cache update mode & BIOS cacheable). If this option is Enabled you must boot from Turbo mode.
  • Page 29 BIOS Setup Video BIOS Cacheable Disabled: The video BIOS C0000H- C7FFFH is not cached. Enabled: The video BIOS C0000H- C7FFFH is cacheable if cache controller is enabled. 8Bit I/O Recovery Time Use the default setting. 16Bit I/O Recovery Use the default setting. Time Memory Hole At 15M- Choose Enabled or Disabled (default).

  • Page 30: Power Management Setup

    BIOS Setup Power Management Setup The Power Management Setup option sets the systemÕs power saving functions. Run the Power Management Setup as follows. 1. Choose ÒPOWER MANAGEMENT SETUPÓ from the Main Menu and a screen with a list of items appears. ROM PCI/ISA BIOS CMOS SETUP UTILITY POWER MANAGEMENT SETUP...
  • Page 31 BIOS Setup PM Control by Choose Yes or No (default). APM stands for Advanced Power Management. To use APM, you must run Òpower.exeÓ under DOS v6.0 or later version. Video Off Method Choose V/H Sync+Blank (default), Blank screen, or DPMS for the selected PM mode. Doze Mode When the set time has elapsed, the BIOS sends a command to the system to enter doze mode...

  • Page 32: Pnp/Pci Configuration Setup

    BIOS Setup PNP/PCI Configuration Setup This option sets the mainboardÕs PCI Slots. Run this option as follows: 1. Choose ÒPNP/PCI CONFIGURATION SETUPÓ from the Main Menu and the following screen appears. (The screen below shows default settings.) ROM PCI/ISA BIOS PNP/PCI CONFIGURATION AWARD SOFTWARE, INC.

  • Page 33: Load Setup Defaults

    BIOS Setup IRQX and Choose PCI/ISA PnP or Legacy ISA. If the first DMAX assigned item is set to Manual, you could choose IRQX and DMAX assigned to PCI/ISA PnP card or ISA card. PCI IRQ Choose Edge or Level. Most PCI trigger signals Activated By are Level.

  • Page 34: Load Bios Defaults

    BIOS Setup Load BIOS Defaults Choose this item and the following message appears: ÒLoad BIOS Defaults (Y/N)?NÓ To use the BIOS defaults, change the prompt to ÒYÓ and press <Enter>. Note: BIOS DEFAULTS values are adjusted for high performance. If you run into any problems after loading BIOS DEFAULTS, please load the SETUP DEFAULTS for the stable performance.
  • Page 35 BIOS Setup A short description of screen items follows: IDE HDD Block Mode Choose Enabled (default) or Disabled. Enabled invokes multi-sector transfer instead of one sector per transfer. Not all HDDs support this function. PCI Slot IDE 2nd Channel Choose Enabled (default) or Disabled. When Enabled is set, IRQ15 is dedicated for secondary IDE use.
  • Page 36 BIOS Setup Onboard Parallel Port Choose the printer I/O address: 378H/IRQ7 (default), 3BCH/IRQ7, 278H/IRQ5 Onboard Printer Mode Choose ECP + EPP (default), SPP or EPP, ECP mode. The mode depends on your external device that connects to this port. ECP Mode DMA Select Choose DMA3 (default) or DMA1.

  • Page 37: Supervisor Password

    BIOS Setup Supervisor Password Based on the setting you made in the ÒSecurity OptionÓ of the ÒBIOS FEATURES SETUPÓ, this Main Menu item lets you configure the system so that a password is required every time the system boots or an attempt is made to enter the Setup program.

  • Page 38: User Password

    BIOS Setup User Password Based on the setting you made in the ÒSecurity OptionÓ of the ÒBIOS FEATURES SETUPÓ, this Main Menu item lets you configure the system so that a password is required every time the system boots or an attempt is made to enter the Setup program.

  • Page 39: Ide Hdd Auto Detection

    BIOS Setup IDE HDD Auto Detection This Main Menu item automatically detects the hard disk type and configures the STANDARD CMOS SETUP accordingly. This function is only valid for IDE hard disks. Note: ROM PCI/ISA BIOS CMOS SETUP UTILITY AWARD SOFTWARE, INC. HARD DISKS TYPE SIZE...

  • Page 40: Chapter 4: Drivers Installation Guide

    4 Drivers Installation Guide IDE BUS Master Installation Guide MS-DOS/WINDOW/WFW 1) You should install CD-ROM in secondary channel in Windows (WFW). 2) Change the current directory to a: or b:. 3) Under DOS command line prompt, run the SETUP directly. After entering the setup utility, just follow the instructions of the setup.

  • Page 41: Windows 95

    Drivers Installation Guide WINDOWS 95 1) Close any running applications. 2) Insert the floppy disk into drive A:. 3) Open ÒMy ComputerÓ, double click ÒDrive A:Ó. 4) Double click ÒWin95Ó. 5) Double click the Setup program. 6) Then just follow the instruction. NOVELL 3.X&4.X 1) Copy the driver TRIN4X.DSK or TRIN312.DSK to the subdirectory which holds the file SERVER.EXE.

  • Page 42: Sco Unix 5.0

    Drivers Installation Guide 5) Now, insert a blank diskette into the floppy drive A and type: tar cvf /dev/<your floppy drive A device name>. (Note: there is a period at the end of the last command.) Your floppy drive A device name could be: ¥...

  • Page 43: Os/2 2.0 And Warp 3.X

    Drivers Installation Guide OS/2 2.0 and WARP 3.X 1) Copy TRIOS2.ADD from the floppy diskette to your hard disk under the OS2 directory (i.e., C:\OS2). 2) Edit C:\CONFIG.SYS to replace BASEDEV=IBM1S506.ADD with BASEDEV=TRIOS2.ADD 3) Reboot the system. Note: For more information (like parameter settings, driver de- installation, etc.), please refer to the README.TXT file on the diskette.
