Kettler 7172-000 Assembly Instruction Manual
  1. Manuals
  2. Brands
  3. Kettler Manuals
  4. Fitness Equipment
  5. 7172-000
  6. Assembly instruction manual

Kettler 7172-000 Assembly Instruction Manual

Table tennis table
Hide thumbs

Advertisement

Quick Links

Download this manual
Adult Assembly Required
KETTLER® International, Inc.
Please do not return this product to
the store. Contact KETTLER® for
parts and service: call toll free
866.804.0440 or send email to
parts@kettlerusa.com.
Please visit our website
www.kettlerusa.com to view a video
demonstration of product assembly
or scan the QR Code above.

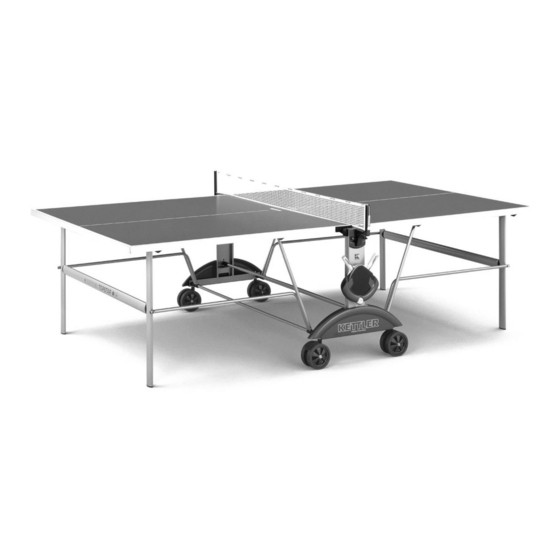

Top Star XL Table Tennis Table
Model 7172-000
1355 London Bridge Road
www.kettlerusa.com
info@kettlerusa.com
Made in Germany
Virginia Beach, VA 23453 USA
Tools needed; not included
Picture Similar

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7172-000 and is the answer not in the manual?

Questions and answers

Related Manuals for Kettler 7172-000

Summary of Contents for Kettler 7172-000

  • Page 1 1355 London Bridge Road Virginia Beach, VA 23453 USA www.kettlerusa.com info@kettlerusa.com Please do not return this product to the store. Contact KETTLER® for Tools needed; not included parts and service: call toll free 866.804.0440 or send email to parts@kettlerusa.com. Please visit our website www.kettlerusa.com to view a video...

  • Page 2: Number

    In spite ® of this, should you have any cause for complaint, please contact KETTLER Note on Safety ...

  • Page 3: Number

    Then use section and that all items are undamaged. If there spanner for final tightening. Then check that all are any problems, please contact KETTLER®.  Before assembling the equipment, study the screw connections have been tightened firmly.
  • Page 4 Package Contents (continued) Number Included - 4 Number Included - 1 Number Included - 1 Number Included - 2 Number Included - 4 Number Included - 2 Number Included - 2 Number Included - 2 Number Included - 2 Number Included - 4 Number Included - 2 Number Included - 2 Items below are shown at actual size...
  • Page 5 Package Contents (continued) Items below are shown at actual size Number Incl – 2 Number Incl – 4 Number Incl – 4 Number Incl – 2 Number Incl – 6 dia 25x8 Number Incl – 16 Number Incl – 10 dia 16x8 dia 12x6 Number Incl –...
  • Page 6 Assembly Begin the assembly of your table by carefully removing the plastic wrap and all of the loose contents. Separate the two table tops by removing the four plastic corner protectors and the plastic side strips. Step 1 2 Required 2 Required Align footlock with stemtube.
  • Page 7 Assembly Step 2 Install locking wheels. The grooves of the wheels should face inward. Do not over torque; wheels should roll smoothly. Push down foot lock to lock the wheels. Install locking wheels on both wheelbase assemblies. 2 Required 2 Required 8 Required m8x110 dia 16x8...
  • Page 8 Assembly Step 2 (continued) Install non-locking wheels. Do not over torque; wheels should roll smoothly. Install non-locking wheels on both wheelbase assemblies. 2 Required 8 Required dia 16x8 2 Required m8x110 16x8 16x8 16x8 16x8...
  • Page 9 Assembly Install H-Pad to Flange (A-C). Step 3 Install crossbar between wheelbase assemblies. Take note of wheelbase assembly positions. The assembly thus far should match photo I. 4 Required 2 Required m8x60 2 Required dia 25x8 25x8...
  • Page 10 Assembly Step 4 Assemble Racquet and Ball holder as shown. 3 Required 4x30...
  • Page 11 Assembly Step 5 Attach Racquet and Ball holder to the outside of one wheelbase assembly as shown. 2 Required 2 Required 2 Required dia 12x6 m6x16 12x6...
  • Page 12 Assembly Step 6 Attach Glides to tops as shown. Note the position of the Glide to the corresponding table side. 4 Required 4 Required 4 Required dia 12x6 m6 locking 12x6 12x6...
  • Page 13 Assembly Step 7 Assemble frame on each top as shown. To line up holes stand legs up as shown in I and J. Ensure that the text on the crossbar is upside down as shown in K. Insert footcap into each leg as shown in L. After completion of Step 7, the top with frame attached should match M.
  • Page 14 Assembly Step 7 (continued) Step 8 Temporarily install safety knobs to wheelbases for the top assembly.
  • Page 15 Assembly Two adults are required to complete Steps 9-14. Complete Step 9 and 10 for one top and then repeat for the other side. Step 9 Lock safety knob 1 in place (A, B). Lift table and align the Glides with the Wheelbase (C, D) On the opposite wheelbase, hold knob 2 in place while lowering top (D).
  • Page 16 Assembly One adult is required to support top while another completes Step 10 assembly. Step 10 Bolt Crossbar to Wheelbase as shown. Repeat Step 9 and 10 for the other top. 2 Required 2 Required dia 25x8 m8x60...
  • Page 17 Assembly Step 11 Open tops slightly. Have one adult hold tops in this position while second adult completes steps 12 to 14. To open top, lock safety knob 1 in place. Go to opposite wheelbase and hold knob 2 while opening top. Release knob 2.
  • Page 18 Assembly Step 13 Assemble net post panel and flange as shown. 4 Required 4 Required 4 Required m6x20 dia 12x6 m6x20 12x6...

  • Page 19: Number

    3.9x16 Step 15 Cover open holes on wheelbase without racquet holder. Note: An additional racquet and ball holder can be purchased by calling KETTLER Parts and Service Department at 866-804-0440 and requesting part number 7094-999 or visit 2 Required www.kettlerusa.com.
  • Page 20 Assembly Step 16 Open table into playing position to continue. To open table, lock knob 1 by pushing toward net post (A, B). On opposite wheelbase, press and hold knob 2 while lowering top (C, D). Release when Glide passes knob assembly. Completed half will appear as shown in E.
  • Page 21 Assembly Step 17 Install Shrouds to each Wheelbase. 4 Required 3.9x25 2 Required 3.9x25 2 Screws...
  • Page 22 Assembly Assembly Net Assembly Slide Jpin through net (A, B). Place Jpin in designated slots (C). Tie string to tension tab (D). Place string in slots over Jpin and net post. Adjust net tension by adjusting tension tab (E). Screw Adjuster into underside of net post (F, G).
  • Page 23 Assembly Remove Film Remove protective plastic film from table surface. Folding Table (for solo playback or storage) To properly fold the table, lock knob 1 by pressing toward the net post (A, B). On opposite side of table, press and hold knob 2 while raising the table top (C). Release knob 2 and raise the top completely (D, E, F).
  • Page 24 United States only. Any shipment outside of the United States will be at the sole cost of the customer. This KETTLER® Limited Warranty is a manufacturer’s warranty and is not changed or modified by additional warranties extended by individual retailers at the point of sale. Manufacturer warrants this product to be free from defects in material at the time of the product’s tender of delivery for a period of 5...

  • Page 25: Number

    Important: Spare part prices do not include fastening materials; if fastening material (bolts, nuts, washers, etc.) is required, this should be clearly stated on the order by adding the words “with fastening material”. Contact: KETTLER® International Inc., 1355 London Bridge Road, Virginia Beach, VA 23453 USA Online: www.kettlerusa.com E-mail: info@kettlerusa.com...
  • Page 26 Spare Parts...

  • Page 27: Number

    Spare Parts Spare Part Number Number for 7172-000 Number Description Required Outdoor 94130115 94110761 Crossbar 94110819 Footcap 70130823 Support Leg 94110814 Clamp 10128028 Clamp for Glide 70131000 Jbar 94110822 Crossbar 94110712 Wheel (non-locking) 94110848 Wheel (locking) 94110847 Footlock 70130816 Wheelbase...
  • Page 28 All rights reserved. No part of this ® manual may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, such as electronic, mechanical, photocopying or otherwise, without the prior written permission of KETTLER ® KETTLER ® International Inc.,...
