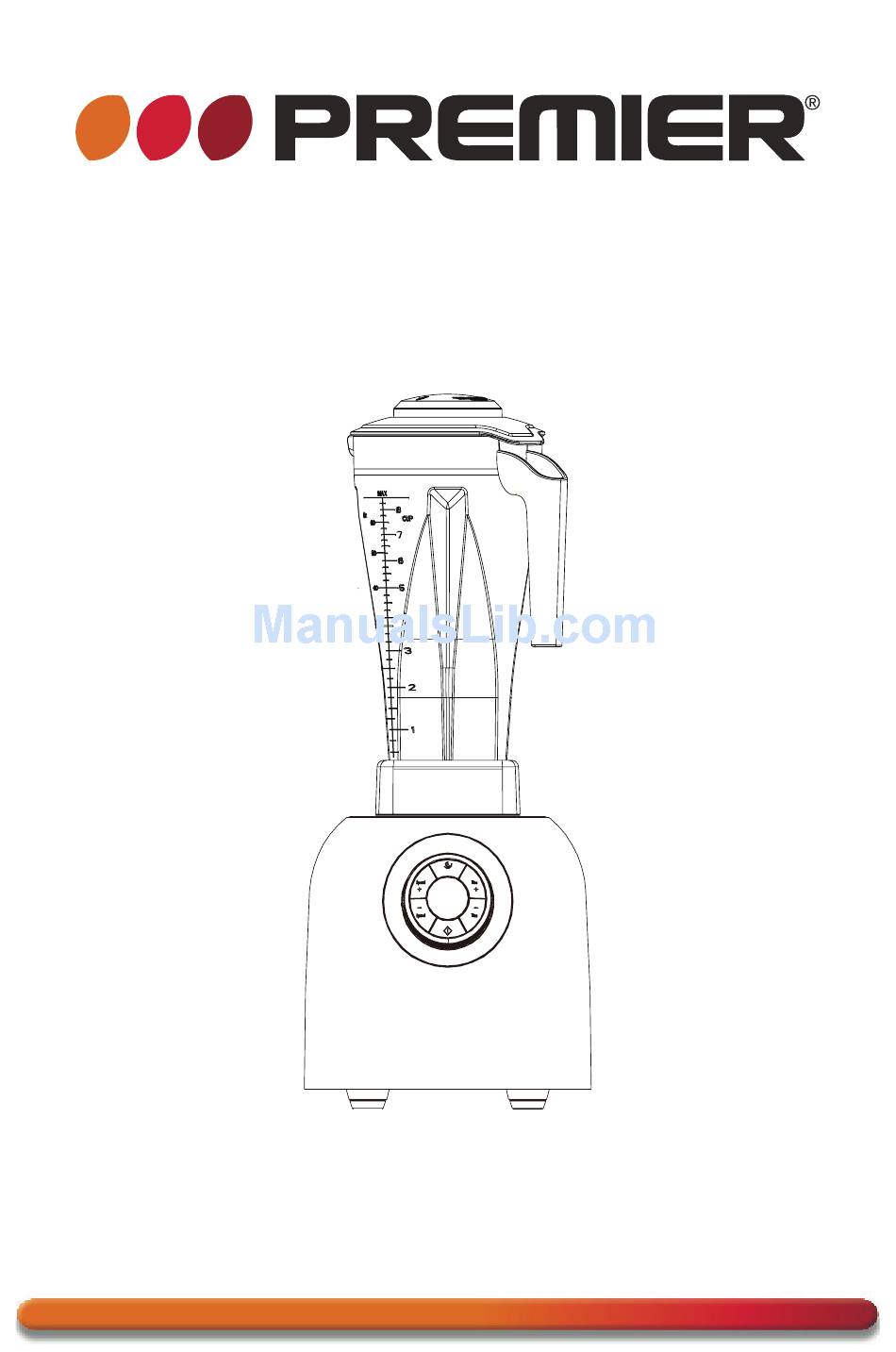

- Page 1 INSTRUCTION MANUAL PROFESSIONAL BLENDER ED-5189PRO DEAR CUSTOMER In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference. If you need extra support, please write to info@premiermundo.com...
-
Page 3: Table Of Contents
Control Panel ..................4 How to Use ..................4 Lid, Measuring Cup, Seal Ring ............8 Cleaning & Storage ................8 Notice for Operation ...............8 Circuit Diagram & Specifications ............9 PREMIER CUSTOMER SERVICE Venezuela : 0800 – ELECTRIC (353-2874) Panama : 300-5185 Website : www.premiermundo.com... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS • Before plugging in the appliance, check that the electrical rating shown on the rating plate corresponds with your household electricity supply. • Never immerse the unit base of the appliance in water or other fluid, nor rinse it under the tap, to avoid risk of short-circuit or electric shock. -
Page 5: Parts Description
PART DESCRIPTION Measuring Cup Lid Silicone Ring Blender Jug Blade Assembly Blade Mount Fi ed Support Blender Jug Mat Drive Gear Safety Switch Motor unit Control Panel Transparent sheet LED Display Jog dial Power Cord Anti-skid Rubber Foot... -
Page 6: Control Panel
CONTROL PANEL Manual Button Pulse Button Program Button 3 on left, 3 on right Time Setting Time Display Selection Dial (can turn clockwise & anticlockwise Speed Display START/STOP (ON/OFF) Button HOW TO USE • Remark : Background of digital display is black, and all digits & icons are white. Wide viewing angle. - Page 7 HOW TO USE • Time Setting Buttons ( When the time is within 1 minute, “01:00”, press once increases 5 seconds, and press once decreases 5 seconds. When the time is more than 1 minute “01:00”, press once increases 10 seconds, and press once decreases 10 seconds.
- Page 8 HOW TO USE • START/STOP(ON/OFF) Button • This button is to start the operation. After a function is selected, the product will only operate after pressing the button. Press again to stop operation. In Ready Mode and Standby Mode, this button flashes red light. It display green light in operation.
- Page 9 HOW TO USE • Instruction of All Working Modes • Manual Mode Use the Selection Dial to select the icon. The adjust the Time Setting and Speed Setting. The press Button to start operation. If the user wants to stop the operation, press the Button again.
-
Page 10: Lid, Measuring Cup, Seal Ring
LID, MEASURING CUP, SEAL RING • Insert the measuring cup to the lid by aligning the two taps to the grooves of the lid and twist to lock it at the bottom position. Then push in the lid to the blender jar to close it. -
Page 11: Circuit Diagram & Specifications
CIRCUIT DIAGRAM 120V~60Hz Interlock Switch MBL16 9540 Motor Non self-resetting thermal protector (Tf130) SPECIFICATIONS Product : COMMERCIAL BLENDER Model : ED-5189PRO Rating : 120V ~ 60Hz Max Power : 1400W Dimensions : 225mm (L) x 225mm (W) x 525mm (H) - Page 15 P-10...
- Page 16 P-11...
- Page 17 P-12...
- Page 18 P-13...
- Page 19 P-14...
- Page 20 P-15...
- Page 21 P-16...
- Page 22 P-17...
- Page 23 P-18...
