Model
MWB 558
Retain This
Manual for
Reference
09-12-03
OWNER'S
MANUAL
MARCY WEIGHT BENCH
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
MWB -558
Advertisement
Table of Contents
Related Manuals for Impex MARCY MWB -558
Summary of Contents for Impex MARCY MWB -558

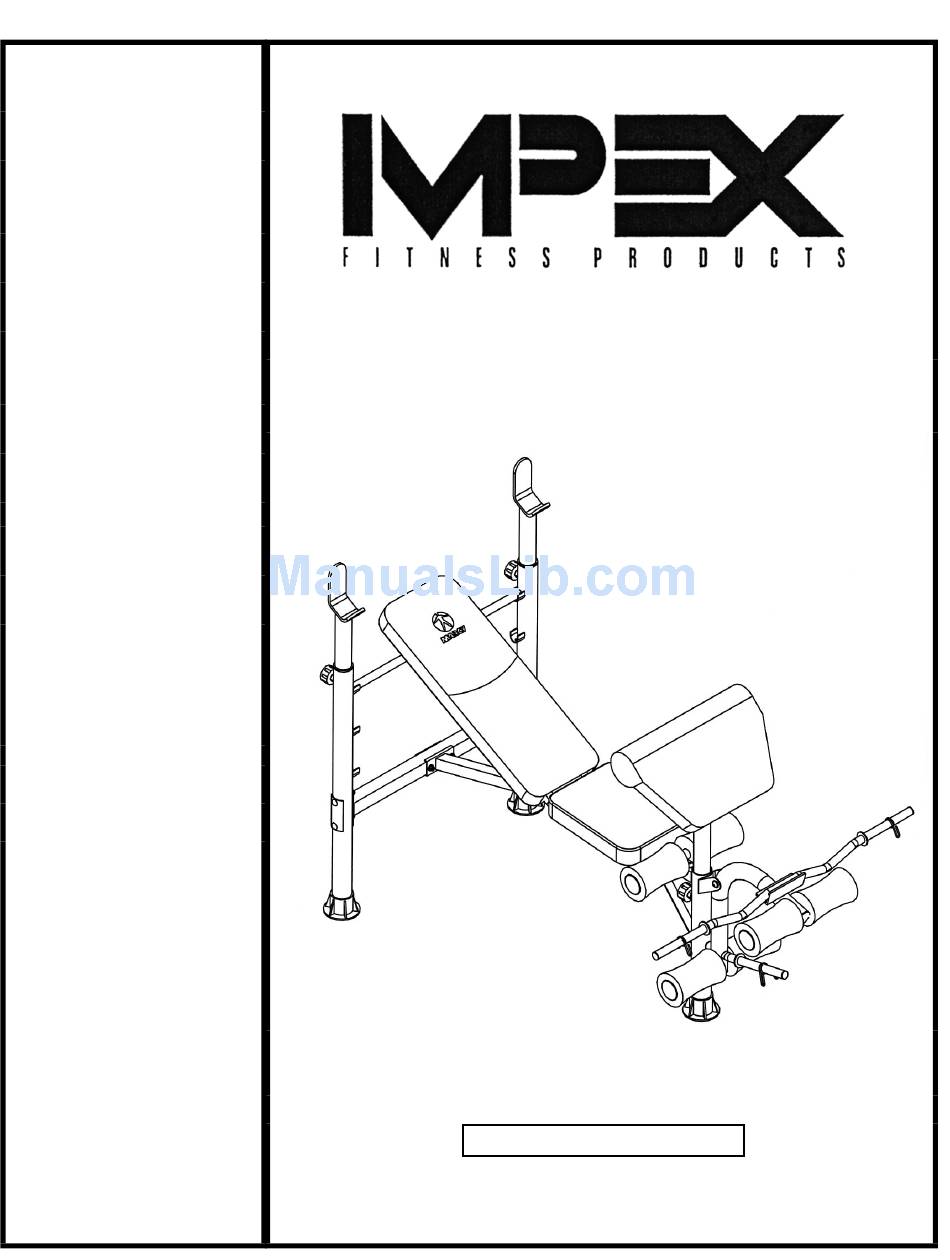

- Page 1 Parts List Warranty Ordering Parts Model MWB 558 Retain This Manual for Reference 09-12-03 OWNER'S MANUAL MARCY WEIGHT BENCH MWB -558 IMPEX FITNESS PRODUCTS 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com info@impex-fitness.com...
-
Page 2: Table Of Contents
WARRANTY...…………. 11 ORDERING PARTS...………… 11 BEFORE YOU BEGIN Thank you for selecting the MARCY MWB 558 BENCH by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. -
Page 3: Important Safety Notice
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS. IMPORTANT SAFETY NOTICE IMPEX INC. -
Page 4: Hardware Pack
HARDWARE PACK... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended two or more people assembling this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Attach two Ø 2 3/8” End Caps (#20) to the bottom of two Upright Beams (#1 & #2). B.) Connect the Left &... - Page 6 STEP 2 (See Diagram 2) A.) Attach a Ø 2 3/8” End Cap (#20) to the bottom of the Leg Developer Holder (#8). B.) Attach the Leg Developer Holder to the front of the Main Seat Support (#6). Secure it with three M8 x 5/8”...
- Page 7 STEP 3 (See Diagram 3) A.) Attach the Leg Developer (#9) to the Leg Developer Holder (#8). Secure it with one M8 x 3 1/8” Allen Bolt (#37), two B.) Insert one Foam Tube (#10) halfway through the hole on the Leg Developer Holder and two Foam Tubes halfway through the two holes on the Leg Developer (#9).
- Page 8 STEP 4 (See Diagram 4) A.) Attach the hole-side of the Backrest Supports (#12) to the pivot on the Main Seat Support (#6). Place the other end of Backrest Supports rest against the Backrest Adjustment Bar (#5). Place the Backrest Board (#15) onto the Backrest Supports. Secure it with four M6 x 1 3/8”...
- Page 9 STEP 5 (See Diagram 5) A.) Attach the Arm Curl Pad (#17) to the Arm Curl Stand (#11). Secure it with two M8 x 5/8” Allen Bolts (#38) and Ø 5/8” Washers (#33). B.) Insert the Arm Curl Stand into the opening on top of the Leg Developer Holder. Use a M10 Lock Knob (#22) to secure the desired height.
-
Page 11: Parts List
PARTS LIST KEY NO. DESCRIPTION Left Upright Beam Right Upright Beam Cross Brace Bar Holder Backrest Adjustment Bar Main Seat Support Diagonal Support Leg Developer Holder Leg Developer Foam Tube Arm Curl Stand Backrest Support Bent Bracket Flat Bracket Backrest Board Seat Arm Curl Pad M16 Lock Knob... -
Page 12: Warranty
IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
