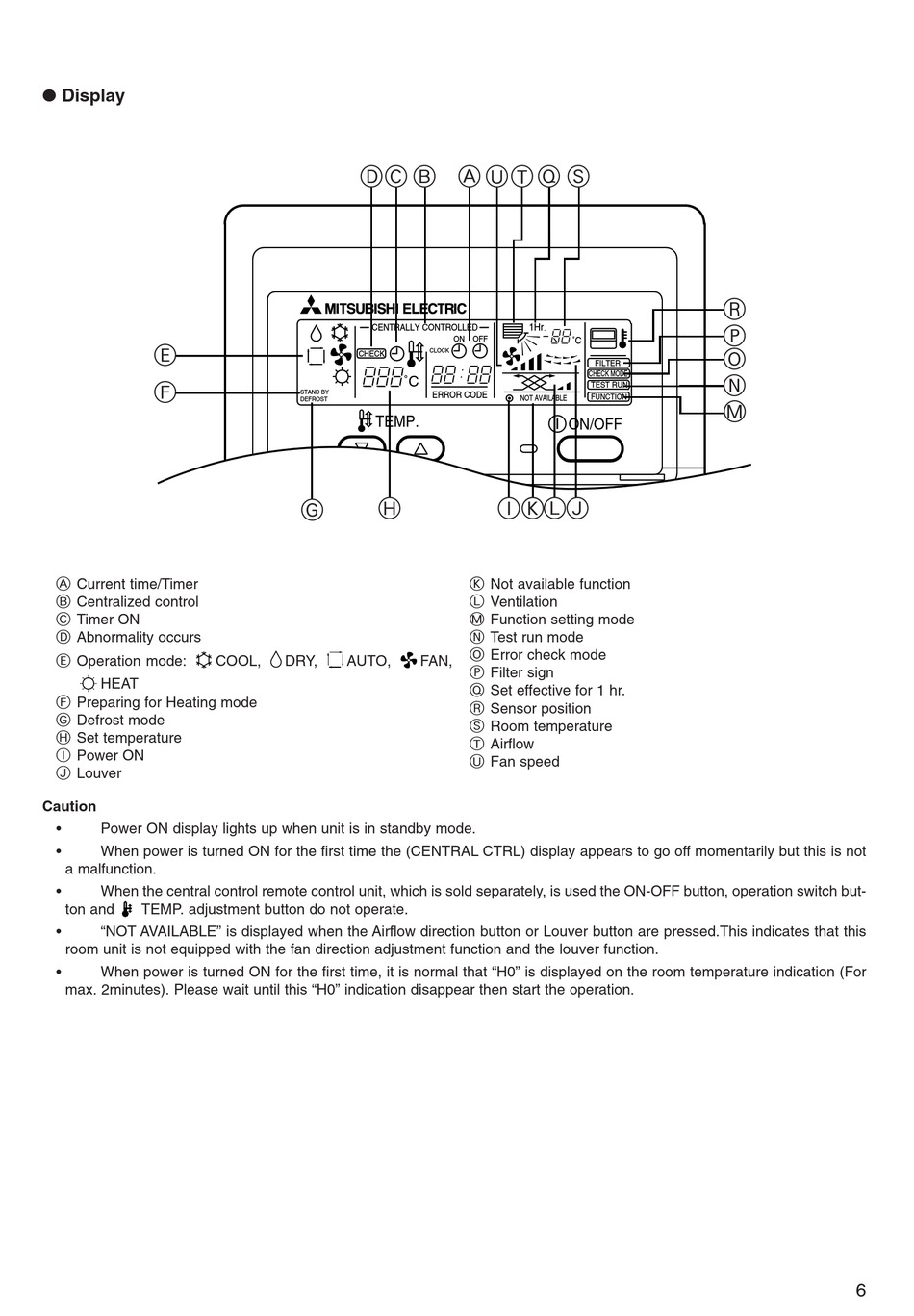

Display
E
F
A Current time/Timer
B Centralized control
C Timer ON
D Abnormality occurs
E Operation mode:
HEAT
F Preparing for Heating mode
G Defrost mode
H Set temperature
I Power ON
J Louver
Caution
• Power ON display lights up when unit is in standby mode.
• When power is turned ON for the first time the (CENTRAL CTRL) display appears to go off momentarily but this is not
a malfunction.
• When the central control remote control unit, which is sold separately, is used the ON-OFF button, operation switch but-
ton and TEMP. adjustment button do not operate.
• "NOT AVAILABLE" is displayed when the Airflow direction button or Louver button are pressed.This indicates that this
room unit is not equipped with the fan direction adjustment function and the louver function.
• When power is turned ON for the first time, it is normal that "H0" is displayed on the room temperature indication (For
max. 2minutes). Please wait until this "H0" indication disappear then start the operation.
