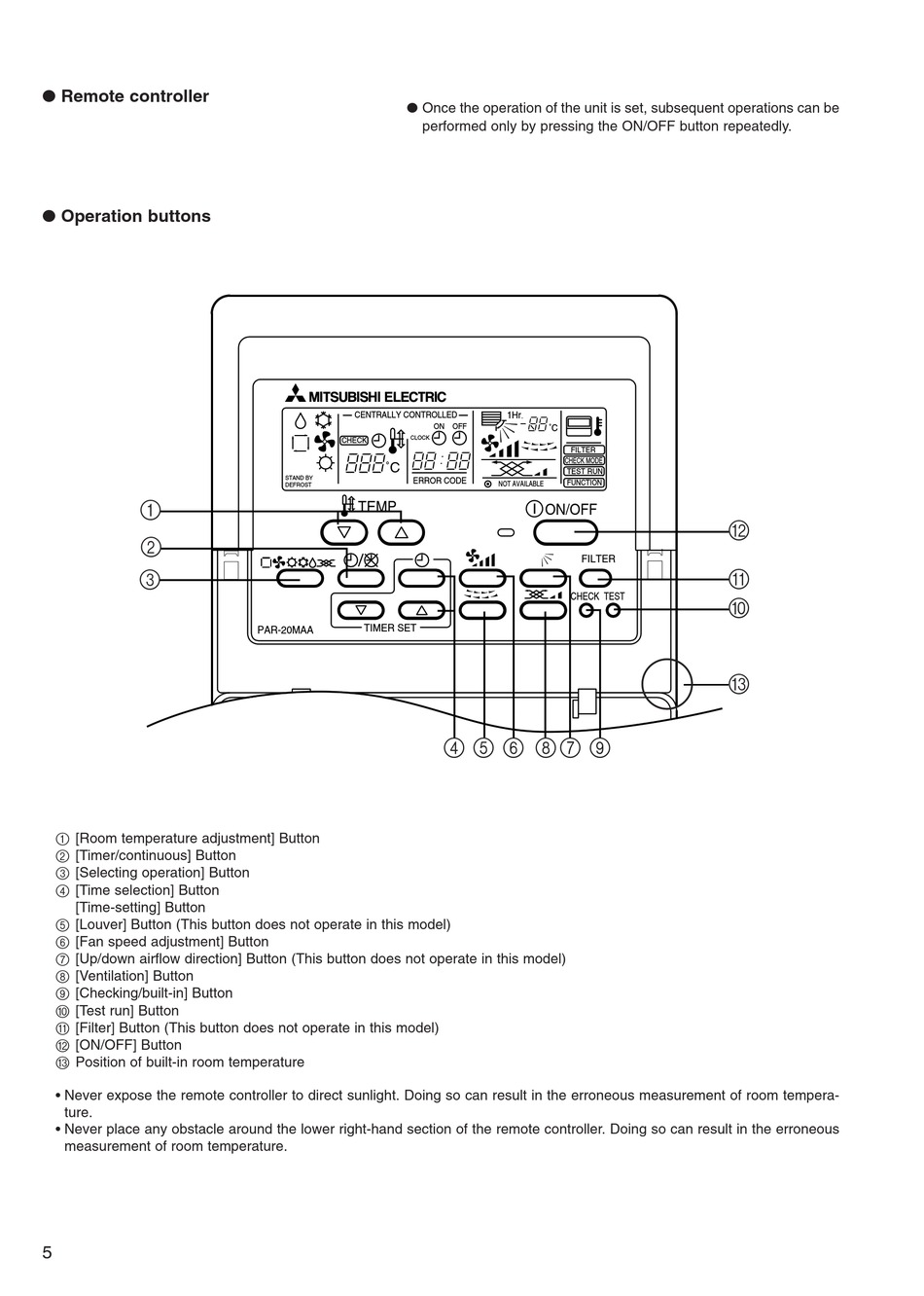

Remote controller
Operation buttons
1
2
3
1 [Room temperature adjustment] Button
2 [Timer/continuous] Button
3 [Selecting operation] Button
4 [Time selection] Button
[Time-setting] Button
5 [Louver] Button (This button does not operate in this model)
6 [Fan speed adjustment] Button
7 [Up/down airflow direction] Button (This button does not operate in this model)
8 [Ventilation] Button
9 [Checking/built-in] Button
0 [Test run] Button
A [Filter] Button (This button does not operate in this model)
B [ON/OFF] Button
C Position of built-in room temperature
• Never expose the remote controller to direct sunlight. Doing so can result in the erroneous measurement of room tempera-
ture.
• Never place any obstacle around the lower right-hand section of the remote controller. Doing so can result in the erroneous
measurement of room temperature.
5
Once the operation of the unit is set, subsequent operations can be
performed only by pressing the ON/OFF button repeatedly.
