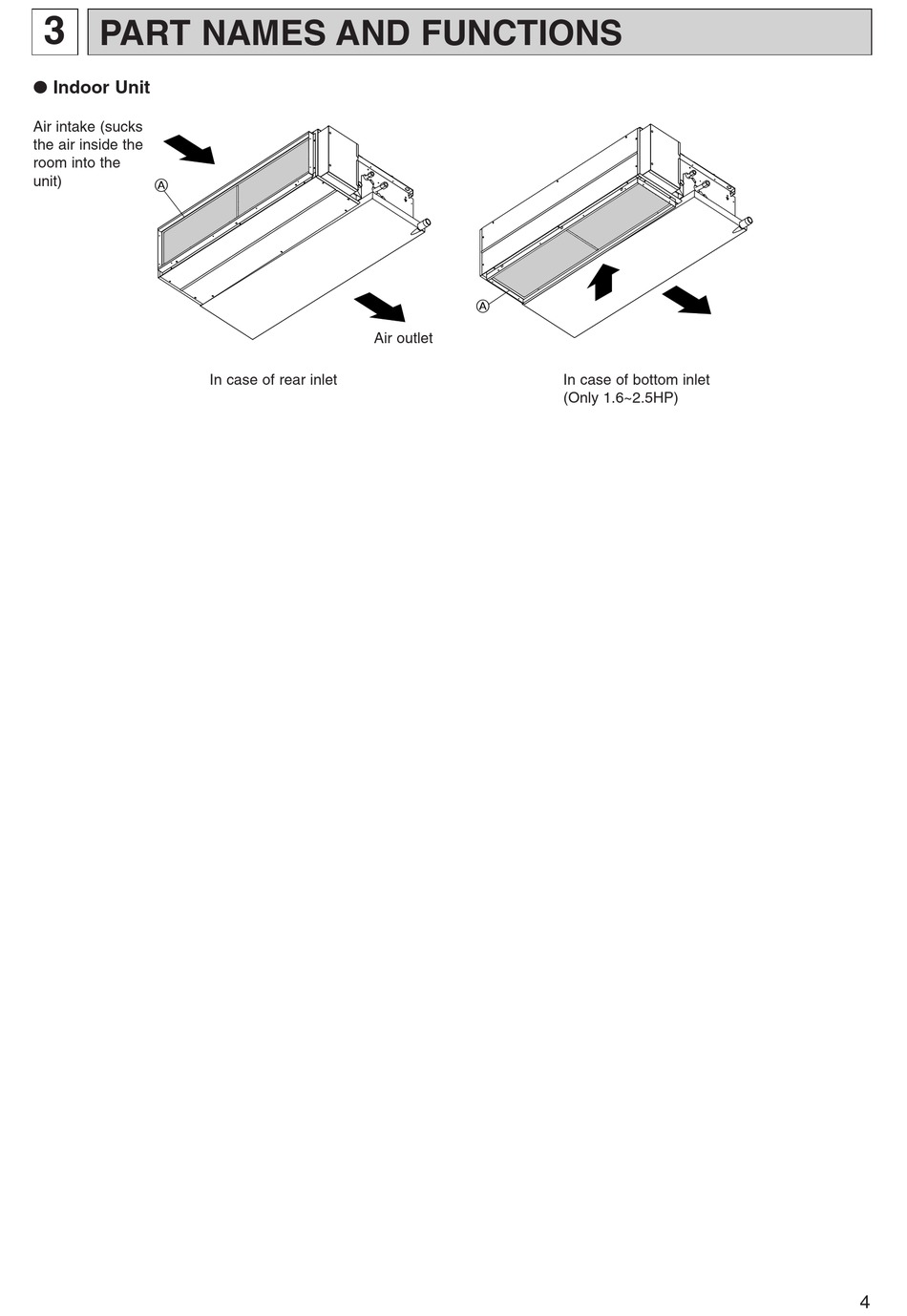

PART NAMES AND FUNCTIONS

Indoor Unit
Air intake (sucks
the air inside the
room into the
unit)
A
Air outlet
In case of rear inlet
A
In case of bottom inlet
(Only 1.6~2.5HP)
4
