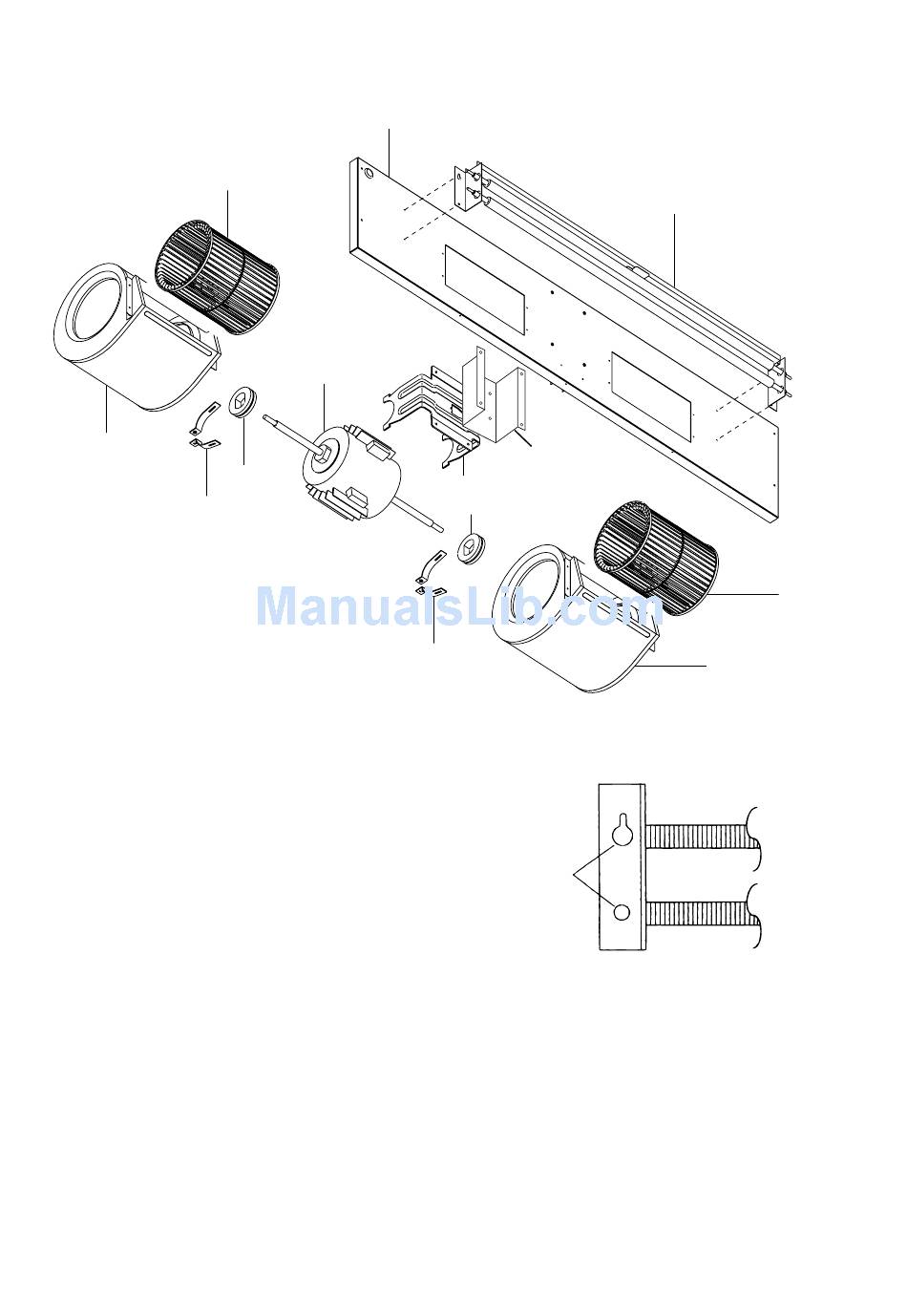

Figure3.
Sirocco fan
Housing
assembly
Piece
2 2 . Removing the booster heater
1. Remove the bottom plate, drain pan, and bottom
plate assembly. (Refer 1-1~3.)
2. Disconnect the booster heater connector from the
controller box.
3. Remove the 2 lower screws on the both sides of
the booster heater.
4. Loosen the 2 upper screws on the both sides of the
booster heater.
5. Removing the booster heater.
41
Fan base
Motor
Bush
Motor base
(Only PEHD-P3,
Leg
PEAD-P3)
Bush
Piece
Figure4.
Screw holes
Booster heater
Sirocco fan
Housing assembly
Booster heater
