Page 1 INTELLIKNIGHT MODEL 5700 Addressable Fire Control Panel Installation and Part Number 151295 Rev E Operations Manual 11/2006...
Page 3: Installation Procedure
Do not tighten screw terminals more than 9 in-lbs. Over-tightening may damage threads, resulting in reduced terminal contact pressure and difficulty with screw terminal removal. Silent Knight fire alarm control panels contain static-sensitive components. Always ground yourself with a proper wrist strap before handling any circuits so that static charges are removed from the body.
Page 4 While installing a fire alarm system may make lower insurance rates possible, it is not a substitute for fire insurance! An automatic fire alarm system - typically made up of smoke detectors, heat detectors, manual pull stations, audible warning devices, and a fire alarm control with remote notification capability - can provide early warning of a developing fire.
Page 5: Table Of Contents
1.1.2 Software Features ..........................1-2 About this Manual ............................ 1-2 1.2.1 Terms Used in this Manual ....................... 1-2 Compatible Products ..........................1-3 How to Contact Silent Knight ........................1-3 Section 2 Agency Listings, Approvals, and Requirements ........2-1 Federal Communications Commission (FCC) ..................2-1 Underwriters Laboratories (UL) ......................
Page 6 ...................... 4-1 Mounting the Control Panel Cabinet ....................... 4-1 4.1.1 Preventing Water Damage ........................ 4-1 4.1.2 Removing the 5700 Assembly from the Housing ................4-1 4.1.3 Dead Front Installation and removal ....................4-1 4.1.3.1 Installing the Dead Front ......................4-2 4.1.3.2 Dead Front Removal ......................
Page 7 6.2.2 Output Circuit Mapping ........................6-6 6.2.3 Zone Event Mapping ........................6-7 6.2.4 Mapping LED Points ........................6-9 Programming Using the 5660 Silent Knight Software Suite ..............6-10 Programming Using an Annunciator ..................... 6-10 6.4.1 Entering / Exiting the Program Menu ..................... 6-11 6.4.2 Moving through the Menus ......................
Page 8 Model 5700 Installation and Operation Manual 7.3.1.4 Cadence Patterns ........................7-10 7.3.2 Add Zone ............................7-11 7.3.3 Delete Zone ............................. 7-11 7.3.4 View Zone Points ..........................7-12 Group ..............................7-13 7.4.1 Edit Group ............................7-13 7.4.1.1 Edit Group Name ......................... 7-13 7.4.1.2 Edit Group Properties ......................
Page 9 Contents Section 8 System Operation ..........................8-1 Annunciator Description .......................... 8-1 8.1.1 LCD Displays ........................... 8-1 8.1.2 Banner ............................... 8-2 Menu System ............................8-2 8.2.1 Main Menu Overview ........................8-3 8.2.2 Using the Menus ..........................8-3 Basic Operation ............................8-3 8.3.1 Setting Time and Date ........................
Page 10 Section 11 Installation Records ........................11-1 11.1 Detector and Module Point Record ......................11-1 Appendix A Compatible Devices ........................A-1 Appendix B Special Characters Lists ......................B-1 Silent Knight Fire Product Warranty and Return Policy Model 5700 Basic Operating Instructions 151295...
Page 11: Introduction
Section 1 Introduction The 5700 Fire Alarm Control / Communicator is an addressable fire control system that meets the requirements of UL 864. Overview of Basic System The 5700 base system is 50 addressable point system with a built-in annunciator which can also be used to program the system.
Page 12: Software Features
About this Manual This manual is intended to be a complete reference for all installation and operation tasks for the 5700. Please let us know if the manual does not meet your needs in any way. We value your feedback! 1.2.1...
Page 13: Compatible Products
Introduction Compatible Products The chart below lists the products available from Silent Knight for use with the 5700. Type of Model Description Device Addressable See Section 5.1 for a list of compatible devices. SLC Devices 5824 Serial/Parallel Printer Allows a printer to be attached for the system for on-site event logging, detector Interface Module status and event history reports.
Page 14 Model 5700 Installation and Operation Manual Limitations of Fire Alarm Systems Manufacturer recommends that smoke and/or heat detectors be located throughout a protected premise following the recommendations of the current edition of the National Fire Protection Association Standard 72 (NFPA 72), manufacturer’s recommendations, State and local codes, and the recommendations contained in Guide for the Proper Use of System Smoke Detectors, which is made available at no charge to all installing dealers.
Page 15 Introduction • Warning devices (including horns, sirens, and bells) may not alert people or wake up sleepers who are located on the other side of closed or partially open doors. A warning device that activates on a different floor or level of a dwelling or structure is less likely to awaken or alert people.
Page 16 Model 5700 Installation and Operation Manual Requirements and recommendations for proper use of fire alarm systems in- cluding smoke detectors and other fire alarm devices: Early fire detection is best achieved by the installation and maintenance of fire detection equipment in all rooms and areas of the house or building in accordance with the requirements and recommendations of the current edition of the National Fire Protection Association Standard 72, National Fire Alarm Code (NFPA 72), the manufacturer’s recommendations,...
Page 17: Agency Listings, Approvals, And Requirements
763-493-6455 800-328-0103 6. If the 5700 causes harm to the telephone network, the telephone company will notify the user in advance that temporary discontinuance of service may be required. If advance notice is not practical, the telephone company will notify the user as soon as possible.
Page 18 (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label. e) If this equipment 5700 causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible.
Page 19: Underwriters Laboratories (Ul)
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this 5700 does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or qualified installer.
Page 20: Requirements For Central Station Fire Alarm Systems
Systems 1. Use both phone lines. Enable phone line monitors for both lines. 2. You must program a phone number and a test time so that the 5700 sends an automatic daily test to the central station. 3. Do not use the ground start option.
Page 21: Before You Begin Installing
• A battery cable for batteries wired in series Environmental Specifications It is important to protect the 5700 control panel from water. To prevent water damage, the following conditions should be AVOIDED when installing the units: • Intended for indoor use in dry locations only •...
Page 22: Electrical Specifications
Model 5700 Installation and Operation Manual Electrical Specifications Table 3-1 list the terminal block on the 5700 as well as a description of the each individual terminal and their respective electrical rating. For location of the terminals refer to Figure 3-2.
Page 23: Wiring Specifications
Before You Begin Installing Wiring Specifications Induced noise (transfer of electrical energy from one wire to another) can interfere with telephone communication or cause false alarms. To avoid induced noise, follow these guidelines: • Isolate input wiring from high current output and power wiring. Do not pull one multi- conductor cable for the entire panel.
Page 24: Board Assembly Diagram
Model 5700 Installation and Operation Manual Board Assembly Diagram On-board Annunciator 120 VAC, 60 Hz, 1.5A AC Power Input Programming Port Form C Relays Terminal Block 2 Battery Connector Terminal Block 1 24 VDC Phone Lines SLC In/Out, NAC/Aux SLC Programming...
Page 25: Calculating Current Draw And Standby Battery
The following steps must be taken when determining 5700 current draw and standby battery requirements. 1. For the 5700, the worst case current draw is listed for the panel, addressable devices, and all SBUS expanders. Fill in the number of addressable devices that will be used in the sys- tem and compute the current draw requirements for alarm and standby.
Page 26: Current Draw Worksheet For Slc Devices
Model 5700 Installation and Operation Manual 3.6.1.1 Current Draw Worksheet for SLC Devices Use Table 3-2 to determine current requirements during alarm/battery standby operation. (Copy the page if additional space is required.) Table 3-2: Current Calculation Worksheet Standby Alarm Device...
Page 27 Before You Begin Installing Table 3-2: Current Calculation Worksheet Standby Alarm Device # of Devices Current per Device Current Current Accessories Modules Standby: 20 mA 5860 Remote Fire Alarm (8 max.) Annunciator Alarm: 65 mA 5824 Serial / Parallel Module (2 max.) Standby/Alarm: 45 mA...
Page 28: Maximum Battery Standby Load
Warning! Silent Knight does not support the use of batteries smaller than those listed in table above. If you use a battery too small for the installation, the system could overload the battery resulting in the installation having less than the required 24 hours standby power.
Page 29: Control Panel Installation
12-3/4" W x 15-1/8" H x 3-3/8" D (32.39 cm W x 38.42 cm H x 8.57 cm D). The 5700 panel should be located within a secured area, where it is accessible to main drop wiring runs and where it can be easily tested and serviced. End-users responsible for maintaining the panel should be able to hear alarms and troubles.
Page 30: Installing The Dead Front
Model 5700 Installation and Operation Manual 4.1.3.1 Installing the Dead Front Follow these steps to properly install the dead front panel into the control panel cabinet. 1. Remove the top two annunciator screws, do not discard them they will be reused. See Figure 4-1 for annunciator screw location.
Page 31: Ac Connection
Control Panel Installation AC Connection At installation, connect the AC terminals to the power source as shown in Figure 4-2. It may be necessary for a professional electrician to make this connection. The AC terminals are rated at 120 VAC, 60 Hz, 1.5A . Supervised To AC Ground...
Page 32: Battery Connection
Model 5700 Installation and Operation Manual Battery Connection The control panel battery charge capacity is 7.0 to 35 AH. The main control cabinet can house batteries up to 7 AH, larger capacity batteries can be housed in a Remote Battery Box (P/N RBB).
Page 33: Rbb Accessory Cabinet
Control Panel Installation 4.3.1 RBB Accessory Cabinet The Model RBB Accessory cabinet can be used when your backup batteries requirements use backup batteries that are too large to fit into the main control panel cabinet. The RBB cabinet holds batteries up to the 35 AH size. The RBB dimensions are 16" W x 10" H x 6" D (40.64 cm W x 25.4 cm H x 15.24 cm D).
Page 34 Model 5700 Installation and Operation Manual 3. Run extended battery cable from control panel cabinet through conduit to RBB cabinet. See Figure 4-6. RBB Cabinet Cover Screws Conduit Coupler Conduit RBB Cabinet Cover Screws Figure 4-6 Battery Connections in the RBB Cabinet Note: Figure 4-6 is an example of how the wire connections can be routed.
Page 35: Sbus Wiring
Control Panel Installation SBUS Wiring This section contains information on calculating SBUS wire distances and the types of wiring configurations (Class B). 4.4.1 Calculating Wiring distance for SBUS modules The following instructions will guide you in determining the type of wire and the maximum wiring distance that can be used with control panel SBUS accessory modules.
Page 36 Model 5700 Installation and Operation Manual These cases are marked in the chart with an asterisk (*). Maximum length can never be more than 6,000 feet, regardless of gauge used. (The formula used to generate this chart is shown in the note below).
Page 37 Control Panel Installation Wiring Distance calculation example: Suppose a system is configured with the following SBUS modules: 2 - Module 5860 Fire Annunciator 1 - 5496 Notification Power Expander 1 - 5865 LED Fire Annunciator 1 - 5824 Parallel/Serial Interface The total worst case current is calculated as follows: 5860 Current Draw = 2 x .100 amps...
Page 38: Wiring Configurations
Model 5700 Installation and Operation Manual 4.4.2 Wiring Configurations Figure 4-8 illustrates Class B configuration. Supervised Power Limited Figure 4-8 SBUS Class B Wiring 4.4.2.1 How to Power SBUS Devices From Auxiliary Power Supply Figure 4-9 illustrates how to power SBUS devices from an Auxiliary Power Supply such as the 5495 or 5499, when the maximum number of SBUS devices exceeds the SBUS power requirments.
Page 39: Remote Annunciator 5860 Installation
The optional Model 5860 Remote Annunciator, shown in Figure 4-10, performs the same functions as the on-board annunciator. Operation is identical. Up to 8 annunciators can be added to the 5700 system. Figure 4-10 Model 5860 Remote Annunciator, Front View 5860 installation involves the following steps: 1.
Page 40: Mounting The 5860
Model 5700 Installation and Operation Manual 4.5.1 Mounting the 5860 This section of the manual describes mounting the remote annunciator. The annunciator can be flush- or surface-mounted. Figure 4-11 shows the parts of the annunciator. Instructions for disassembling and mounting appear on the following pages.
Page 41: Flush Mounting
Control Panel Installation The 5860 comes from the factory fully assembled. You must disassemble it for mounting. To disassemble the annunciator, use a 5/64 hex wrench to remove the set screws, located on the bottom of the annunciator bezel. (See Figure 4-12 for location of the set screws.) Figure 4-12 Annunciator Back Box and Bezel Details 4.5.1.1 Flush Mounting This section of the manual describes flush mounting.
Page 42 Model 5700 Installation and Operation Manual Flush Mounting with an Electrical Box The 5860 annunciator can be used with the following types of electrical boxes: 4S, single- gang, and double-gang. If an electrical box is used, the box must be 1-3/8” back from the face of the wall to accommodate the annunciator.
Page 43: Surface Mounting
Control Panel Installation 4. After the annunciator wiring to the panel has been completed (described in Section 4.5.2), replace the electronic assembly in the back box. Place the bezel over the back box and tighten the set screws on the bezel. Figure 4-14 Flush Mounting the Back Box 4.5.1.2 Surface Mounting The 5860 can be mounted directly to a surface or can be attached to a single, double, or four-...
Page 44: Model 5860 Connection To The Panel
Model 5700 Installation and Operation Manual 4.5.2 Model 5860 Connection to the Panel Connect the 5860 to the panel as shown in Figure 4-15. Supervised Power Limited Figure 4-15 Model 5860 Connection to the Panel 5824 Serial/Parallel Printer Interface Module...
Page 45 Control Panel Installation 5. Connect a printer to the 5824 as shown in Figure 4-17. Supervised Power Limited Figure 4-16 5824 Connection to the Panel To Parallel Printer To Serial Printer Figure 4-17 Printer Connection 151295 4-17...
Page 46: Selecting 5824 Options
Model 5700 Installation and Operation Manual 4.6.1 Selecting 5824 Options Configuring the 5824 includes the following steps: • Add the module to the system. JumpStart will add the module automatically (see Section 6.1). You can also add it manually (see Section 7.2.2).
Page 47: 5880 Led Driver Module
Control Panel Installation 5880 LED Driver Module The 5880 is an LED driver board that can be used in a wide variety of applications, including as an interface with most customized floor plan annunciator boards. The 5880 can drive up to 40 LEDs and has one PZT controller.
Page 48: Facp Connection
Model 5700 Installation and Operation Manual 4.7.2 FACP Connection The 5880 connects to the panel via the SBUS. Make connections as shown in Figure 4-20. After the 5880 is connected to the panel, it must be added to the system. This programming step is described in Section 4.9.
Page 49: Led Wiring
Control Panel Installation 4.7.3 LED Wiring There are four 12-pin connectors on the 5880 board for connecting LEDs. Each LED gets its power from Pin 11. Internal resistors are sized so that there is approximately 10 mA of current for each LED, no series resistors are required. LED outputs can be mapped to output circuits. See Section 6 for programming details.
Page 50: Dry Contact Wiring
Model 5700 Installation and Operation Manual 4.7.4 Dry Contact Wiring The 8 input circuits on the 5880 board are for monitoring switch inputs-any type of switch supported by the control panel can be used with the 5880. For example, you can use a 5880 to monitor pull stations, water flow, tamper, reset, or silence switches.
Page 51: 5865-3 / 5865-4 Led Annunciator Installation
Control Panel Installation 5865-3 / 5865-4 LED Annunciator Installation The 5865-3 and 5865-4 are LED annunciators. The 5865-4 has 30 mappable LEDs, remote silence and reset key switches, and a general system trouble LED. The 5865-3 has 30 mappable LEDs only. These are arranged as 15 pairs of red (typically used for alarm) and yellow (typically used for trouble) LEDs.
Page 52: 5865 Mounting
Model 5700 Installation and Operation Manual 4.8.2 5865 Mounting Mount the 5865-4 to a standard 4-gang electrical box. Mount the 5865-3 to a standard 3-gang electrical box. In Figure 4-25, the 5865-4 attached to a 4-gang box is used as an example.
Page 53: Configuring Modules
Control Panel Installation Configuring Modules This section describes how to configure any system hardware modules that have been added to the system. 4.9.1 Assigning Module IDs When installing a hardware module (such as, 5824, 5860, 5496, 5865-3 or 5865-4), you must use the dipswitches on the module to assign an ID# to the module.
Page 54: Telephone Connection
Model 5700 Installation and Operation Manual 4.10 Telephone Connection Connect the telephone lines as shown in Figure 4-28. The Model 7860 phone cord is available from Silent Knight for this purpose. A number of programmable options are available for customizing telephone lines. These options are described in Section 7.6.
Page 55: Notification Appliance/Auxiliary Power Circuits
Control Panel Installation 4.12 Notification Appliance/Auxiliary Power Circuits Two outputs are built-in to the 5700 FACP which can be programmed to be used as NACs (Class A or Class B) or as Aux power. This section of the manual explains how to install conventional notification appliances and how these terminals can be used for auxiliary power.
Page 56: Class A Notification Wiring
Model 5700 Installation and Operation Manual 4.12.1.2 Class A Notification Wiring You must use an appliance from the list of compatible appliances in the Appendix at the back of this manual. To install a Class A notification appliance circuit: 1. Wire the Class A notification appliances as shown in Figure 4-30.
Page 57: Auxiliary Power Installation
Control Panel Installation 4.12.2 Auxiliary Power Installation NAC Circuits 1and 2 on the control panel can be used as auxiliary power circuits. The three types of auxiliary power available are: • Door Holder (see section 4.12.2.1) • Constant (see section 4.12.2.2) •...
Page 58: Constant Power
Model 5700 Installation and Operation Manual 4.12.2.2 Constant Power Use constant power for applications that require a constant auxiliary power source. Power is always present at Constant circuits. 4.12.2.3 Resettable Power Resettable power is typically used to power beam detectors, flame detectors and conventional 4-wire smoke detectors.
Page 59: Remote Station Applications
Control Panel Installation 4.14 Remote Station Applications 4.14.1 Keltron Model 3158 Installation The control panel is compatible with Keltron Model 3158, used for direct connection to a Keltron receiver. The 3158 reports alarms, supervisories, and troubles. The 3158 is intended for connection to a polarity reversal circuit of a remote station receiving unit having compatible ratings.
Page 60: City Box Connection Using The 5220 Module
Model 5700 Installation and Operation Manual 4.14.2 City Box Connection Using the 5220 Module This section describes how to connect the control panel to a municipal fire alarm box or “city box” as required by NFPA 72 Auxiliary Protected Fire Alarm systems for fire alarm service.
Page 61: Nfpa 72 Polarity Reversal
Control Panel Installation 4.14.3 NFPA 72 Polarity Reversal 4.14.3.1 Using the 5220 Module When the 5220 is wired and programmed for polarity reversal, it reports alarm and trouble events to a remote site. Alarms will override trouble conditions and it will not be possible to reset the remote indicator until the condition is cleared and the control panel is reset.
Page 62 Model 5700 Installation and Operation Manual 5. If necessary, adjust loop current using the potentiometer (R10) on the 5220 board . Normal loop current is 2-to-8 mA with a 1k ohm remote station receiving unit. Maximum loop resistance is 3k ohm.
Page 63: Using The 7644 Module
Control Panel Installation 4.14.3.2 Using the 7644 Module When the 7644 is used for polarity reversal, it allows alarm and trouble events to be reported to a remote site. Alarms will override trouble conditions and it will not be possible to reset the remote indicator until the condition is cleared and the control panel is reset.
Page 64: Using The Sd500-Arm Addressable Relay Module
Model 5700 Installation and Operation Manual 4.14.4 Using the SD500-ARM Addressable Relay Module When the SD500-ARM is wired for polarity reversal, it reports alarm and trouble events to a remote site. Alarms will override trouble conditions and it will not be possible to reset the remote indicator until the condition is cleared and the control panel is reset.
Page 65: Using A Mr-201/T Control Relay From Air Products
Control Panel Installation 4.14.5 Using a MR-201/T Control Relay From Air Products When the MR-201/T control relay is wired for polarity reversal, it reports alarm and trouble events to a remote site. Alarms will override trouble conditions and it will not be possible to reset the remote indicator until the condition is cleared and the control panel is reset.
Page 66: Transmitter Activated By Dry Contacts
Model 5700 Installation and Operation Manual 4.14.6 Transmitter Activated by Dry Contacts This section describes the connection of a UL 864 listed remote station transmitter to the 5700 FACP dry contacts. The FACP contacts must be supervised by the remote station transmitter module using end-of-line resistors (ELRs) with a value determined by the transmitter manufacturer.
Page 67: Slc Device Installation
Section 5 SLC Device Installation Caution! To avoid the risk of electrical shock and damage to the unit, power should be OFF at the control panel while installing or servicing. List of SLC Devices The following SLC devices can be used with the control panel. See the appropriate section number in this manual or the device installation instructions (packaged with the device) for more information.
Page 68: Maximum Number Of Devices
Model 5700 Installation and Operation Manual Maximum Number of Devices The 5700 supports 50 addressable devices. Wiring Requirements for SLC Devices The following information applies to all SLC devices. Refer to the section that describes the type of device you are installing for details.
Page 69 SLC Device Installation Figure 5-1 and Figure 5-2 show how wire length is determined for out-and-back tap and T-tap style wiring. Figure 5-1 Calculating wire run length for a simple out and back tap When using T-taps, the total length of all taps and the main bus must not exceed 40,000 feet. This requirement must be met in addition to the maximum distance requirements for the various wire gauges.
Page 70: Wiring 5815Xl In Style 6 & 7 (Class A) Configuration
Model 5700 Installation and Operation Manual 5.3.2 Wiring 5815XL in Style 6 & 7 (Class A) Configuration Figure 5-3 illustrates how to wire the SLC loop for Style 6 or Style 7 Class A installations. Note: Style 6 does not use short circuit isolator devices.
Page 71: Wiring Detectors
SLC Device Installation Wiring Detectors The information in this section applies to the following models: SD505-AHS Heat Detector, SD505-AIS Ionization Smoke Detector, and SD505-APS Photoelectric Smoke Detector. To wire SD505-APS, SD505-AHS, or SD505-AIS detectors: 1. Wire device bases as shown in Figure 5-4. 2.
Page 72: Addressing Devices
Model 5700 Installation and Operation Manual Addressing Devices This section tells how to address detectors and modules. 5.5.1 SD505-APS, SD505-AHS, & SD505-AIS The SD505-APS photoelectric smoke detector, SD505-AHS heat detector, and SD505-AIS ionization smoke detector are easily addressed at the FACP. The Installer Code is required to perform this task.
Page 73: Slc Devices With Dip Switches
SLC Device Installation 5.5.2 SLC Devices with Dip Switches Input and relay module addresses are set using the dip switches on the module board. The chart below shows the available addresses. For example, to select address 3, place dip switches 1 and 2 in the up position. The range of valid addresses is 1-50. 0 is an invalid address.
Page 74 Model 5700 Installation and Operation Manual 151295...
Page 75: Programming Overview
Section 6 Programming Overview This section of the manual is intended to give you an overview of the programming process. Please read this section of the manual carefully, especially if you are programming the control panel for the first time. The JumpStart feature automates many programming tasks and selects default options for the system.
Page 76: Input Points
Model 5700 Installation and Operation Manual 6.1.1 Input Points JumpStart will determine the number and type of input points (detectors or contact monitor modules) on each SLC loop. JumpStart assigns the correct detector type (heat, or photoelectric), so the installer does not need to edit device type for detectors. Any contact monitor modules on the system will be assigned type "Manual Pull."...
Page 77 Programming Overview 5. When the message "Configuring System Done" displays, press any key to continue. 6. Select one of the following options from the menu that displays. - Review System Press if you need to review the JumpStart configuration. - Repeat JumpStart Press if you need to rerun JumpStart for any reason.
Page 78: Mapping Overview
Model 5700 Installation and Operation Manual Mapping Overview This section of the manual is an overview of mapping. Details about how to select mapping options appear in the appropriate subsections in Section 7. Mapping is an important concept with the control panel. In general terms, mapping is assigning or linking events to outputs that should activate when events occur.
Page 79: Input Point Mapping
Programming Overview 6.2.1 Input Point Mapping Input points are assigned to input zones. Any input point can be assigned to any input zone. (Input points can be assigned to one zone only. An input point can be designated as "Unused," which means it has not been assigned to a zone.) Figure 6-2 Input Point Assignment Example 151295...
Page 80: Output Circuit Mapping
Model 5700 Installation and Operation Manual 6.2.2 Output Circuit Mapping Figure 6-3 is a simple example showing how to assign notification and relay output circuits to groups. For an example of a simple floor above/floor below application, see Figure 6-5.
Page 81: Zone Event Mapping
Programming Overview 6.2.3 Zone Event Mapping There are 8 types of events that can occur in zones (see below). For each event type, you can activate up to 8 output groups and patterns. If it is necessary to map to more than 8 output groups, an output group template may be used (see Section 7.4.5 for information on output group templates).
Page 82 Model 5700 Installation and Operation Manual Figure 6-5 Example of Zone Events Mapped to Output Groups and Patterns 151295...
Page 83: Mapping Led Points
Programming Overview 6.2.4 Mapping LED Points Figure 6-6 is a simple example showing how LED points are mapped to zones and output groups. Typically you would create two output groups for each zone, one for alarms and one for troubles. (LED points are available when Models 5865-3/4 and/or 5880 are used with the system.) Figure 6-6 Example of LED Points Mapped to Output Groups (applies to Models 5865-3/4 and 5880)
Page 84: Programming Using The 5660 Silent Knight Software Suite
Programming Using the 5660 Silent Knight Software Suite You can use the 5660 Silent Knight Software Suite (SKSS) to program the control panel onsite or remotely. SKSS is an optional software package that lets you easily program the control panel using a Windows-based computer and a modem* (not sold by Silent Knight).
Page 85: Entering / Exiting The Program Menu
Programming Overview 6.4.1 Entering / Exiting the Program Menu To enter the Program Mode: 1. Press to display the main menu. 2. Enter the installer code if requested. 3. Select for Program Menu. Display reads: Initializing Please wait . . . The menus described in Section 7 of this manual will display.
Page 86: Selecting Options And Entering Data
Model 5700 Installation and Operation Manual 6.4.3 Selecting Options and Entering Data There are several ways to make programming selections using the control panel depending on which screen you are currently using. The chart below is a generic explanation. Press Select from a menu.
Page 87: Programming Menu Quick Reference
Programming Overview Programming Menu Quick Reference This section of the manual lists all Program Menu options in the order they appear on the sub- menus. Default settings are indicated in text or marked with an asterisk. The comments column provide quick information and a reference to a section (if applicable) which has more detailed information.
Page 88 Model 5700 Installation and Operation Manual Menu Options/Defaults Comments Enter Name1 Enter Number1 Group Name Section 7.4.1.1 Enter Name2 Enter Number2 *SILENCE Silenceable NON-SIL Non-Silenceable Section 7.4.1 Auto Auto Un-silenced Unsilence Section 7.4.1 Silencing SIL-INHIB Silence after inhib Options delay. Section 7.4.1...
Page 89 Programming Overview Menu Options/Defaults Comments MAN_PULL LATCH WATERFLOW NLATCH SUPERVSY LATCH NLATCH FIREDRILL SILENCE RESET PAS_ACK LATCH ZN_AUX1 NLATCH SWITCH LATCH ZN_AUX2 NLATCH SLC Loop Enter Pt Section 7.5 (cont.) LATCH SYS_AUX1 NLATCH LATCH SYS_AUX2 NLATCH DETECT SW LATCH TAMPER NLATCH MAN REL Point...
Page 90 Model 5700 Installation and Operation Manual Menu Options/Defaults Comments For each account (1-4), select: Edit Account # *123456 Account # (6-digit number, identifies account to central station) Section 7.6.1 Edit Format *Contact ID Reporting Format (SIA, S20, Contact ID) Section 7.6.1...
Page 91 Programming Overview Menu Options/Defaults Comments Select Group Section 7.6.3.1 System Trouble None selected Select Cadence Alarm Silence Select Group None selected Select Cadence Select Group Trbl Silence None selected Select Cadence Group Tr SBUS Com SBUS Pwr Trouble Events Select Group SLC Loop System Event AC Loss...
Page 92 Model 5700 Installation and Operation Manual Menu Options/Defaults Comments Section 7.7 JumpStart AutoPrg Computer Account *123456 Section 7.8 Computer Computer Access Account Code See Section 7.8 for programming Computer Phone # Up to 24 digits phone number. Edit Name Edit Access Code...
Page 93: Programming
This section of the manual describes how to manually program the control panel from the built-in annunciator. Each subsection discusses these menu options in detail. All options described in this section can be performed using the Silent Knight Software Suite 5660. Important! Before any customized programming is done, JumpStart should be run first.
Page 94: Modules
Model 5700 Installation and Operation Manual Modules This section lists the options available under the module option in the program menu. The types of modules available for the control panel are, 5860 (Keystation), 5824 (Serial/Parallel input/output), 5880 (LED Input/Output module), 5496 (Intelligent Power Module), and a 5865 (LED Annunciator).
Page 95: Module, Wiring Class
Programming 7.2.1.2 Module, Wiring Class 8. Choose the class of wiring you wish to use for this module by pressing the arrow, then press 7.2.2 Adding a Module You must be in the Main Menu to perform this task. If necessary, enter the Installer Code. If you need to add a new hardware module to the system, follow the steps below.
Page 96: Zone
Model 5700 Installation and Operation Manual Zone Through the zone option in the program menu you can edit, add, delete, and view zone points. Selections made here affect all detectors and switches in the zone. Up to 125 zones can be used in the system.
Page 97: Edit Zone Properties
Programming 8. Select the characters for the zone name by pressing the arrow until the desired character is shown then press Enter the Numerical Designator for the character you want, then press . See Appendix B Table B-1 of this manual for a list of available characters and their numeric designators. 9.
Page 98 Model 5700 Installation and Operation Manual Alarm Delay Characteristics 3. Select the alarm delay characteristics by pressing the arrow. Table 7-1 list the delay choices and a description of each. Table 7-1: Alarm Delay Types Type of Delay Description One Count (No Delay). When this option is enabled, an alarm occurs immediately when a single...
Page 99: Zone Outputs
Programming Heat Temperature Setting Use this feature to set the temperature at which heat detectors will respond. The range is 135° to 150° F. All detectors in the zone will respond in the same way. The Model SD505-AHS Heat Detector is an absolute temperature device. This means that it responds to an alarm immediately if the temperature in the zone goes above the programmed temperature.
Page 100 Model 5700 Installation and Operation Manual To map zone events to outputs, follow these steps: 1. From the Main Menu, select for Program Menu. 2. From the Program Menu, select for Zone. 3. From the next menu, select for Edit Zone.
Page 101 Programming Example or Zone Mapping: Suppose you want to program Zone 1 so that: • Any alarm (detector, water flow or manual pull) would activate Output Group 1 using the ANSI cadence pattern. • Manual pull alarm would activate Output Group 3 using constant output. •...
Page 102: Cadence Patterns
Model 5700 Installation and Operation Manual 7.3.1.4 Cadence Patterns The cadence patterns shown in Figure 7-5 are available for use with the control panel. Cadence patterns can be selected by event type for each zone or for the entire system. Special cadence patterns can be selected for fire drills and any auxiliary system switches used with the system.
Page 103: Add Zone
Programming 7.3.2 Add Zone To add a zone, follow these steps: 1. Press to display the main menu. 2. Enter the installer code if requested. 3. Select for Program Menu. Display reads: Initializing Please wait . . . 4. Press to enter zone menu.
Page 104: View Zone Points
Model 5700 Installation and Operation Manual 7.3.4 View Zone Points To view the points in a zone, follow these steps: 1. Press to display the main menu. 2. Enter the installer code if requested. 3. Select for Program Menu. Display reads: Initializing Please wait .
Page 105: Group
Programming Group An output group is made up of output points that have been programmed to respond in the same way. Output groups simplify programming because you do not have to program each individual point. Once you have defined the characteristics of output groups, you can assign each point to the appropriate group.
Page 106: Edit Group Properties
Model 5700 Installation and Operation Manual 8. Select the characters for the group name by pressing the arrow until the desired character is shown then press Enter the Numerical Designator for the character you want, then press . See Appendix B Table B-1 of this manual for a list of available characters and their numeric designators.
Page 107 Programming Silencing Options The following silencing options are available for each output group. Table 7-2: Silencing Options Option Description SILENCE Silenceable. The output group can be silenced through the key. NON-SIL Not silenceable. The output group cannot be silenced. Activation of the key will be ignored for this output group.
Page 108: Add Group
Model 5700 Installation and Operation Manual 13. Press the arrows to select the desired latching option. 14. Press 15. Press the arrows to select the desired silencing option. Refer to Table 7-2. 16. Press 17. Enable group activation for a condition (see Table 7-3) by pressing the arrows to select Y (yes) or N (no).
Page 109: Delete Group
Programming 7.4.3 Delete Group 1. Press to display the main menu. 2. Enter the installer code if requested. 3. Select for Program Menu. Display reads: Initializing Please wait . . . 4. Press to enter group menu. 5. Press to delete a group. A warning screen will display.
Page 110: Edit Output Group Templates
Model 5700 Installation and Operation Manual 7.4.5 Edit Output Group Templates Some installations may require that zones be mapped to more than 8 output groups. With output group templates you can combine one or all output groups into one template, which can be used when the same combination of outputs are used for several zones.
Page 111: Point
Programming Point You may need to change characteristics of individual input points (detectors and switches) even after using JumpStart. This section explains how to change options for: type of input point; latching/non-latching status (switches); and name and zone assignment of a point. 7.5.1 Point Programming For SLC To program for points, follow these steps:...
Page 112 Model 5700 Installation and Operation Manual 9. Select the type of device by pressing the arrows. Refer to Table 7-4 under column heading "Type Selection" for a list of choices. Table 7-4: Point Programming Type Latching Module Type Function Comments...
Page 113 Programming Table 7-4: Point Programming Type Latching Module Type Function Comments Selection Option System-level switch provides an alternate way to reset RESET the system; same effect as pressing the Reset key. Positive acknowledge switch. This switch must be used in zones programmed as Positive Alarm Sequence (see Table 7-1).
Page 114: Point Programming For Internal
Model 5700 Installation and Operation Manual 7.5.2 Point Programming For Internal or External Power Module (5496) To program for an internal or external power module points, follow these steps: 1. Press to display the main menu. 2. Enter the installer code if requested.
Page 115: Point Programming For 5880 And 5865 Modules
Programming 16. Repeat Steps 1 through 15 for all circuits. Function Choices Type Selections Selections for Comments each Type Enter Point or Circuit UNUSED B NOTIF A NOTIF Select Type CONSTANT Constant auxiliary power. AUX PWR RESETTABLE Resettable auxiliary power. DOOR Door holder auxiliary power.
Page 116: Assigning A Name To A Points
Model 5700 Installation and Operation Manual 10. Press 11. Press the arrows to select the desired Group. 12. Press 13. Edit module name. See Section 7.5.3.1. Press to skip module name edit. 14. Repeat Steps 1 through 13 for all points.
Page 117: System Options
Programming System Options This section of the manual explains how to customize software options that affect general operation of the system. This includes such items as: AC loss hours, system clock options, holidays schedule, telephone and reporting account options. Refer to each individual subsection for complete instructions.
Page 118: Edit Accounts
Model 5700 Installation and Operation Manual 7.6.1.1 Edit Accounts 6. From the next menu, select for Edit Account. A screen similar to one shown in Figure 7-12 will display. The following subsections describe the options on each field. Figure 7-12 Reporting Account Editing Screen Select Account (ID) The control panel provides up to 4 reporting accounts.
Page 119 Programming Events to Report The next six options select which types of events (or event families) will be reported to this account. (See Figure 7-12 for location of these options on the screen.) Events are reported by zone. Event Family Events Included in this Family Alarms All alarms (Water Flow, Manual Pull, Detectors, Auxiliary Switches)
Page 120: Auto Test Time
Model 5700 Installation and Operation Manual The following special characters are available: Table 7-5: Special Dialing Characters Pound (or number) key on the telephone Star key on the telephone Comma (character for 2-second pause) Use the number buttons on the annunciator or the up- and down-arrow keys to select special characters.
Page 121: Dialing Prefix
7.6.2.2 Number of Answer Rings This option is used in conjunction with the Silent Knight Software Suite 5660. Use the option to determine the number of rings before the panel answers a call from the computer. Range is 00-15 rings.
Page 122: Dial Option (Touchtone Or Pulse)
Model 5700 Installation and Operation Manual 7.6.2.3 Dial Option (TouchTone or Pulse) 9. Press the arrow to select the dial option, then press Dial Option Description PULSE If this option is selected, only pulse dialing will be used for this phone line.
Page 123: Answering Machine Bypass
Programming 7.6.2.7 Answering Machine Bypass This option is used in conjunction with the Silent Knight Software Suite 5660. This feature ensures that an answering machine will not interfere with communication between the panel and the computer. If an answering machine is used at the panel site, enable this feature; if an answering machine is not used, disable the feature.
Page 124: Trouble Events
Model 5700 Installation and Operation Manual 7.6.3.1 Trouble Events You can map certain system trouble events to an output group. To access the screen for selecting output groups and cadence patterns for system trouble events. 6. Press for Trouble Events. A screen similar to the one in Figure 7-14 will display.
Page 125: System Alarm Cadence
Programming 7.6.3.2 System Alarm Cadence Fire drill and system auxiliary alarm events can have special cadence patterns to distinguish them from other types of alarms. See Section 7.3.1.4 for available cadence patterns. A typical use of the System Aux1 and Aux2 patterns is to distinguish fire emergencies from other types of emergencies.
Page 126: Miscellaneous Options 1
Model 5700 Installation and Operation Manual 7.6.4 Miscellaneous Options 1 Through this programming option you can set the water flow delay time, low AC report delay, enable or disable automatic daylight savings time adjustment, clock format, and AC clock frequency.
Page 127: Low Ac Report Delay
Programming 7.6.4.2 Low AC Report Delay Note: You must select 1-3 hours in UL central station installations and UL remote signaling installations. You can adjust the number of hours before a Low AC report will be sent to the central station. To program low AC report delay, follow these steps: Note: Steps continued from step 6 of Section 7.6.4.1.
Page 128: Miscellaneous Options 2
Model 5700 Installation and Operation Manual 7.6.5 Miscellaneous Options 2 Through this programming option you can turn the strobe synchronization during silence feature On or Off, and select the control panel to report events by zone or by point. To edit miscellaneous options 2: 1.
Page 129: Miscellaneous Options 3
Programming 7.6.6 Miscellaneous Options 3 From Miscellaneous Options 3, you set the alarm verification time and set the start and end week and month of Daylight Saving Time. Note: For UL installations the alarm verification time can not be less than 60 seconds. 1.
Page 130: Edit Banner Message
Model 5700 Installation and Operation Manual 7.6.7 Edit Banner Message The banner is the message that displays on the panel LCD when the system is normal, that is, when no alarms or troubles exist and no one is currently using system menus. You can create a customized message, which can be up to 40 characters, two lines of 20 characters each.
Page 131: Jumpstart Autoprogramming
Programming JumpStart Autoprogramming IMPORTANT! JumpStart is intended to be used prior to performing any custom programming. Each time JumpStart is executed, all options will be reset to their default values. Do not run JumpStart after you have configured the system through programming. To run JumpStart: 1.
Page 132: Computer Account
Model 5700 Installation and Operation Manual Computer Account An installer at the panel site can initiate communications between the panel and a computer running the SK Fire System Editor (see also Section 8.3.15). In order for this communication to function properly both the computer (running the software) and the control panel must have matching computer account numbers and computer access codes.
Page 133: Access Codes
Programming Access Codes Access codes provide the user access to the control panel functions. Each access code can be customized for each user. This allows some users the ability to access programming and other higher level panel functions, while other users may only need access to lower level functions such as preforming fire drills, or acknowledging trouble conditions.
Page 134: Profile Edit Menu
Model 5700 Installation and Operation Manual To change an access code: 1. Press to display the main menu. 2. Enter the installer code if requested. 3. Select for Program Menu. Display reads: Initializing Please wait . . . 4. Select for System Options.
Page 135: System Operation
Section 8 System Operation Operation of the control panel is simple. Menus guide you step-by-step through operations. This section of the manual is an overview of the operation menus. Please read this entire section carefully before operating the panel. Press to view Main Menu: Select the desired menu option.
Page 136: Banner
Model 5700 Installation and Operation Manual 8.1.2 Banner The banner is the message that displays on the control panel when the system is in normal mode (no alarm or trouble condition exists and menus are not in use). You can create a customized message that will display instead of the internal (default) message.
Page 137: Main Menu Overview
System Info number and date. Initiate communication from the panel site between the panel and a Up/Download computer running the Silent Knight Software Suite. 8.2.2 Using the Menus To move through the menus: to move through the options in a menu. Use to move to a previous menu.
Page 138: Disable / Enable A Point
Model 5700 Installation and Operation Manual 8.3.2 Disable / Enable a Point 1. From the Main Menu, select for Point Functions. 2. Select for Disable/Enable Point. A list of modules displays. 3. Use to move through the list. Press to select the module where the point you want to disable/enable is located.
Page 139: Conduct An Indicator Test
System Operation 8.3.5 Conduct an Indicator Test The indicator test checks the annunciator LEDs, PZT, and LCD display. 1. From the Main Menu, press for System Tests. 2. Press for Indicator Test. The system turns on each LED several times, beeping the PZT as it does so.
Page 140: Conduct A Dialer Test
Model 5700 Installation and Operation Manual 8.3.7 Conduct a Dialer Test 1. From the Main Menu, press for System Tests. 2. Select for Dialer Test. The screen will display “Manual dialer test started”. When the test is completed, you will be returned to the <Test Menu>.
Page 141: View Status Of A Point
System Operation 5. A screen similar to those shown in Figure 8-3 will display. Figure 8-3 Checking Detector Sensitivity Compliance If a printer is attached to the system (via a Module 5824 Serial/Parallel Interface), you can print detector status (see Section 8.3.16). 8.3.11 View Status of a Point 1.
Page 142: Communicating With A Remote Computer
An installer at the panel site can initiate communications between the panel and a computer running the Silent Knight Software Suite. You can use this feature to upload a panel configuration. For example, if you have made programming changes to an installation on site using an annunciator, you can send your changes to the computer, so that the central station will have the latest data about the installation.
Page 143: Working With A Printer
System Operation 8.3.16 Working with a Printer If you are using the Model 5824 Serial/Parallel Interface, several printing options are available. See Section 4.6 for information about installing the 5824. 1. From the Main Menu, select Printer Options. 2. From the next screen, select the 5824 module where the printer is connected. 3.
Page 144: Operation Mode Behavior
Model 5700 Installation and Operation Manual Operation Mode Behavior The control panel can be in one of seven conditions at any given moment: Normal, Alarm, Prealarm, Supervisory, Trouble, Silenced, and Reset. Table 8-2 describes the behavior of the panel in each of these modes.
Page 145 System Operation Table 8-2: Operation Modes of FACP Operation Occurs When System Behavior In This Mode You Can Mode Trouble A system trouble The dialer seizes control of the phone line Press (down arrow) to view the trouble. A screen condition and calls the central station.
Page 146: Releasing Operations
Model 5700 Installation and Operation Manual Releasing Operations This control panel supports two types of releasing, Double Interlock Zone, and Single Interlock Zone. The Double Interlock Zone operation requires an interlock switch input in the system, and the Single Interlock does not. An interlock switch is typically a dry-contact pressure switch.
Page 147: Single Interlock Zone Releasing
System Operation 8.5.1 Single Interlock Zone Releasing A single interlock zone utilizes a minimum of two addressable detectors, and a designated manual release switch. Important! Only addressable detectors can be used. No conventional detectors can be used. Each Single Interlock Zone input requires at least one manual release switch. Conditions Required for an Pre-Alert Output Activation If any single addressable detector is activated, the "Pre-Alert"...
Page 148: Double Interlock Zone Releasing
Model 5700 Installation and Operation Manual 8.5.2 Double Interlock Zone Releasing A Double Interlock Zone uses a minimum of two Addressable detectors, a designated manual release switch, and an interlock switch input. An interlock switch is typically a dry-contact pressure switch and will be referred to as an interlock/pressure switch in this document.
Page 149: Smoke Alarm Verification
System Operation Smoke Alarm Verification Figure 8-5 illustrates how the Smoke Alarm Verification cycle operates. Figure 8-5 Smoke Verification Cycle During the Confirmation Period if there is no alarm indication then the system will return to normal operation. 151295 8-15...
Page 150 Model 5700 Installation and Operation Manual 8-16 151295...
Page 151: Reporting
Table 9-1 shows receivers compatible with the control panel. Table 9-1: Receivers Compatible with the Control Panel Manufacturer Model Format Model 9800 SIA and Contact ID Silent Knight Model 9000 (SIA formats) Ademco Model 685 (Contact ID ) Contact ID Sur-Gard SG-MLR2-DG (V. 1.64 or higher)
Page 152 Model 5700 Installation and Operation Manual SIA Reporting Format Contact ID Reporting Format Event Class Module Event Parameter Event Group Contact Event Description (System, Zone, ID # Event Qualifier Family (if any) Code or Point) (if any) Code Local programming aborted or ended with errors...
Page 153 Reporting SIA Reporting Format Contact ID Reporting Format Event Class Module Event Parameter Event Group Contact Event Description (System, Zone, ID # Event Qualifier Family (if any) Code or Point) (if any) Code Supervisory condition restore Trouble Zone Event Zone Zone Supervisory condition Trouble...
Page 154 Model 5700 Installation and Operation Manual SIA Reporting Format Contact ID Reporting Format Event Class Module Event Parameter Event Group Contact Event Description (System, Zone, ID # Event Qualifier Family (if any) Code or Point) (if any) Code Water flow switch alarm...
Page 155: Testing And Troubleshooting
If these suggestions do not solve your problem or if you encounter a problem that is not listed here, contact Silent Knight Technical Support at 800-328-0103 for assistance. 10.2 Common Problems...
Page 156: Event History
Model 5700 Installation and Operation Manual Problem Possible Cause / Suggested Actions The panel indicates a ground fault trouble An earth ground fault occurs when the panel senses an unexpected flow of condition (trouble message "GROUND current from one or more of its terminals to the earth connection (Terminal 2).
Page 157: Built-In Troubleshooting And Testing Tools
Testing and Troubleshooting 10.3 Built-in Troubleshooting and Testing Tools The fire control panel has several built-in testing and troubleshooting tools that can be utilized to save time while testing and troubleshooting points and SLC devices. 10.3.1 SLC Device Locator SLC device locator can be used to locate a device on a SLC loop. Follow these steps to locate a particular SLC device: 1.
Page 158: Slc Multi Locator
Model 5700 Installation and Operation Manual 10.3.2 SLC Multi Locator This feature is the same as SLC Device Locator, except you can locate up to 8 devices on a single search. Follow these instructions to locate multiple SLC devices: 1. Select (Point Functions) from the Main Menu.
Page 159: I/O Point Control
Testing and Troubleshooting 10.3.3 I/O Point Control This feature allows you to toggle any output on or off and trip any input device. This can be useful to test a point’s output mapping. Follow these steps to control a I/O point: 1.
Page 160 Model 5700 Installation and Operation Manual 10-6 151295...
Page 161 Section 11 Installation Records This section of the manual is for you to use if you wish to track of how points, zones, and groups have been programmed. 11.1 Detector and Module Point Record You can use Table 11-1 to keep track of module and sensor points. Default addresses for ID: On-board: = 33 Table 11-1: Detector/Module Installation Record...
Page 162 Model 5700 Installation and Operation Manual 11-2 151295...
Page 163: Appendix A Compatible Devices
Appendix A Compatible Devices Notification Appliances For proper operation, you must use polarized devices with a Model 7628 4.7k ohm EOL resistor on each loop. All supervised notification appliances used with the control panel must be polarized. Note: Not all devices can use the Sync feature, be sure to check Table A-1 to ensure the device you have chosen will work with this feature.
Page 164 Model 5700 Installation and Operation Manual Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type 2824 Horn Strobe 5333 Multi-Tone Horn) 5336 Multi-Tone Horn/Strobe 5337 Multi-Tone Horn/Strobe 5338 Multi-Tone Horn/Strobe 5343 Single Tone Horn/Strobe 5346 Electronic Horn with Strobe...
Page 165: Compatible Devices
Compatible Devices Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type 6301 Mini-Horn 6302 Mini-Horn 6310 Mini-Horn/Strobe 6311 Mini-Horn/Strobe 6312 Mini-Horn/Strobe Faraday (cont.) 6314 Series -M, -R, -T, -Y, -Z Strobe 6320 Sync Mini Horn/Strobe 6321 Sync Mini Horn/Strobe 6322 Mini Horn/Sync Strobe 6380...
Page 166 Model 5700 Installation and Operation Manual Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type S2430W-FC Strobe S2430K-FC Strobe S2475-FC Strobe S2475W-FC Strobe (cont.) S2475K-FC Strobe S24110-FC Strobe S24110W-FC Strobe S24110K-FC Strobe Horn Federal Signal VALS Horn/Strobe GX90-4 Horn...
Page 167 Compatible Devices Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type GES-24-30 Strobes GES-24-60 Strobes GES-24-75 Strobes GES-24-110 Strobes GES-24-15/75 Strobes GES-24-177 Strobes GES3-24 Multi Candella Strobe GESR-24 Multi Candella Strobe GEH-24 Horn GMH-24-X Horn Gentex GMS-24-X Horn/Strobe (cont.) G0T24 Horn G0S24-X...
Page 168 Model 5700 Installation and Operation Manual Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type P1224MC Horn/Strobe P1224MCK Horn/Strobe P1224MCP Horn/Strobe P1215 Horn/Strobe P121575 Horn/Strobe P121575K Horn/Strobe P121575W Horn/Strobe P1215W Horn/Strobe 2-Wire Horn/Strobe P2RH 2-Wire Horn/Strobe High Candela P24110...
Page 169 Compatible Devices Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type PC2430W Horn/Strobe PC2475 Horn/Strobe PC2475W Horn/Strobe PC2495 Horn/Strobe PC2495W Horn/Strobe P2415 Horn/Strobe PS1224MCW Horn/Strobe PS1224MCSP Horn/Strobe PS1224MCPW Horn/Strobe PS2415ADA Mini-Horn/Strobe PS241575ADA Mini-Horn/Strobe PS24110ADA Mini-Horn/Strobe PS2475ADA Mini-Horn/Strobe S1215 Strobe S1215W Strobe S121575...
Page 170 Model 5700 Installation and Operation Manual Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type SC241575 Strobe SC241575W Strobe SC241575P Strobe SC241575PW Strobe SC24177 Strobe SC24177W Strobe SC2430 Strobe SC2430W Strobe SC2475 Strobe System Sensor SC2475W Strobe (cont.) SC2495...
Page 171 Compatible Devices Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type AMT-24MCW Horn/Strobe AH-24WP-R Horn AMT-12\24-R Strobe Horn AMT-24-LS-VFR Strobe Horn AMT-24-LSM-VFR Strobe Horn AS-241575W Horn/Strobe AS-24MCC Horn/Strobe AS-24MCCH Horn/Strobe AS-24MCW Horn/Strobe AS-24MCWH Horn/Strobe ASWP-2475W Horn/Strobe AMT-24-IS-VFR Strobe Horn AS-24MCW-FR Strobe Horn AS-24MCW-FW...
Page 172 Model 5700 Installation and Operation Manual Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type NS-241575W Horn/Strobe NS-24MCW Horn/Strobe RSS-121575W Strobe RSS-241575W Strobe RSS-24MCC Strobe RSS-24MCCR Strobe RSS-24MCCH Strobe RSS-24MCCHR Strobe RSS-24MCW Strobe RSS-24MCWH Strobe RSSP-121575W Strobe RSSP-241575W Strobe...
Page 173 Compatible Devices Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type EH-DL1-R Electronic Horn EH-EL1-R Electronic Horn Electronic Horn EHS-DL1-W-VF-R Strobe Horn (single input) EHS-EL1-W-VF-R Strobe Horn (single input) EH-DL1-WS-24-VF-R Strobe Horn (dual input) EH-EL1-WS-24-VF-R Strobe Horn (dual input) EH-DL1-WH-24-VF-R Strobe Horn (dual input) EH-EL1-WH-24-VF-R...
Page 174 Model 5700 Installation and Operation Manual Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type MIZ-24-WH-VF-W Mini-Horn/Strobe MIZ-24-WM-VF-W Mini-Horn/Strobe MT-12/24-R Strobe Horn MT-24-LS-VFR Strobe Horn MT-24-LSM-VFR Strobe Horn MT-24-MS-VFR Strobe Horn MT-24-IS-VFR Strobe Horn MT-24-SL-VFR Strobe Horn MT-24-SLM-VFR Synch. Multitone Strobe...
Page 175 Compatible Devices Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type SHPW-24-VFR Synchronized Remote Strobe SR-2415-VFR Sync Strobe SRP-2415-HFR Sync Strobe SR-241575-VFR Sync Strobe SRP-241575-VFR Sync Strobe SR-2475-VFR Sync Strobe SR-2475-HFR Sync Strobe Wheelock SR-24110-HFR Sync Strobe (cont.) SRP-24110-HFR Sync Strobe V7001T-12\24-W-FR Strobe Horn...
Page 176 Model 5700 Installation and Operation Manual A.3 Two-Wire Smoke Detectors Table A-2 lists two-wire smoke detectors that are compatible with the fire control panel. The table is organized by manufacturer. The columns show the number of detectors per loop that can be used.
Page 177 Compatible Devices Table A-2: Compatible Two-Wire Smoke Detectors Model Name or Number Compatibility ID Manufacturer (Base model name or number in # per Loop Head Base parentheses.) FDT1 17 / loop Falcon 525T FDT1 17 / loop SIH-24F (HS-224D OR HSD-224) HD-3 HB-5 25 / loop...
Page 178 Model 5700 Installation and Operation Manual A-16 151295...
Page 179: Appendix B Special Characters Lists
Appendix B Special Characters Lists This section contains tables of programmable characters that may be used for device, module, and zone names or phone numbers. Characters used for Naming Table B-1 list the available character and their associated numeric designator. When programming these numbers can be entered as a short cut to using the up or down arrow keys, to select characters when naming a point or zone.
Page 180 Model 5700 Installation and Operation Manual 151295...
Page 181 Repair and RA Procedure • All products that are returned to Silent Knight for credit or repair require a RA (Return Authorization) number. Call Silent Knight Customer Service at 800-446-6444 or 763-493- 6435 between 8:00 A.M. and 4:45 P.M. CST, Monday through Friday to obtain a return authorization number.
Page 182 Products are date stamped at time of manufacture. The sole and exclusive obligation of Silent Knight is to repair or replace, at its option, free of charge for parts and labor, any part that is defective in materials or workmanship under normal use and service. All returns for credit are subject to inspection and testing at the factory before actual determination is made to allow credit.
Page 183 Model 5700 Basic Operating Instructions These Instructions must be framed and displayed next to the 5700 panel in accordance with NFPA 72 fire code for Local Protected Fire Alarm Systems. Test the system in accordance to NFPA 72. Refer to Installation Manual P/N 151295.
Page 186 7550 Meridian Circle Maple Grove, MN 55369-4927 763-493-6455 1-800-328-0103 Fax: 763-493-6475 © 2006 Silent Knight...

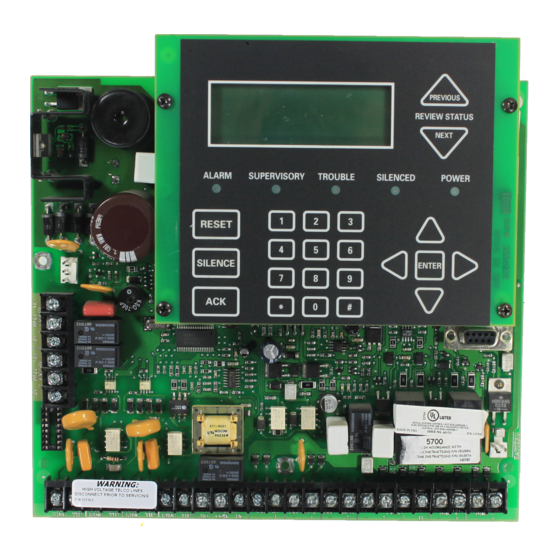

SILENT KNIGHT IntelliKnight 5700 Installation And Operation Manual

Section 1

Introduction

Section 2

Agency Listings, Approvals, and Requirements

Section 3

Before You Begin Installing

Section 4

Control Panel Installation

Section 5

SLC Device Installation

Section 6

Programming Overview

Section 7

Programming

Section 8

System Operation

Section 9

Reporting

Section 10

Testing and Troubleshooting

Appendix A Compatible Devices

Appendix B Special Characters Lists

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SILENT KNIGHT IntelliKnight 5700

Summary of Contents for SILENT KNIGHT IntelliKnight 5700
