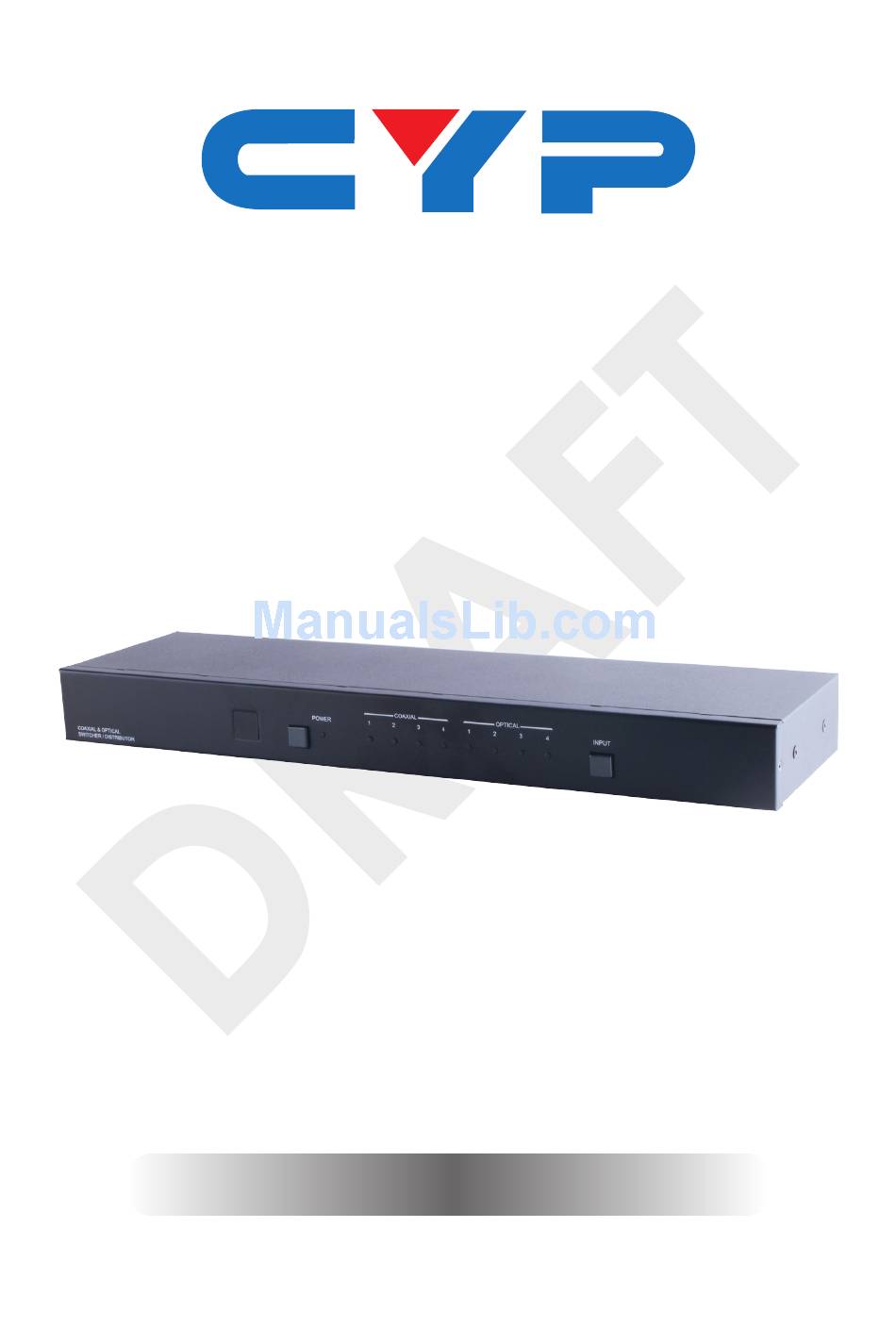

- Page 1 DCT-31 Coaxial & Optical Switcher/Distributor Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........2 6.3 RS-232 Protocols .......3 6.4 RS-232 &... -
Page 6: Introduction
1. INTRODUCTION The Coaxial and Optical Switcher/Distributor allows 4 coaxial and 4 optical audio input selections to be select and distribute to 10 coaxial and 10 optical outputs. Supporting sampling rate up to 192kHz and audio signal up to 5.1CH, this simple and easy tool can assist you with maximum audio expansion and distribution. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel COAXIAL OPTICAL POWER POWER INPUT COAXIAL & OPTICAL SWITCHER / DISTRIBUTOR IR Window: Receive IR signal from the included Remote Control. POWER Button: Press this button to turn ON or set the device to standby mode. -
Page 8: Rs-232 Protocols
6.3 RS-232 Protocols DCT-31 Remote Control Assignment Assignment ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 6.4 RS-232 & Telnet Commands Command Status POWER OFF/ON Set Power Status INPUT COAX 1~4... -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Amplifier with Active Speakers Active Speakers DVD / PS3 / Blu-ray Player COAXIAL IN COAXIAL OUT RS-232 IR IN DC 5V OPTICAL IN OPTICAL OUT DVD or Blu-ray Player Amplifier with Active Speakers Active Speakers PC / Loptop... -
Page 10: Specifications
8. SPECIFICATIONS Input port 4 x Coaxial 4 x Optical 1 x IR Output port 10 x Coaxial 10 x Optical Sampling Rate 32~192kHz IR Frequency 30~50kHz Output Level THD+N Crosstalk ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/ UL certified) -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-DCT31...
