Bar Code Capture with Integrated Camera

To capture bar code data:
Note: When capturing bar code data in poor lighting, turn on Illumination mode in the DataWedge
application. See the TC55 Integrator Guide for detailed information on configuring DataWedge.
Procedure:
1 Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2 Aim the camera at a bar code.
3 Press and hold the Programmable button. By default, a preview window appears on the screen. The Decode light
emitting diode (LED) lights red to indicate that data capture is in process.

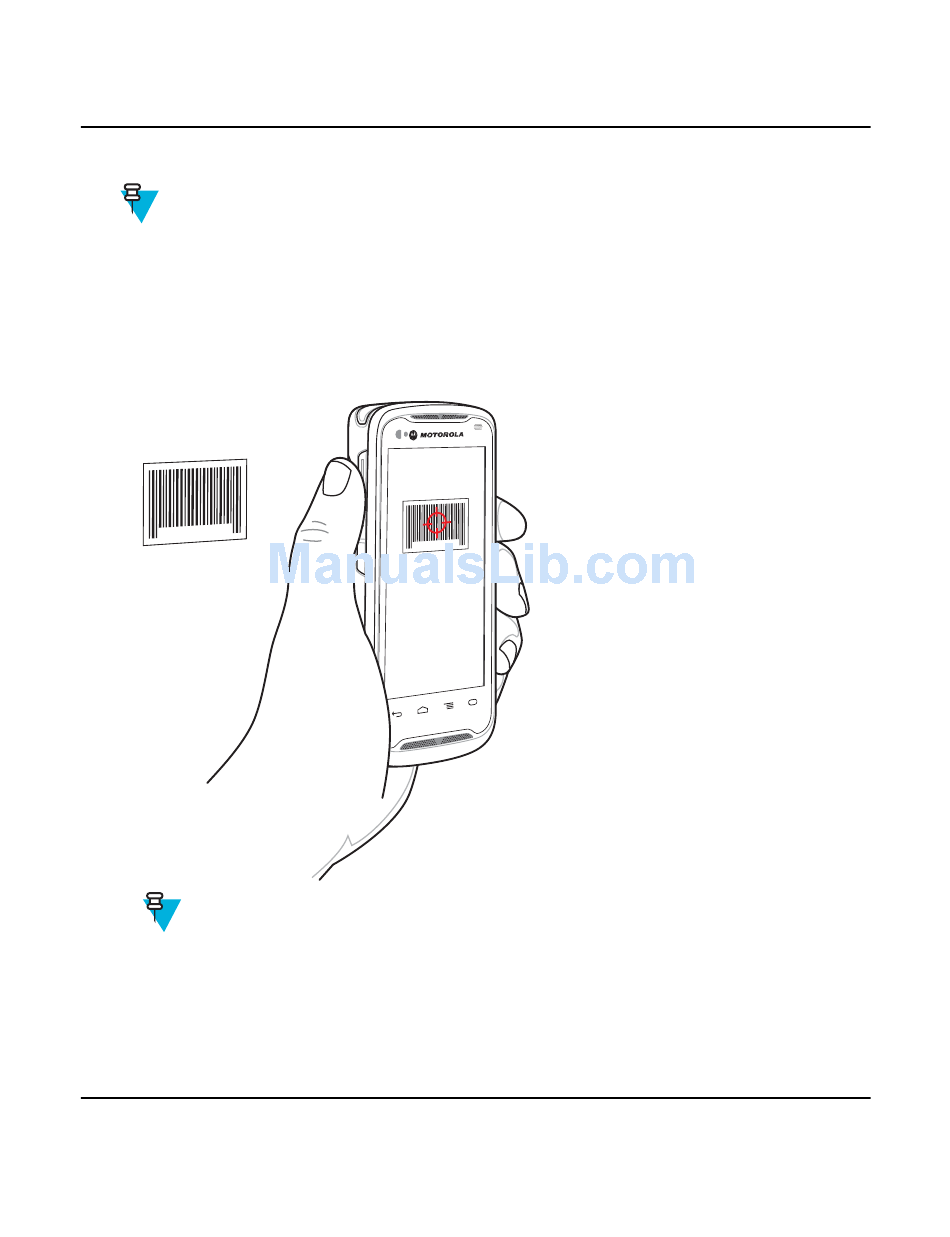

Figure 84: Application with Preview Window

4 Note: When Picklist mode is enabled, move the TC55 until the bar code is centered under the red target
on the screen.
Move the TC55 until the bar code is visible on the screen.
5 The Decode LED lights green, a beep sounds and the device vibrates, by default, to indicate the bar code was
decoded successfully.
6 The captured data appears in the text field.

Bar Code Capture with CS3070 Bluetooth Scanner

Prerequisites: Pair the CS3070 with the device. See
September 2013 | MN000015A01
Pairing with the CS3070 on page 122 for more information.
