GAS O LINE
ON / OFF

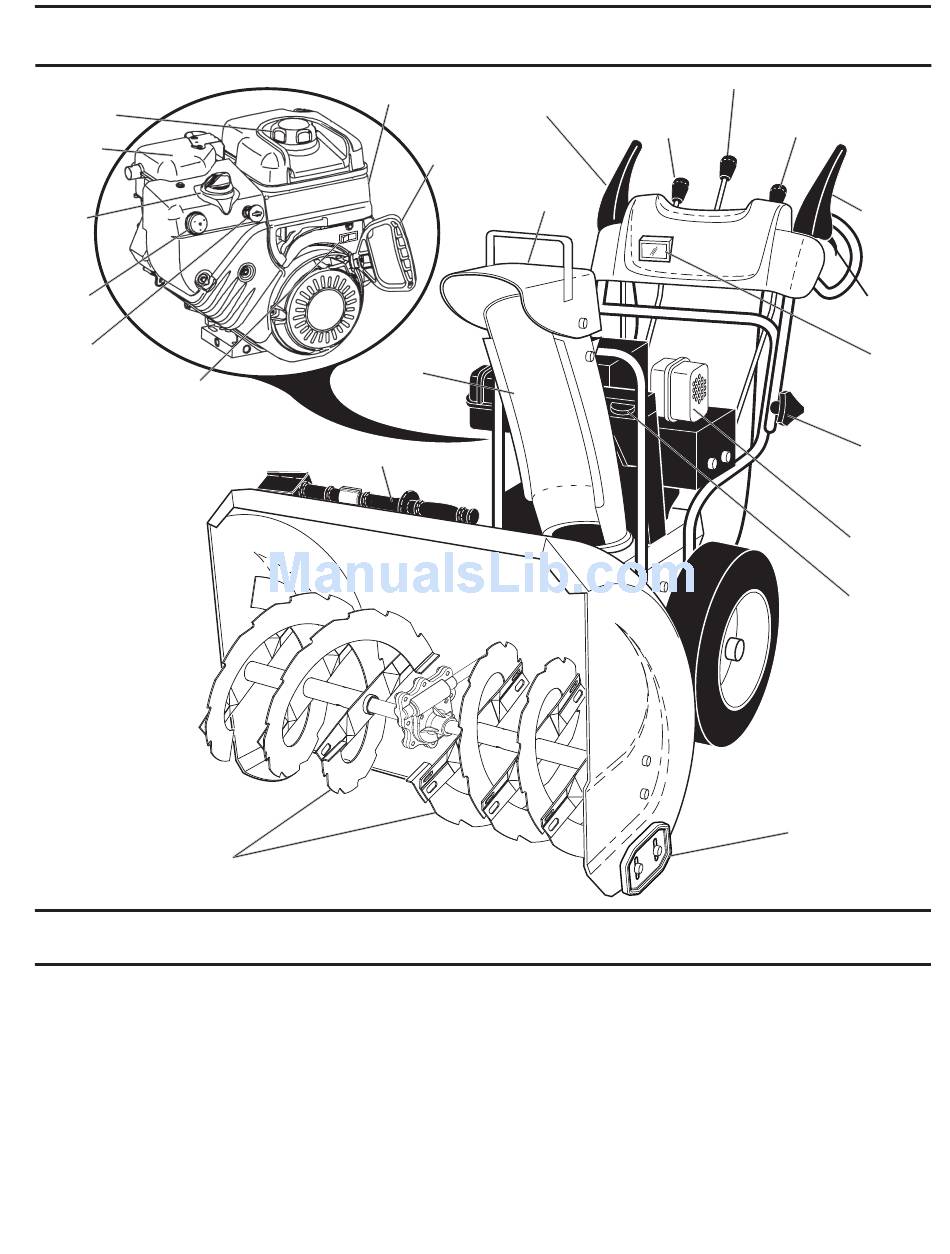

NOTE: ITEMS ABOVE
ARE SHOWN IN
LOCATION ON THE
VARY WITH THE
ENGINE ON YOUR
MEETS A.N.S.I. SAFETY REQUIREMENTS
Our snow throwers conform to the standards of the American National Standards Institute.
Toolbox - used to store spare shear bolts, locknuts and
Safety ignition key - must be inserted for the engine to
start and run. Remove when snow thrower is not in use.
Electric start button – used for starting the engine.
Recoil (auxiliary) starter handle – used for start ing the
Primer - pumps additional fuel from the carburetor to the
cylinder for use when starting a cold engine.
Throttle/engine control - used to se lect either FAST or
SLOW engine speed and to STOP the engine.
Choke control - used for starting a cold engine.
LH and RH turn triggers - used to steer the snow thrower.
DE FLEC TOR
DISCHARGE CHUTE CONTROL LEVER
CON TROL LEVER
ON / OFF switch - used to STOP the engine.
Drive speed control lever - used to select forward or
reverse motion and speed of snow thrower.
Traction drive control lever - used to engage power-
pro pelled for ward or reverse motion of snow thrower.
Auger control lever - used to engage auger motion (throw
Discharge chute control lever - used to change the di rec-
tion the snow is thrown.
Skid plate - used to adjust height of scraper bar from the
Deflector remote control lever - used to change the
dis tance the snow is thrown.
